Detection Dynamic Weighing System Maximum Single Tire 40T
| Place of Origin | Zhenghou`China |
|---|---|
| Brand Name | Hengliang |
| Certification | ISO, CE |
| Model Number | ZQS-40-SY |
| Minimum Order Quantity | 1 SET |
| Price | USD 20000-35000/SET |
| Packaging Details | Wooden box |
| Delivery Time | 5~7days |
| Payment Terms | T/T |
| Supply Ability | 30 SET/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | WIM System | Working Power | 220VAC |
|---|---|---|---|
| Weight Error | 3%~10% | Speed Range | 0.5~100km/h |
| Axle Load | 40T (single Axle) | Single Axle Max Overload | 60T |
| MTBF | ≥20000h | Temperature | -45~+80℃ |
| Highlight | Detection Dynamic Weighing System,220VAC WIM System,20000 h WIM System |
||
Product Description
Maximum Single Tire 40T Weight Detection Dynamic Weighing System
Product Description
Establish an overrun dynamic fine inspection system based on computer network to automatically monitor illegal and out of gauge transportation of vehicles, realize 24-hour freight vehicle transportation monitoring, form a powerful deterrent, focus on solving the three major problems of shortage of overload control staff, difficulty in obtaining evidence, and safety of overload control, and reduce the rate of out of gauge vehicle transportation.
1. Off site inspection
Use the off-site detection equipment to obtain the total weight of vehicle and cargo, the number of vehicle axles, speed, and axle load data; Use the vehicle license plate recognition system (i.e. snapshot facility) to obtain the vehicle license plate information and identify the license plate; The license plate and overrun information shall be quickly transmitted to the LED screen for display, and the vehicle driver shall be informed in time.

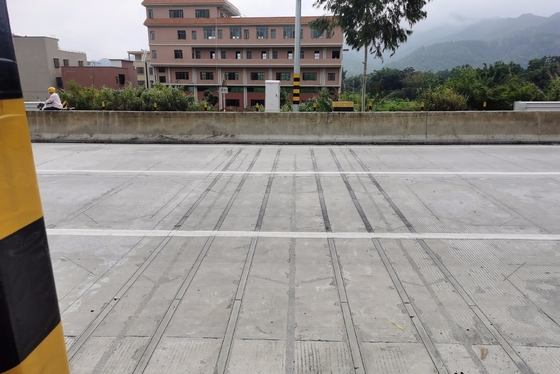

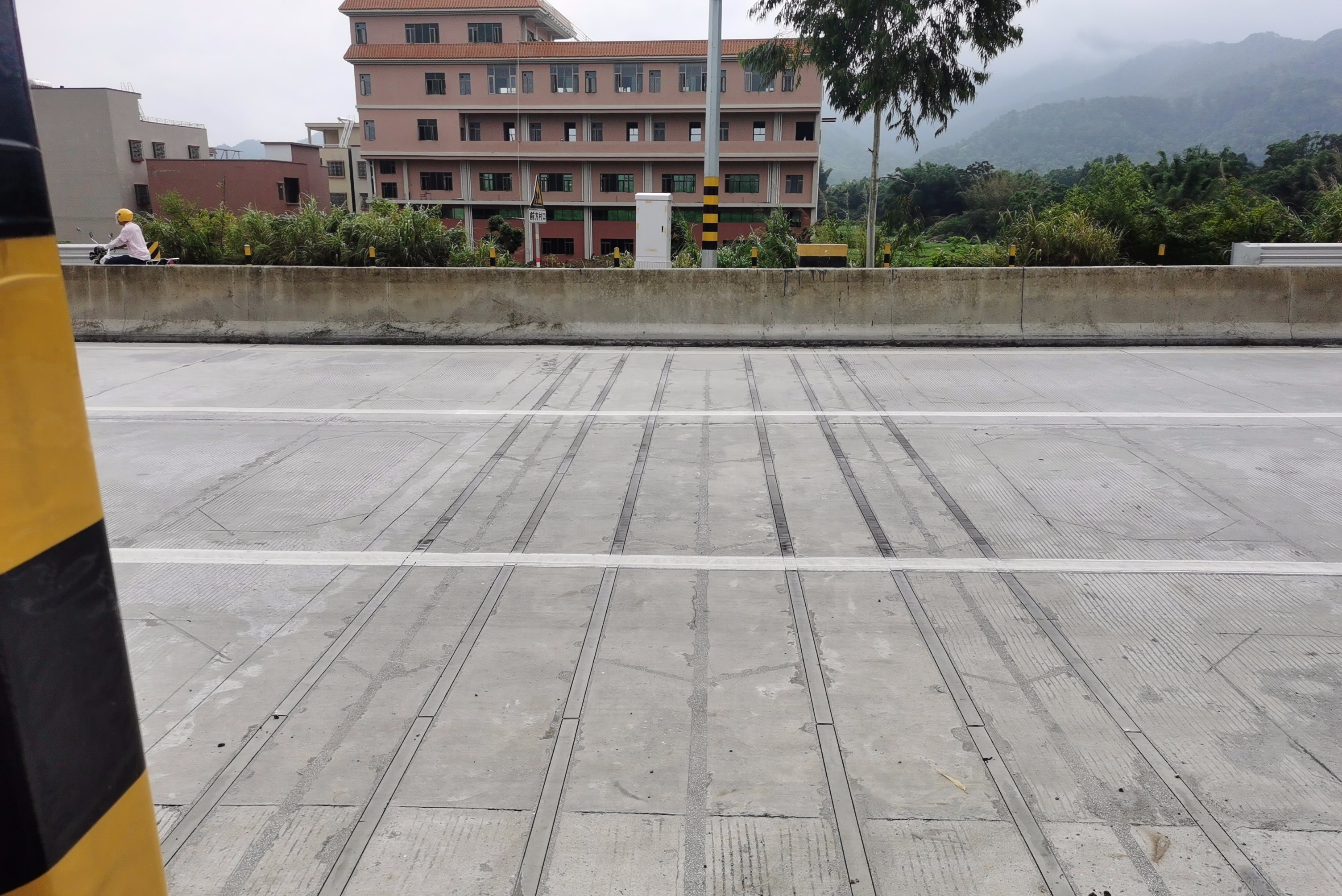

2. Full width pavement seamless detection
It is very common for highway vehicles to cross the lane or drive against the lane line during normal driving. In order to avoid detection, out of gauge vehicles will deliberately use the method of low-speed edging and pressing the sensor seam to drive, so that part of the tires leave the weighing carrier, making the data inaccurate to avoid detection. The weighing equipment can accurately weigh the vehicles that cross the lane and the vehicles that press the line, with the error not exceeding ± 5%.
Product Parameters
| Weighing accuracy | 90%~97% |
| Single axle load | 40Ton |
| Single axle max Load | 60Ton |
| Speed | 0.5~100km/h； |
| Speed error | ≤±1km/h |
| Wheelbase error | ≤±100mm |
| Working voltage | AC 220V 50Hz |
| Output information | Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time |
| Maximum number of lanes | 8 lanes |
| Data storage | It can store up to 10000 pieces of vehicle information data |
| data interface | RJ485 |
| work environment | -45℃～80℃,0～95% |
| Confidence | ≥95% |
