Dynamic Quartz Dynamometry Weighing Sensor System Non Stop Unattended

Basic Information
Place of Origin: Zhenghou`China
Brand Name: Hengliang
Certification: ISO
Model Number: ZQS-40-SY
Minimum Order Quantity: 1 SET
Price: USD 20000-35000/SET
Packaging Details: Wooden box
Delivery Time: 5~7days
Payment Terms: T/T
Supply Ability: 30 SET/Month
Detail Information
Product Name: WIM System Working Voltage: AC 220V
Weighing Error: 3%~10% Speed Range: 0.5~100km/h
Single Axle Load: 40Ton Single Axle Max Overload: 60Ton
MTBF: ≥20000h Temperature: -45~+80℃
Highlight:

piezoelectric Weighing Sensor System

,

Dynamic Quartz Piezoelectric Weighing Sensor System

,

Non Stop Unattended Weighing Sensor System


Product Description

Dynamic Non-Stop Unattended Quartz Dynamometry Weighing Sensor System

Product Description



  • It has the function of dynamic detection and output of vehicle model, number of axles, axle weight and total weight of the whole vehicle.
  • It has the function of vehicle license plate recognition and output.
  • It has vehicle video recording and output functions.
  • It has the function of capturing and outputting vehicle images.
  • It has the functions of vehicle overrun information, notification, release and display.
  • It has vehicle speed and flow detection and output functions.
  • It has the function of detecting, judging and outputting abnormal driving behavior of freight vehicles.







Product Parameters

Weighing accuracy 90%~97%
Single axle load 40Ton
Single axle max Load 60Ton
Speed 0.5~100km/h;
Speed error ≤±1km/h
Wheelbase error ≤±100mm
Working voltage AC 220V 50Hz
Output information Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes 8 lanes
Data storage It can store up to 10000 pieces of vehicle information data
data interface RJ485
work environment -45℃~80℃,0~95%
Confidence ≥95%

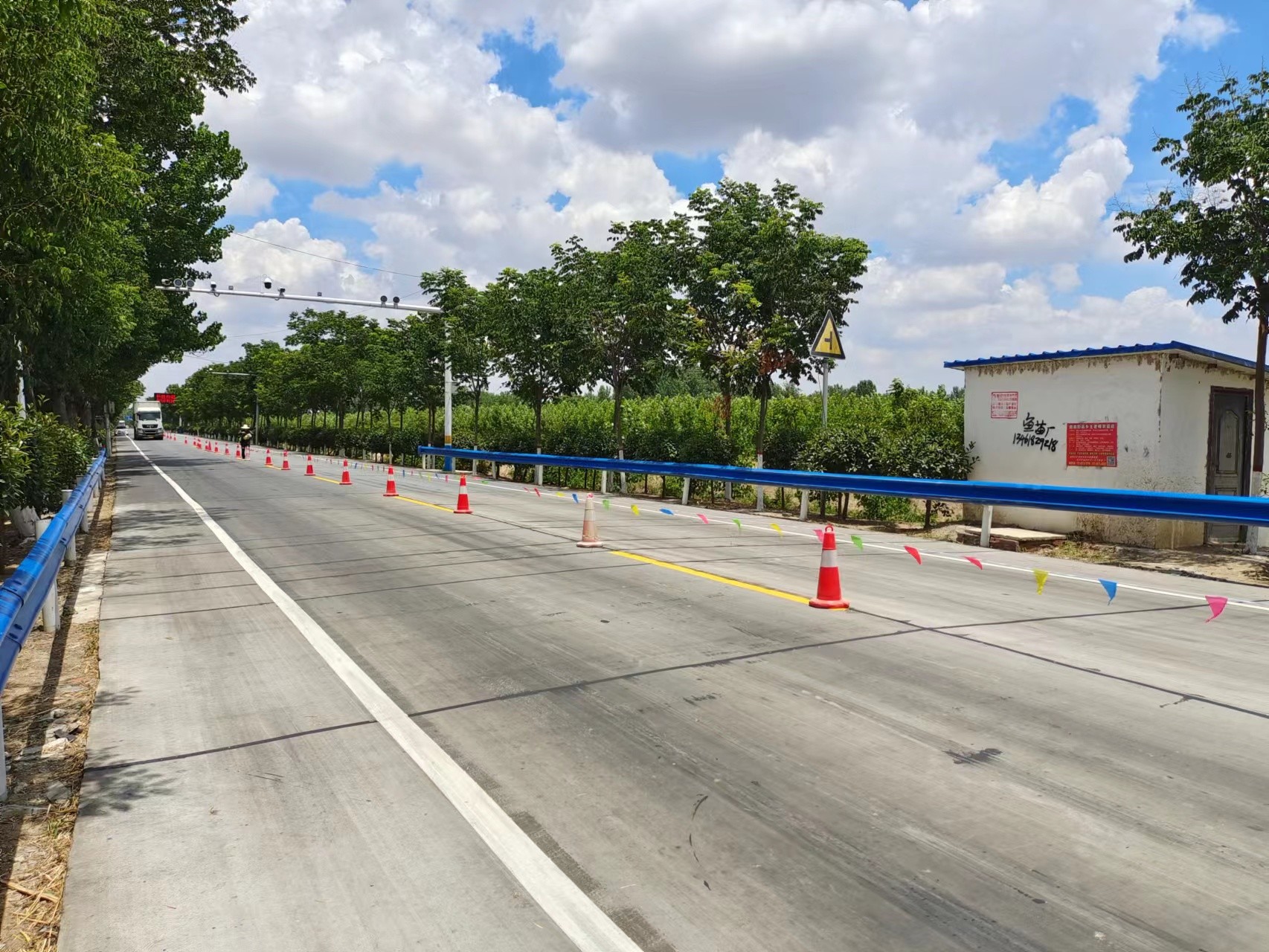

Project Case

Dynamic Quartz Dynamometry Weighing Sensor System Non Stop Unattended 0
