IP68 Quartz Weighing System Single Axle For WIM Protection Grade
| Place of Origin | Zhenghou`China |
|---|---|
| Brand Name | Hengliang |
| Certification | ISO |
| Model Number | ZQS-40-SY |
| Minimum Order Quantity | 1 SET |
| Price | USD 20000-35000/SET |
| Packaging Details | Wooden box |
| Delivery Time | 5~7days |
| Payment Terms | T/T |
| Supply Ability | 30 SET/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | WIM System | Voltage | VAC 220V |
|---|---|---|---|
| Weighing Error | 3%~10% | Speed Rate | 0.5~100km/h |
| Axle Load | 40Ton (single Axle) | Single Axle Max Overload | 60Ton |
| MTBF | ≥20000h | Temperature | -45~+80℃ |
| Highlight | Protection Grade Quartz WIM System,IP68 Quartz Weighing System,Quartz Weighing System Single Axle |
||
Product Description
Protection Grade IP68 Quartz Weighing System For WIM System
Product Description
- It has the function of dynamic detection and output of vehicle model, number of axles, axle weight and total weight of the whole vehicle.
- It has the function of vehicle license plate recognition and output.
- It has vehicle video recording and output functions.It has the function of detecting, judging and outputting abnormal driving behavior of freight vehicles.
- It has the matching function of evidence collection information (detection time, detection point name, lane, license plate, vehicle type, number of axles, total weight, over limit, over limit rate, vehicle speed, image and video) of over limit freight vehicles, and the matching rate with over limit freight vehicles shall not be less than 95%.
Product Parameters
| Weighing accuracy | 90%~97% |
| Single axle load | 40Ton |
| Single axle max Load | 60Ton |
| Speed | 0.5~100km/h； |
| Speed error | ≤±1km/h |
| Wheelbase error | ≤±100mm |
| Working voltage | AC 220V 50Hz |
| Output information | Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time |
| Maximum number of lanes | 8 lanes |
| Data storage | It can store up to 10000 pieces of vehicle information data |
| data interface | RJ485 |
| work environment | -45℃～80℃,0～95% |
| Confidence | ≥95% |

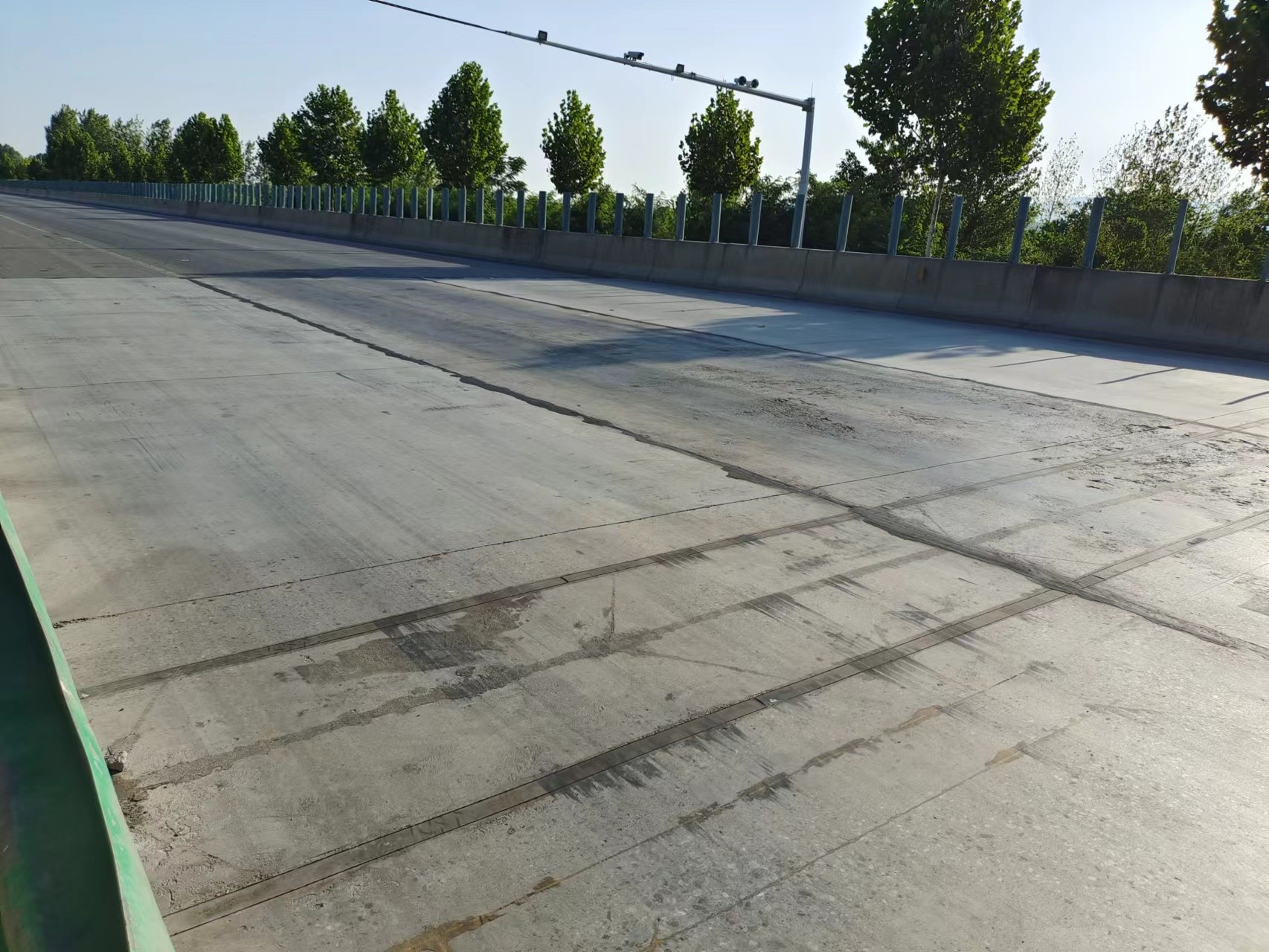

Project Case
