Dynamic Unattended Weighing System Quartz Dynamometry Sensor

Basic Information
Place of Origin: Zhenghou`China
Brand Name: Hengliang
Certification: ISO
Model Number: ZQS-40-SY
Minimum Order Quantity: 1 SET
Price: USD 20000-35000/SET
Packaging Details: Wooden box
Delivery Time: 5~7days
Payment Terms: T/T
Supply Ability: 30 SET/Month
Detail Information
System Name: WIM System Power: 220 VAC
Weighing Error: 3%~10% Speed: 0.5~105km/h
Single Axle Load: 40Ton Single Axle Max Overload: 60Ton
MTBF: ≥20000h Temperature: -45~+80℃
Highlight:

Dynamic Unattended Weighing System

,

Piezoelectric Sensor Unattended Weighing System

,

Piezoelectric Sensor unattended truck scale system


Product Description

Quartz Dynamometry Sensor, Dynamic Unattended Weighing System, WIM System

Product Description

  The practice in recent years has proved that the overload control work has played a positive role in effectively ensuring the service life of bridges and pavements and reducing traffic accidents.

The overload control system mainly implements the principles of "high quality" and "intelligence". While meeting the application functions, the system has the ability of automatic interception and automatic processing. While reducing the workload of staff as much as possible, it meets the needs of system functions.



Product Parameters

Weighing accuracy 90%~97%
Single axle load 40Ton
Max Load 60Ton
Speed 0.5~105km/h;
Speed error ≤±1km/h
Wheelbase error ≤±100mm
Working voltage AC 220V 50Hz
Output information Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes 8 lanes
Data storage It can store up to 10000 pieces of vehicle information data
data interface RJ485
work environment -45℃~80℃,0~95%
Confidence ≥95%

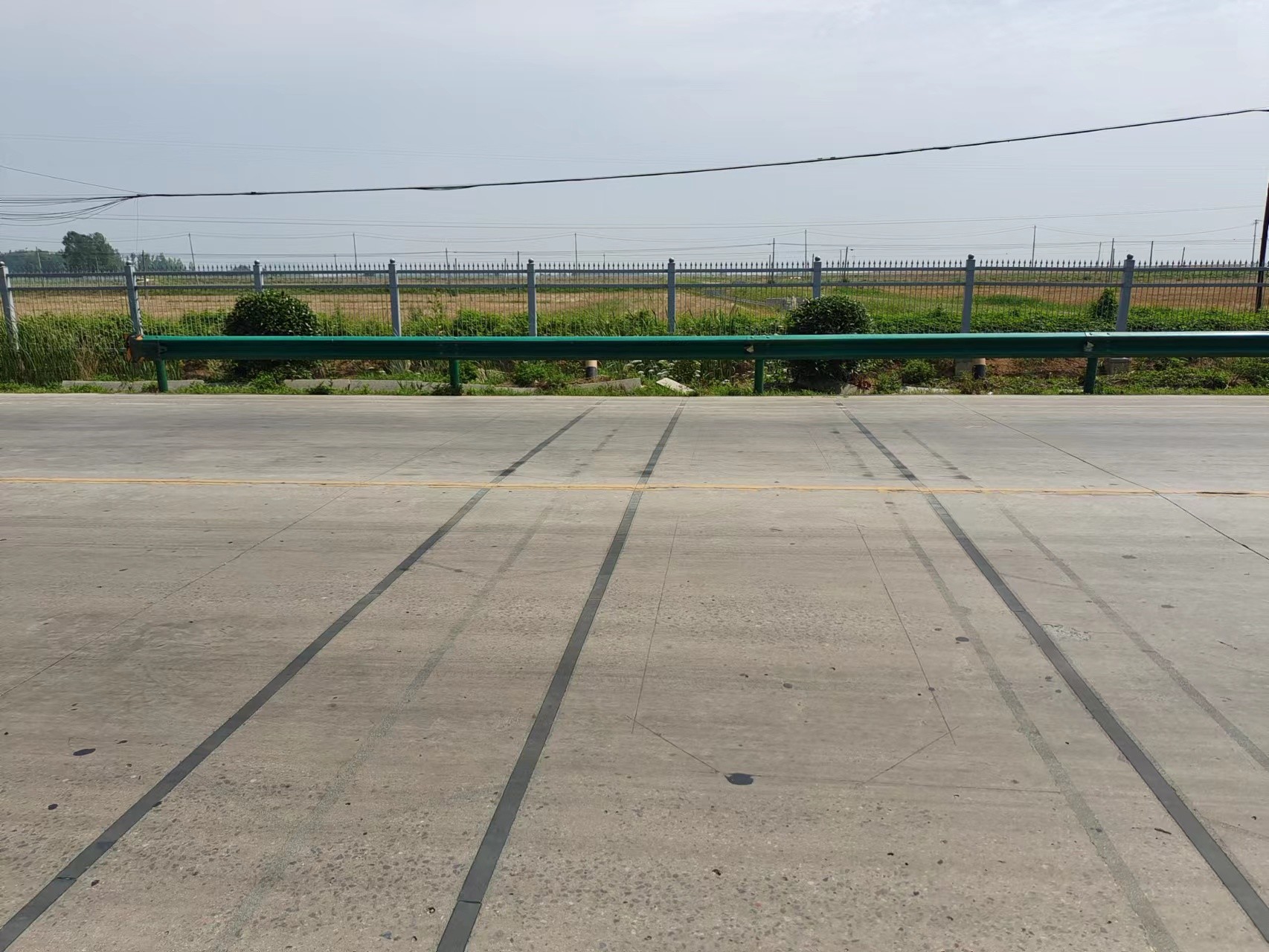

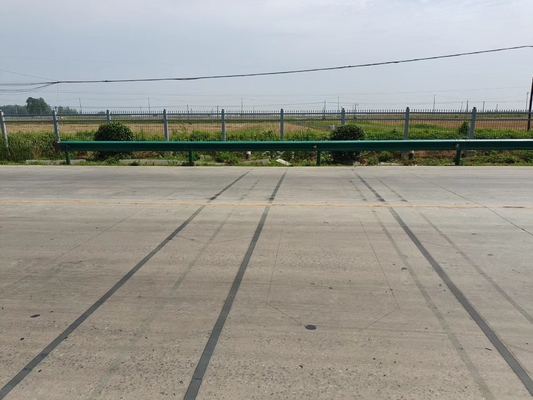

Project Case

Dynamic Unattended Weighing System Quartz Dynamometry Sensor 0
