Highway Overrun Management Punishment System , Non Stop Weighing Detection System

Name: Highway Overrun Management Punishment System , Non Stop Weighing Detection System
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                    Highway Management Punishment System, Non Stop Weighing Detection System, Highway Weighing Detection System


Type:	WIM System	Working Voltage:	220 VAC
Wieghing Error:	3%~10%	Speed Rate:	0.5~105km/h
Single Axle Load:	40Ton	Single Axle Max Overload:	60Ton
MTBF:	≥20000h	Working Temperature:	-45~+80℃

Type:	WIM System
Working Voltage:	220 VAC
Wieghing Error:	3%~10%
Speed Rate:	0.5~105km/h
Single Axle Load:	40Ton
Single Axle Max Overload:	60Ton
MTBF:	≥20000h
Working Temperature:	-45~+80℃

Product Description

Highway Overrun Management Punishment System, Non-Stop Weighing Detection System

Product Description

1. The automatic separation of vehicles can accurately realize the separation of special vehicles such as trailers, and ensure the one-to-one correspondence between weighing and testing data and vehicles.

2. Form complete vehicle weighing information, including axle type, axle weight, total axle and vehicle weight, etc.

3. Record the vehicle passing time.

4. The weighing information is accurately and completely transmitted to the industrial computer through the data interface.

5. It is capable of power on self-test, timed self-test when idle, zero point correction and automatic temperature compensation.

6. Digital instrument display panel can be used for debugging and detection, and the axle type, axle weight and vehicle speed of each axle can be displayed on the panel.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

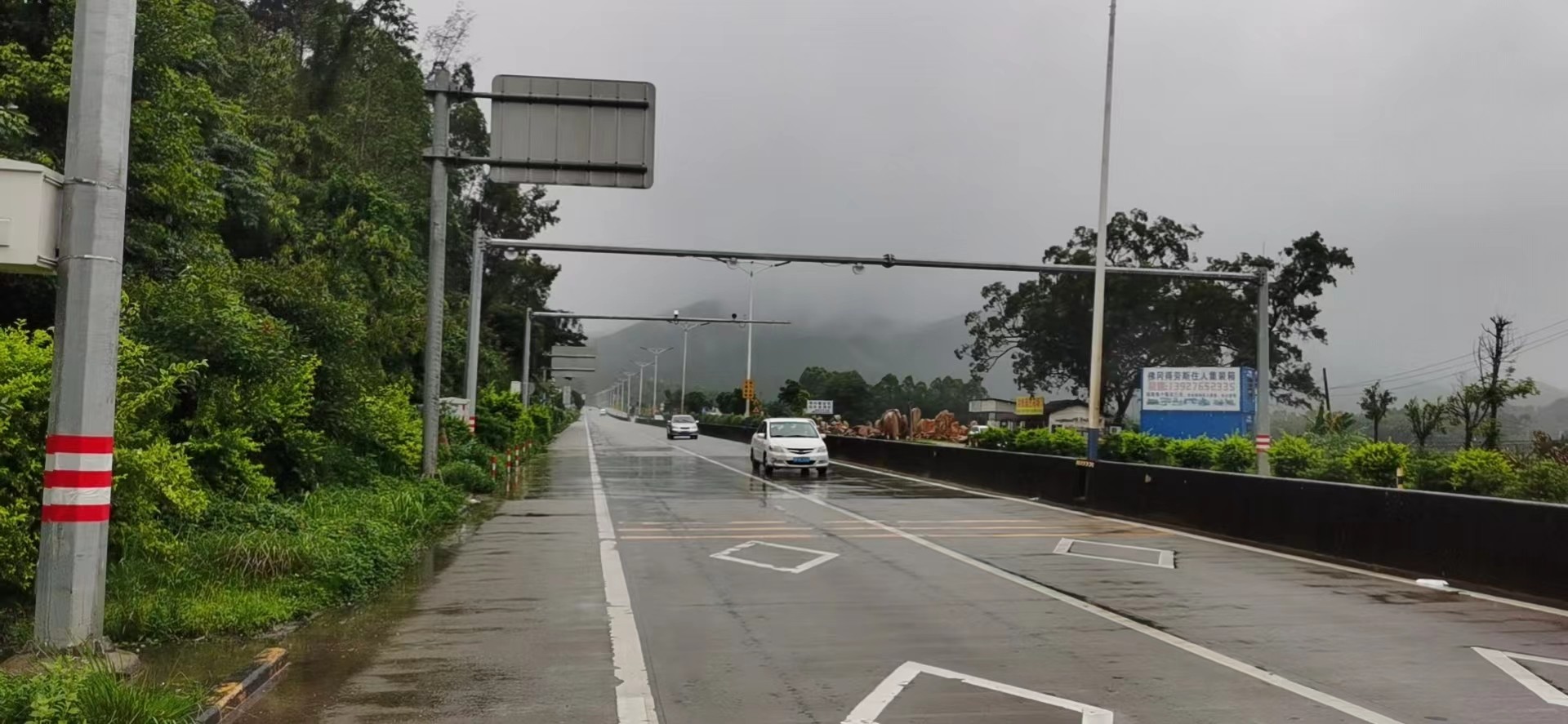

Project Case
