High Concealment High Speed WIM System Truck Weighing Bridge
| Place of Origin | Zhenghou`China |
|---|---|
| Brand Name | Hengliang |
| Certification | ISO |
| Model Number | ZQS-40-SY |
| Minimum Order Quantity | 1 SET |
| Price | USD 20000-35000/SET |
| Packaging Details | Wooden box |
| Delivery Time | 5~7days |
| Payment Terms | T/T |
| Supply Ability | 30 SET/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | WIM System | Working Power | AC 220V |
|---|---|---|---|
| Accuracy | 90%~97% | Speed Rate | 0.5~105km/h |
| Axle Load | 40T (single Axle) | Single Axle Max Overload | 60T |
| MTBF | ≥20000h | Temperature | -45~+80℃ |
| Highlight | High Speed WIM System,High Concealment WIM System,High Concealment Truck Weighing Bridge |
||
Product Description
High Concealment Truck Weighing Bridge & High Speed WIM System
Product Description
- Rapid construction, easy to install
Minimum slotted work amount on road, minimal structural damage to the road surface. Disposable casting by pecial rubber, hardening 2 to 3 hours, the road can be open to traffic the next day. - Superior applicability for particular lane
As for special lane, it is no need to reconstruct road, the quartz piezoelectric weighing sensor can be fully applicable to a wide angle longitudinal, transverse slope, sharp bends, and the lane or bridge not easy to be drained.
Product Parameters
| Weighing accuracy | 90%~97% |
| Single axle load | 40Ton |
| Max Load | 60Ton |
| Speed | 0.5~105km/h； |
| Speed error | ≤±1km/h |
| Wheelbase error | ≤±100mm |
| Working voltage | AC 220V 50Hz |
| Output information | Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time |
| Maximum number of lanes | 8 lanes |
| Data storage | It can store up to 10000 pieces of vehicle information data |
| data interface | RJ485 |
| work environment | -45℃～80℃,0～95% |
| Confidence | ≥95% |

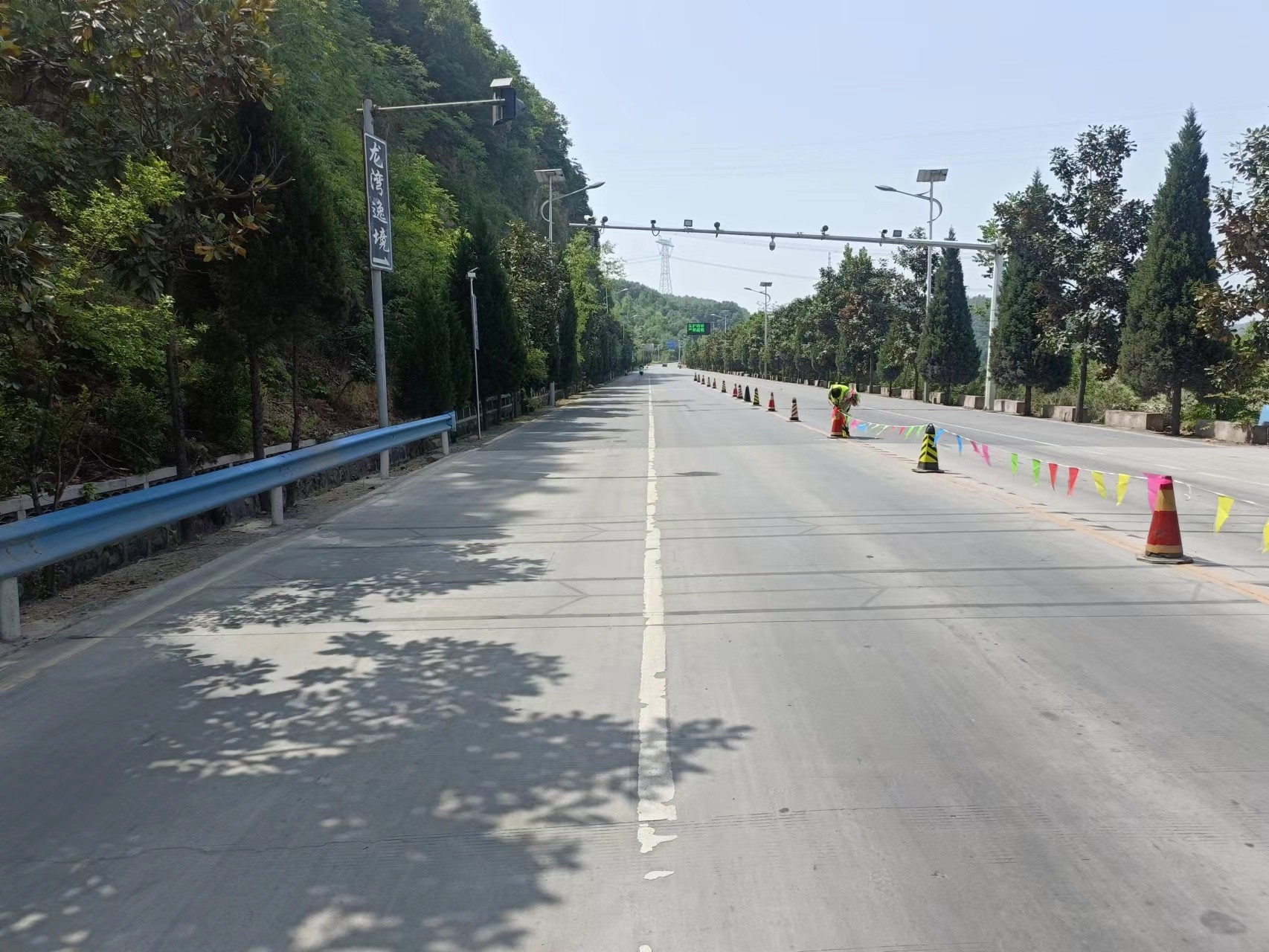

Project Case
