90% ~ 97% Weighing Accuracy WIM System Dynamic Truck Scale
| Place of Origin | Zhenghou`China |
|---|---|
| Brand Name | Hengliang |
| Certification | ISO |
| Model Number | ZQS-40-SY |
| Minimum Order Quantity | 1 SET |
| Price | USD 20000-35000/SET |
| Packaging Details | Wooden box |
| Delivery Time | 5~7days |
| Payment Terms | T/T |
| Supply Ability | 30 SET/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | WIM System | Working Power | AC 220V |
|---|---|---|---|
| Weighing Accuracy | 90%~97% | Speed | 0.5~105km/h |
| Single Axle Load | 40Ton | Single Axle Max Overload | 60Ton |
| MTBF | ≥20000h | Temperature | -45~+80℃ |
| Highlight | 90% WIM System,97% WIM System,90% Dynamic Truck Scale |
||
Product Description
90% ~ 97% Weighing Accuracy Dynamic Truck Scale & WIM System
Product Description
- Improve highway traffic efficiency, make up for the lack of police force and expand the scope of control: the off-site law enforcement detection system has a high degree of automation, less dependence on manpower and fast detection speed. Off-site law enforcement avoids the direct conflict between the police and the people.
- There are few human interference factors in the process, and the evidence is strong, so as to promote fair law enforcement: the system is fully automatic detection, data is automatically uploaded, and problems such as artificially modifying data and cattle leading the way are eliminated.
Product Parameters
| Weighing accuracy | 90%~97% |
| Single axle load | 40Ton |
| Max Load | 60Ton |
| Speed | 0.5~105km/h； |
| Speed error | ≤±1km/h |
| Wheelbase error | ≤±100mm |
| Working voltage | AC 220V 50Hz |
| Output information | Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time |
| Maximum number of lanes | 8 lanes |
| Data storage | It can store up to 10000 pieces of vehicle information data |
| data interface | RJ485 |
| work environment | -45℃～80℃,0～95% |
| Confidence | ≥95% |

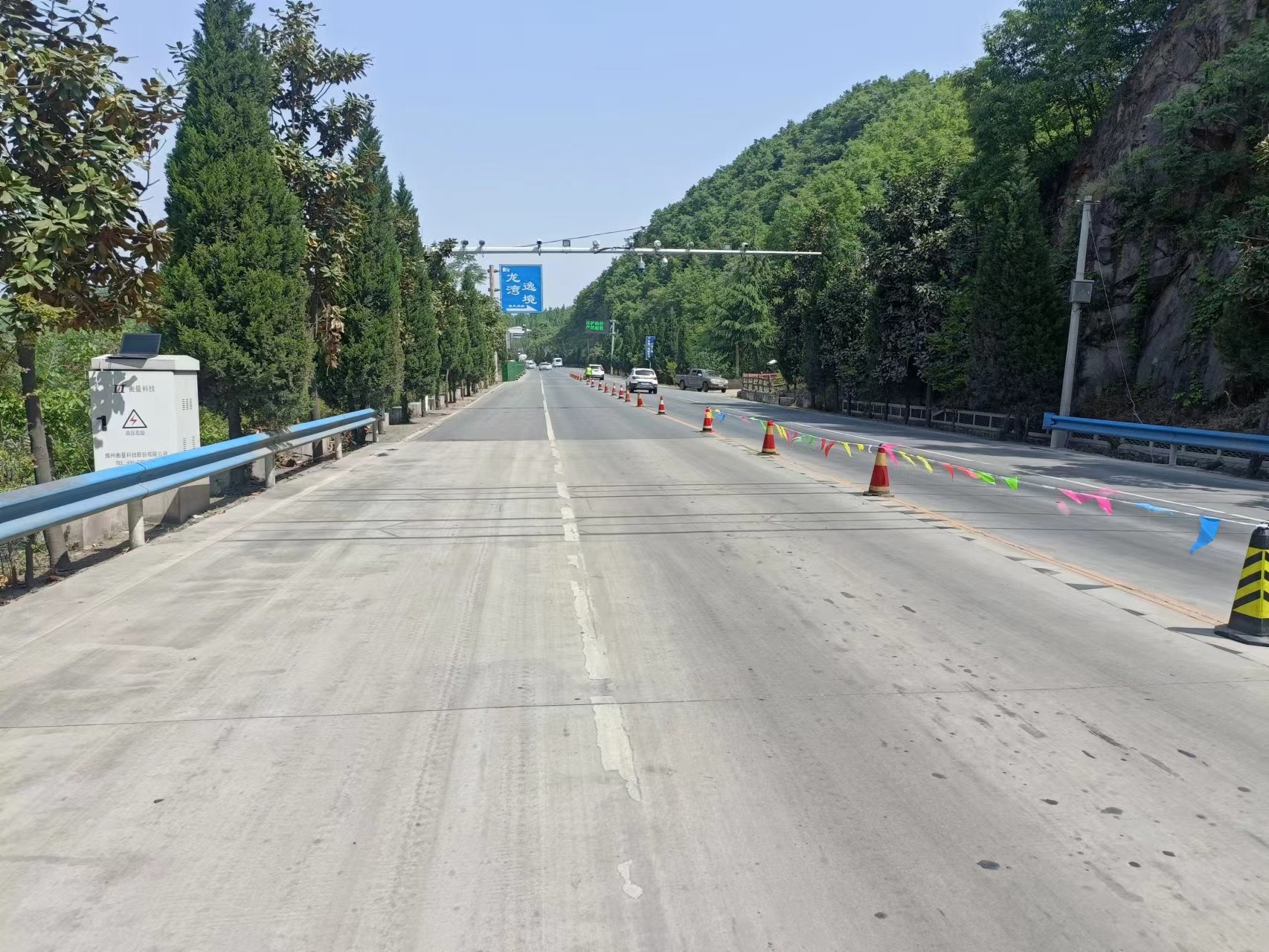

Project Case
