Unattended In Motion Axle Scale Dynamic Weighing System

Name: Unattended In Motion Axle Scale Dynamic Weighing System
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                    Unattended In Motion Axle Scale, Dynamic In Motion Axle Scale, Unattended Dynamic Weighing System


Type:	In Motion Axle Scale	Voltage:	AC 220V
Accuracy:	90%~97%	Speed:	0.5~105km/h
Single Axle Load:	40Ton	Single Axle Max Overload:	60Ton
MTBF:	≥20000h	Temperature:	-45~+80℃

Type:	In Motion Axle Scale
Voltage:	AC 220V
Accuracy:	90%~97%
Speed:	0.5~105km/h
Single Axle Load:	40Ton
Single Axle Max Overload:	60Ton
MTBF:	≥20000h
Temperature:	-45~+80℃

Product Description

Unattended Dynamic Weighing System & In Motion Axle Scales

Product Description

This mode is a good solution for the treatment of over limit and overload. It has the characteristics of high detection efficiency and strong detection pertinence. It not only reduces the damage pressure on the pavement design bearing standard and the requirements for normal use of the road, but also reduces the vehicle performance caused by overload and the driving safety caused by it.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

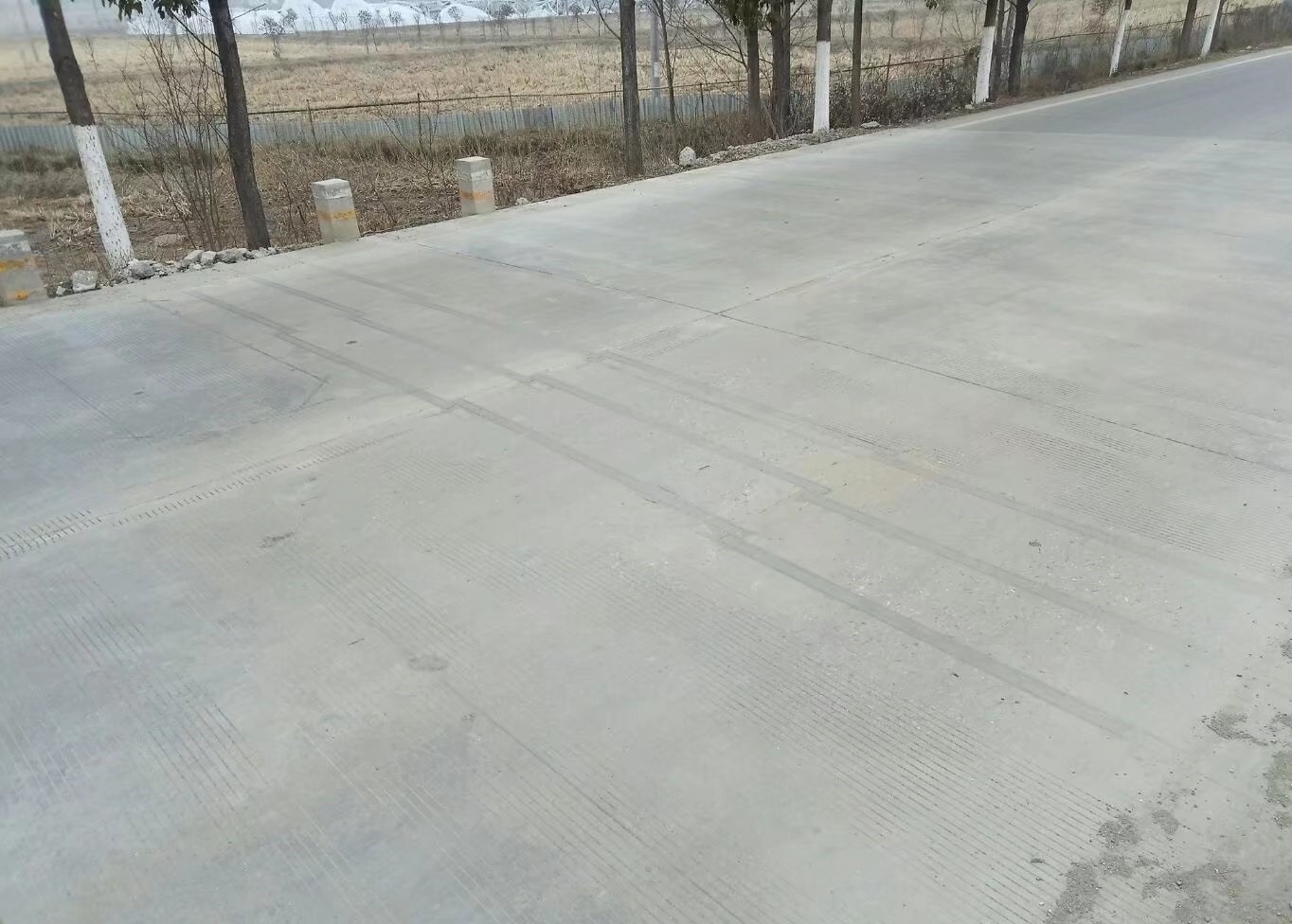

Project Case

Unattended In Motion Axle Scale Dynamic Weighing System 0
