Off Site Dynamic Weighing Management System - Truck Overload Treatment

Name: Off Site Dynamic Weighing Management System - Truck Overload Treatment
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                    Off Site Dynamic Weighing Management System, Truck Dynamic Weighing Management System, Off Site dynamic weighing system


Type:	In Motion Axle Scale	Voltage:	AC 220V 50Hz
Error:	3%~10%	Speed:	0.5~105km/h
Single Axle Load:	40Ton	Max Overload Capacity:	60Ton (single Axle)
MTBF:	≥20000h	Temperature:	-45~+80℃

Type:	In Motion Axle Scale
Voltage:	AC 220V 50Hz
Error:	3%~10%
Speed:	0.5~105km/h
Single Axle Load:	40Ton
Max Overload Capacity:	60Ton (single Axle)
MTBF:	≥20000h
Temperature:	-45~+80℃

Product Description

Off Site Dynamic Weighing Management System - Truck Overload Treatment

Product Description

The unattended and non-stop high-speed dynamic weighing system governs the overload detection mode, detects the weight of cargo vehicles running normally on the carriageway, dynamically monitors whether the vehicle is overloaded according to the load limit set by the system, records and outputs the overload value and relevant data, and at the same time, a variable information board is configured on the F-pole in front of the vehicle, Automatically identify the vehicle license plate number and enter it into the management system, and prompt the overload vehicle alarm signal. Cooperate with the traffic signs on the roadside to guide illegal vehicles into the exit channel or static fine inspection management station, so as to effectively eliminate the entry of out of gauge vehicles. Provide strong technical support for the implementation of dynamic comprehensive overload management.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

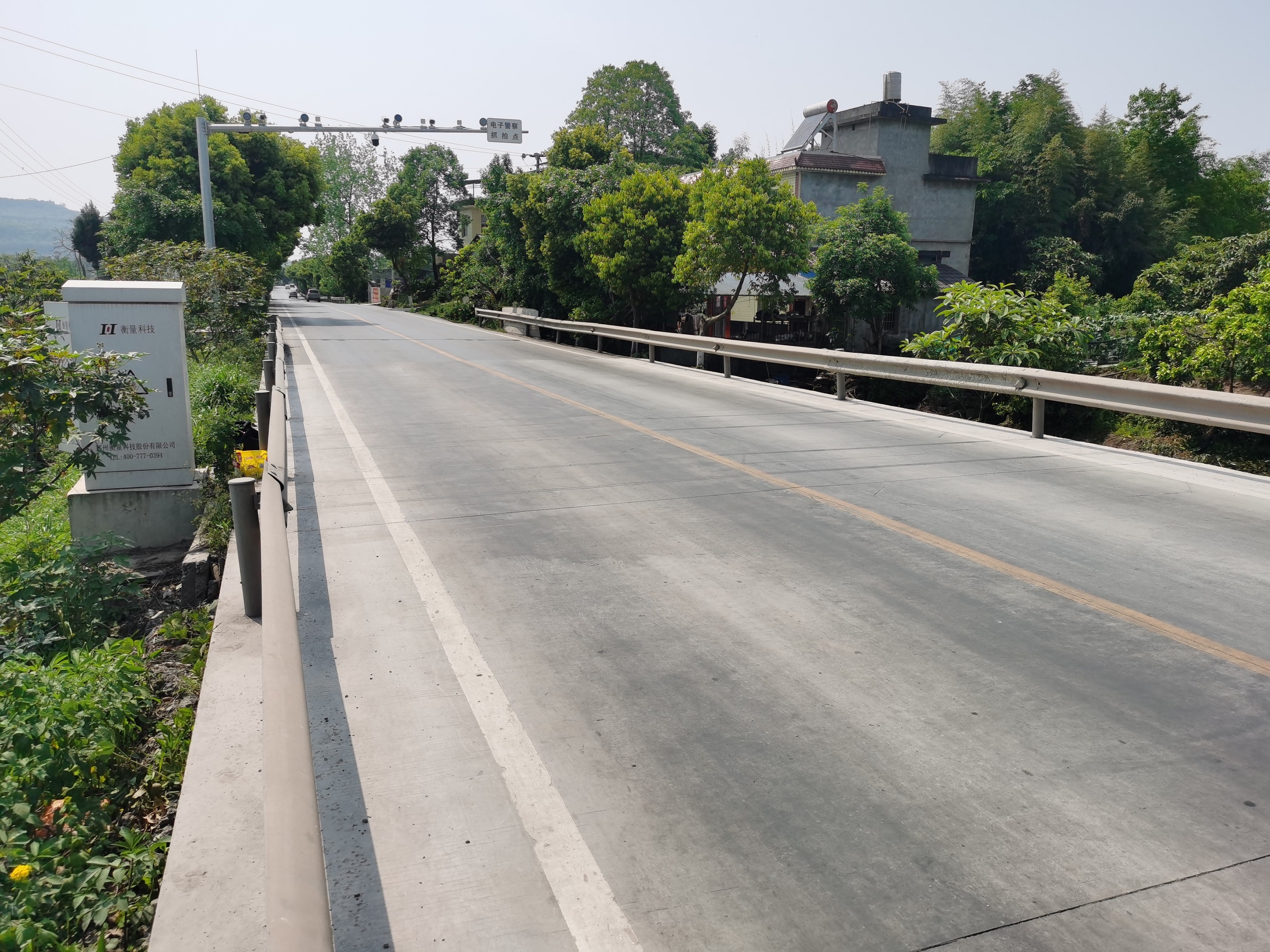

Project Case

Off Site Dynamic Weighing Management System - Truck Overload Treatment 0
