Highway Truck Weigh In Motion Axle Scale 40000kg Single Axle

Name: Highway Truck Weigh In Motion Axle Scale 40000kg Single Axle
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    Highway Truck In Motion Axle Scale, 40000kg Weigh In Motion Axle Scale, Highway 40000kg truck axle scales


Type:	In Motion Axle Scale	Power:	AC 220V
Weighing Error:	3%~10%	Speed Rate:	0.5~105km/h
Single Axle Load:	40Ton	Max Single Axle Load:	60Ton
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Level:	IP68

Type:	In Motion Axle Scale
Power:	AC 220V
Weighing Error:	3%~10%
Speed Rate:	0.5~105km/h
Single Axle Load:	40Ton
Max Single Axle Load:	60Ton
Division Value:	50kg
MTBF:	≥20000h
Temperature Range:	-45~+80℃
Protection Level:	IP68

Product Description

Quartz Axle Load Weighing System For Highway Vehicles & 40000kg Single Axle

Product Function

The full-automatic detection point can automatically detect the overloaded vehicle and the following data of the vehicle at the same time:

Picture of the whole vehicle, close-up picture of the front face, license plate number, single axle load, number of axles, axle group weight, total vehicle weight, axle spacing, total wheelbase, vehicle length, vehicle speed, traffic flow, vehicle spacing, driving direction, model, time and date.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

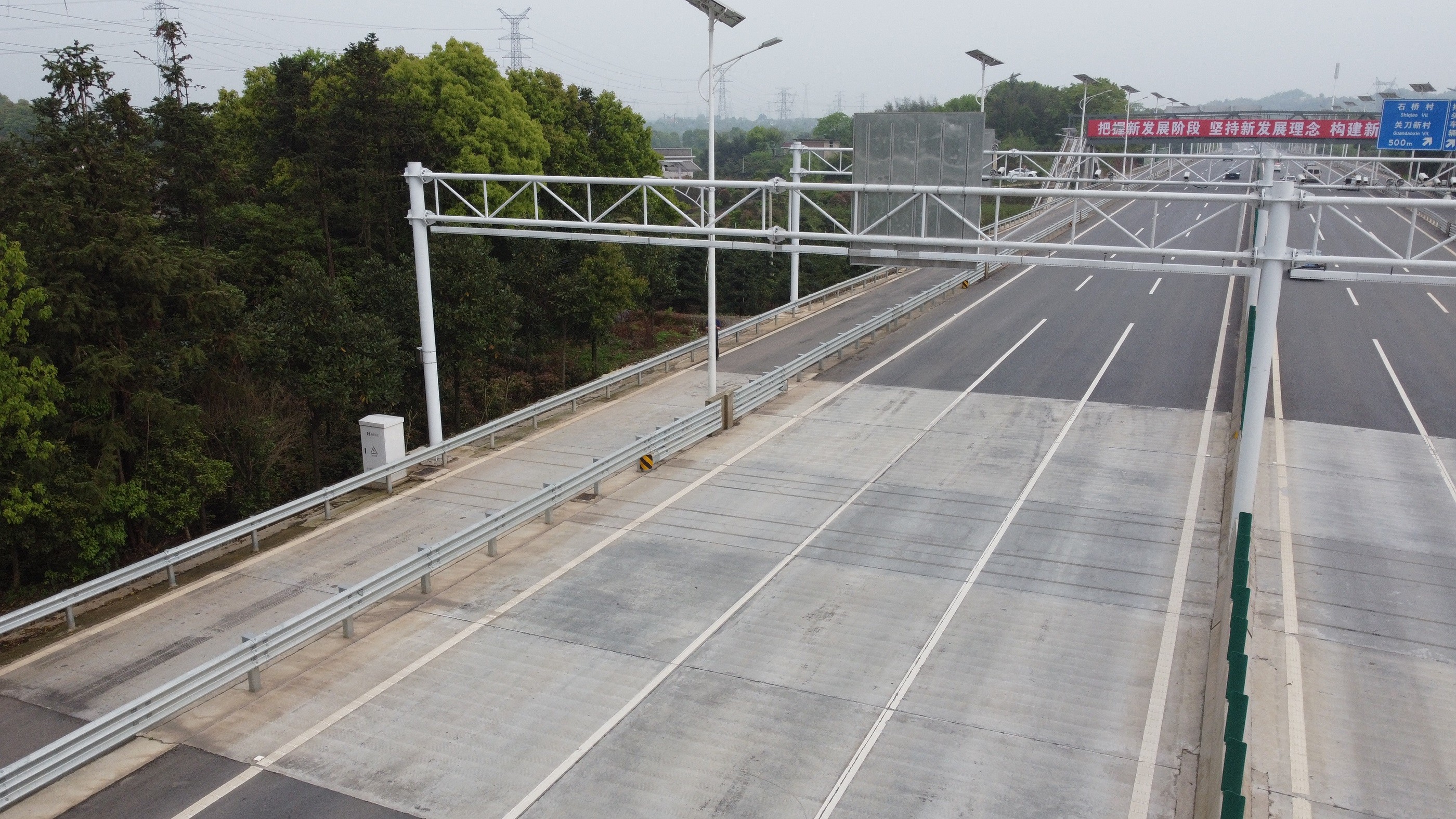

Project Case

Highway Truck Weigh In Motion Axle Scale 40000kg Single Axle 0
