60T In Motion Axle Scale For Toll Station Weight In Motion System

Name: 60T In Motion Axle Scale For Toll Station Weight In Motion System
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    60T In Motion Axle Scale, Toll Station Weight In Motion System, Toll Station In Motion Axle Scale


Name:	In Motion Axle Scale	Voltage:	AC 110~220V
Weighing Accuracy:	90%~97%	Speed Rate:	0.5~105km/h
Single Axle Load Rate:	0~40T	Max Load:	60T (single Axle)
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Level:	IP68

Name:	In Motion Axle Scale
Voltage:	AC 110~220V
Weighing Accuracy:	90%~97%
Speed Rate:	0.5~105km/h
Single Axle Load Rate:	0~40T
Max Load:	60T (single Axle)
Division Value:	50kg
MTBF:	≥20000h
Temperature Range:	-45~+80℃
Protection Level:	IP68

Product Description

High Speed Dynamic Axle Load Weighing System & 40 Ton Single Axle

Product Function

The system applies vehicle dynamic weighing technology and automatic license plate recognition technology. The sensor and vehicle inspection coil for detecting vehicle weight are installed under the road, and the high-definition license plate camera is installed above the road lane. The system can simultaneously detect the model, speed, driving lane, weight, license plate number and other data of vehicles passing through the track. It is a favorable tool for monitoring vehicle overload and overrun.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

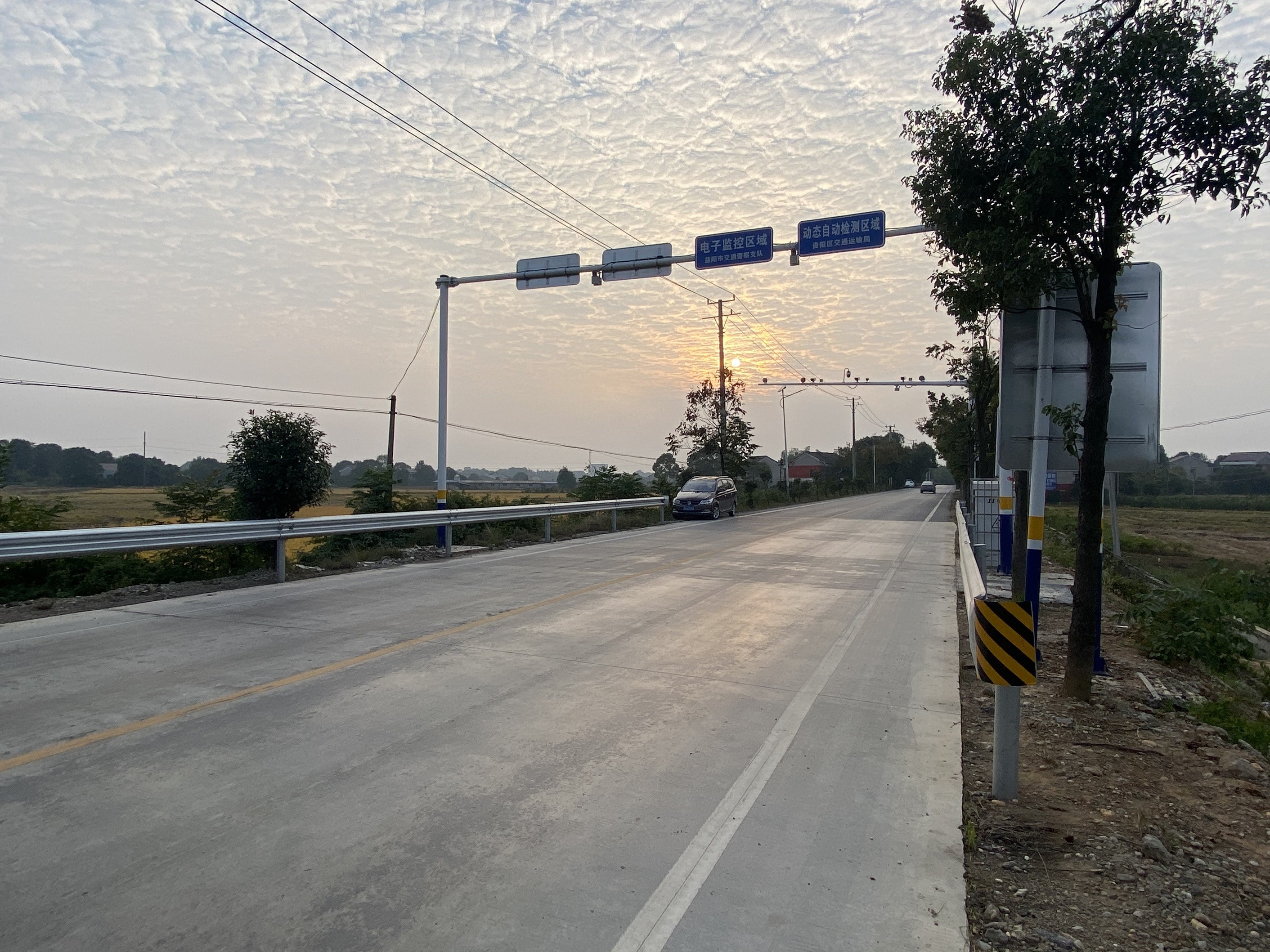

Project Case

60T In Motion Axle Scale For Toll Station Weight In Motion System 0
