Full Automatic Detection In Motion Axle Scale WIM System IP68
| Place of Origin | Zhenghou`China |
|---|---|
| Brand Name | Hengliang |
| Certification | ISO |
| Model Number | ZQS-40-SY |
| Minimum Order Quantity | 1 SET |
| Price | USD 20000-35000/SET |
| Packaging Details | Wooden box |
| Delivery Time | 5~7days |
| Payment Terms | T/T |
| Supply Ability | 30 SET/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | In Motion Axle Scale | Power | AC 110~220V |
|---|---|---|---|
| Weighing Accuracy | 90%~97% | Speed Rate | 0.5~105km/h |
| Single Axle Load | 40T | Max Single Axle Load | 60T |
| Division Value | 50kg | MTBF | ≥20000h |
| Temperature Range | -45~+80℃ | Protection Level | IP68 |
| Highlight | In Motion Axle Scale WIM System,In Motion Axle Scale WIM System IP68,Full Automatic Detection WIM System |
||
Product Description
0.5~105km/H High Speed For Vehicle Axle Load Detection System
Product Function
The establishment of full-automatic detection points by automatic detection equipment and Internet technology instead of personnel inspection points can reduce personnel allocation and management. At the same time, the detection of scientific and technological equipment can provide a means for scientific and civilized law enforcement.
Product Parameters
| Weighing accuracy | 90%~97% |
| Single axle load | 40Ton |
| Max Load | 60Ton |
| Speed | 0.5~105km/h； |
| Speed error | ≤±1km/h |
| Wheelbase error | ≤±100mm |
| Working voltage | AC 220V 50Hz |
| Output information | Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time |
| Maximum number of lanes | 8 lanes |
| Data storage | It can store up to 10000 pieces of vehicle information data |
| data interface | RJ485 |
| work environment | -45℃～80℃,0～95% |
| Confidence | ≥95% |

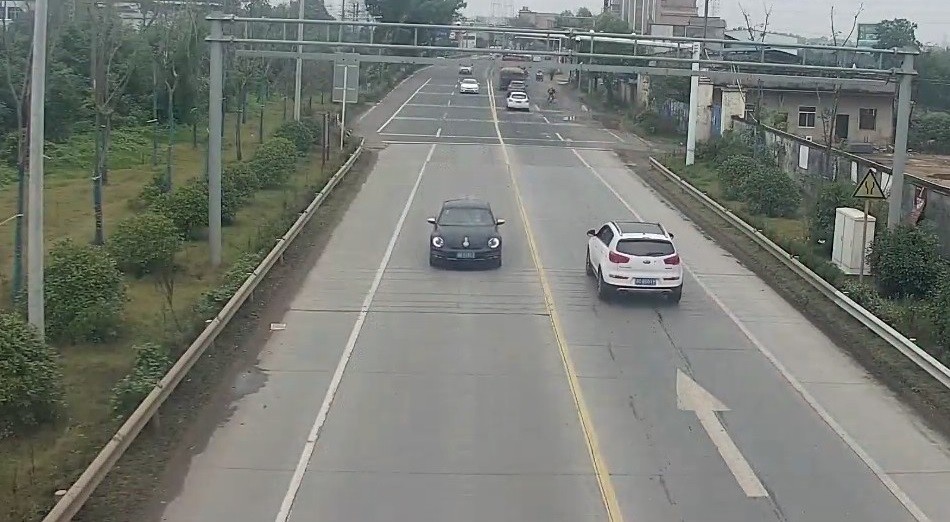

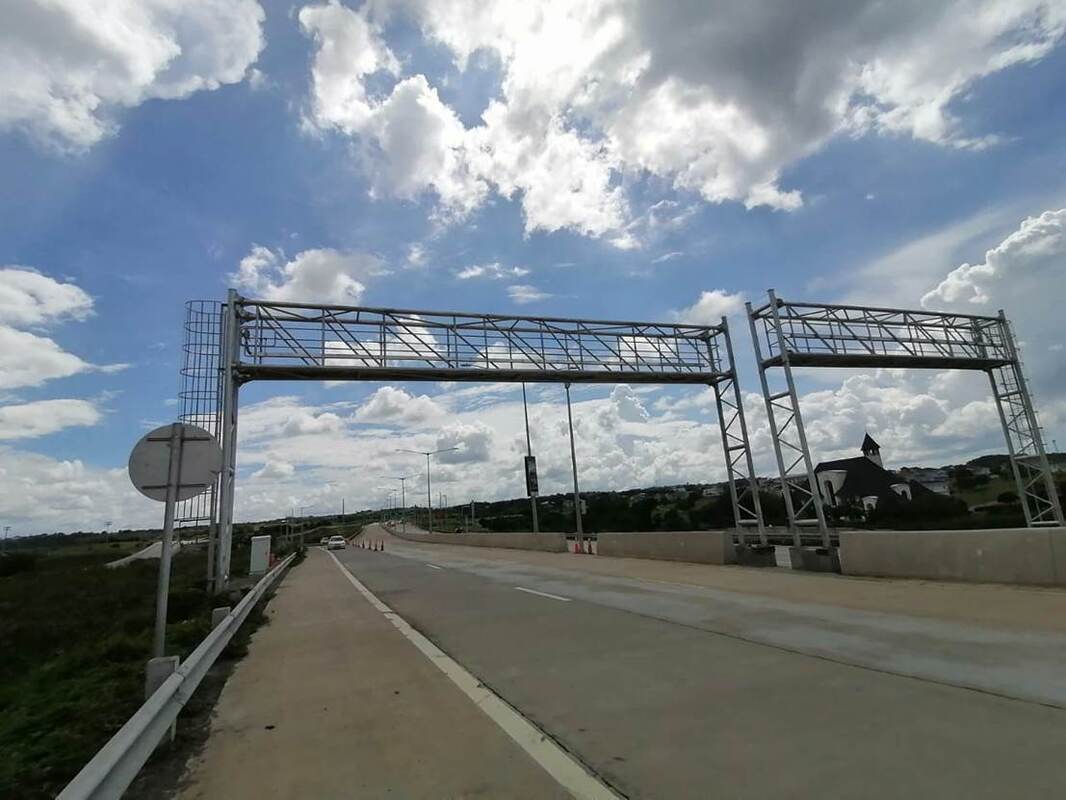

Project Case
