Max 60T WIM Scales Quartz Dynamometry Load Cell Truck Weighing System

Name: Max 60T WIM Scales Quartz Dynamometry Load Cell Truck Weighing System
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                    Max 60T WIM Scales, Piezoelectric Load Cell WIM Scales, Max 60T Truck Weighing System


Name:	In Motion Axle Scale	Power:	AC 220V 50Hz
Weighing Accuracy:	90%~97%	Speed:	0.5~105km/h
Rated Load Of Single Axle:	40Ton	Maximum Overload Capacity:	60Ton (single Axle)
MTBF:	≥20000h	Temperature Range:	-45~+80℃

Name:	In Motion Axle Scale
Power:	AC 220V 50Hz
Weighing Accuracy:	90%~97%
Speed:	0.5~105km/h
Rated Load Of Single Axle:	40Ton
Maximum Overload Capacity:	60Ton (single Axle)
MTBF:	≥20000h
Temperature Range:	-45~+80℃

Product Description

Weighing System Of Max 60T Quartz Load Cell & WIM Scales

Product Description

(1) Pre inspect vehicles and screen overloaded vehicles.

(2) Monitor overloaded vehicles.

(3) Store vehicle data to provide data basis for management.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

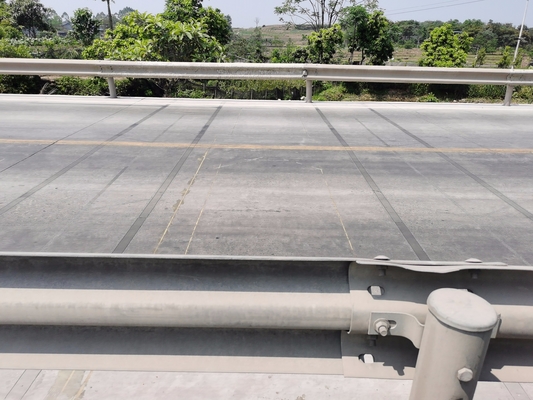

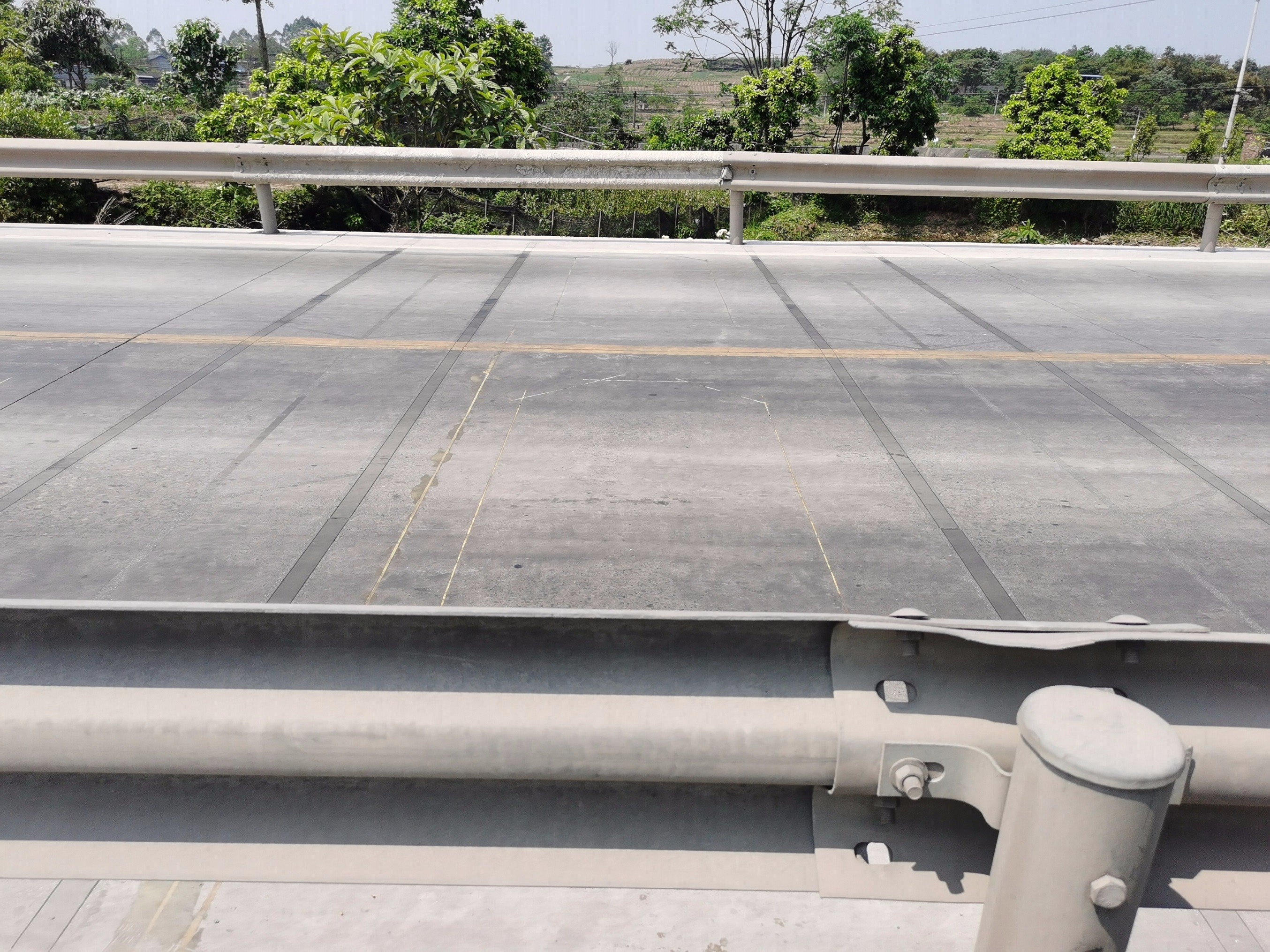

Project Case

Max 60T WIM Scales Quartz Dynamometry Load Cell Truck Weighing System 0
