Single Axle 40T In Motion Axle Scale & Axle Weighing System

Name: Single Axle 40T In Motion Axle Scale & Axle Weighing System
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                    40T In Motion Axle Scale, Single Axle In Motion Axle Scale, 40T Axle Weighing System


Name:	In Motion Axle Scale	Voltage:	AC 220V 50Hz
Weighing Accuracy:	90%~97%	Speed:	0.5~105km/h
Single Axle Load:	40Ton	Max Overload Capacity:	60Ton (single Axle)
MTBF:	≥20000h	Temperature:	-45~+80℃

Name:	In Motion Axle Scale
Voltage:	AC 220V 50Hz
Weighing Accuracy:	90%~97%
Speed:	0.5~105km/h
Single Axle Load:	40Ton
Max Overload Capacity:	60Ton (single Axle)
MTBF:	≥20000h
Temperature:	-45~+80℃

Product Description

Single Axle 40T Axle Load Weighing System & In Motion Axle Scale

Product Description

Install Lane high-speed dynamic weighing equipment about 1km away from the overload control station (the specific location depends on different road conditions), install several sets of automatic license plate recognition cameras about 25m behind, set variable information boards and other equipment 300 meters behind the high-speed weighing device (the specific location depends on different road conditions), and set variable information signs at an appropriate location about the overload control station (the specific location depends on different road conditions), At the same time, guide signs and markings for out of gauge vehicles shall be set at appropriate positions along the road section.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

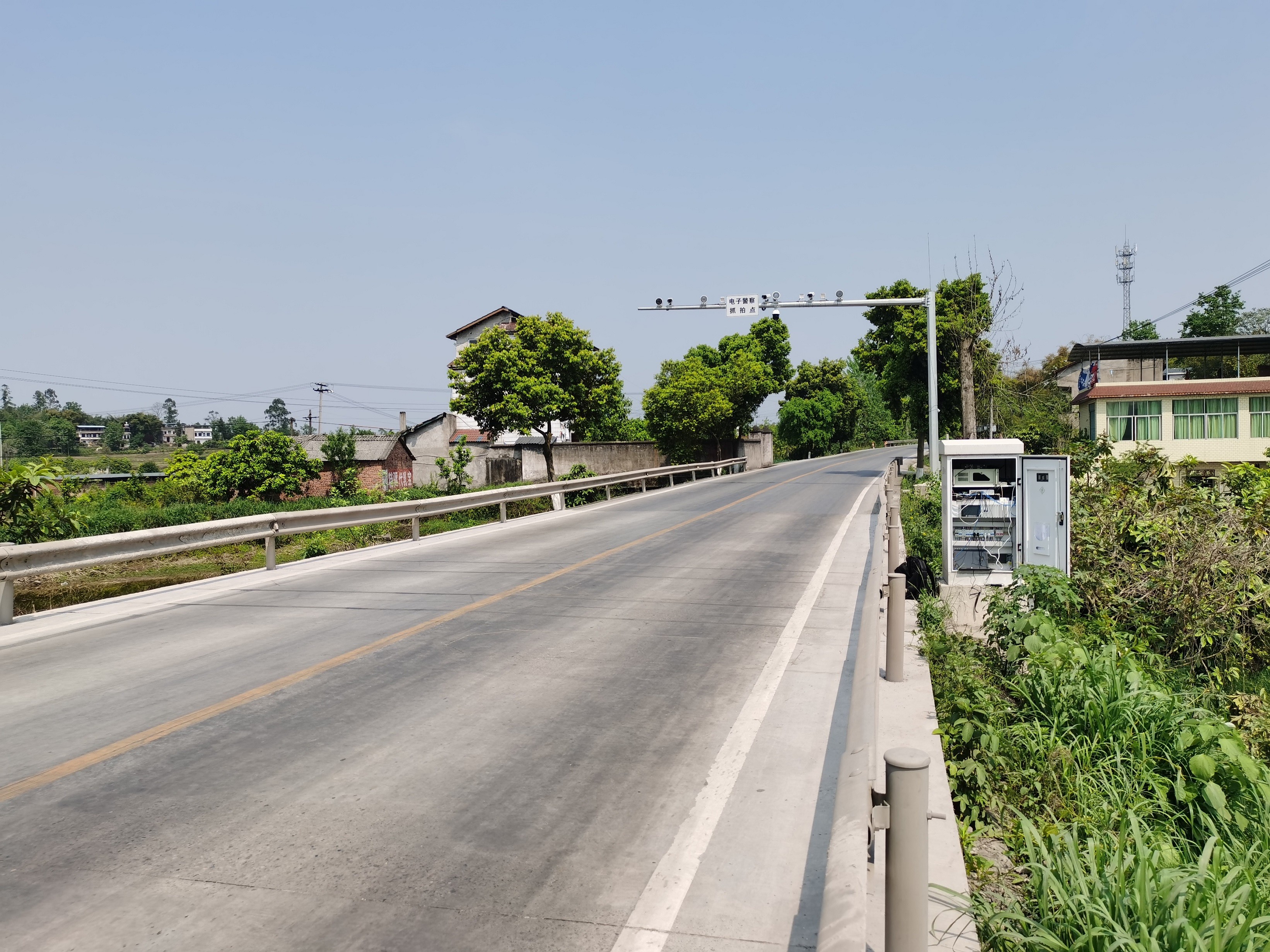

Project Case

Single Axle 40T In Motion Axle Scale & Axle Weighing System 0
