Name: Non Stop 0.5-105km/H Weigh In Motion Truck Scales Dynamic Weighing System
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Detail Information

Type:	Weigh In Motion Truck Scale	Voltage:	AC 220V
Weigh Accuracy:	90%~97%	Speed:	0.5~105km/h
Single Axle Load:	40T	Max Single Axle Load:	60T
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Grade:	IP68
Highlight:	105km/h Weigh In Motion Truck Scales , 105km/H Truck Scales Dynamic Weighing System , NonStop Truck Dynamic Weighing System

Product Description

Non Stop Pre Inspection Of Dynamic Weighing System For Truck Scales

Product Function

Improve highway traffic efficiency, make up for the lack of police force and expand the scope of control: the off-site law enforcement detection system has a high degree of automation, less dependence on manpower and fast detection speed. Off-site law enforcement avoids the direct conflict between the police and the people.
There are few human interference factors in the process, and the evidence is strong, so as to promote fair law enforcement: the system is fully automatic detection, data is automatically uploaded, and problems such as artificially modifying data and cattle leading the way are eliminated.
All-weather operation can play an invisible shock effect on potential violators.
It realizes the networking of overload control data: it can connect the data of various departments, automatically manage and share resources, complement each other's advantages, and virtually form a long-term management mechanism for the overload control order.
Put an end to violent anti law incidents and ensure the life safety of law enforcement personnel.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

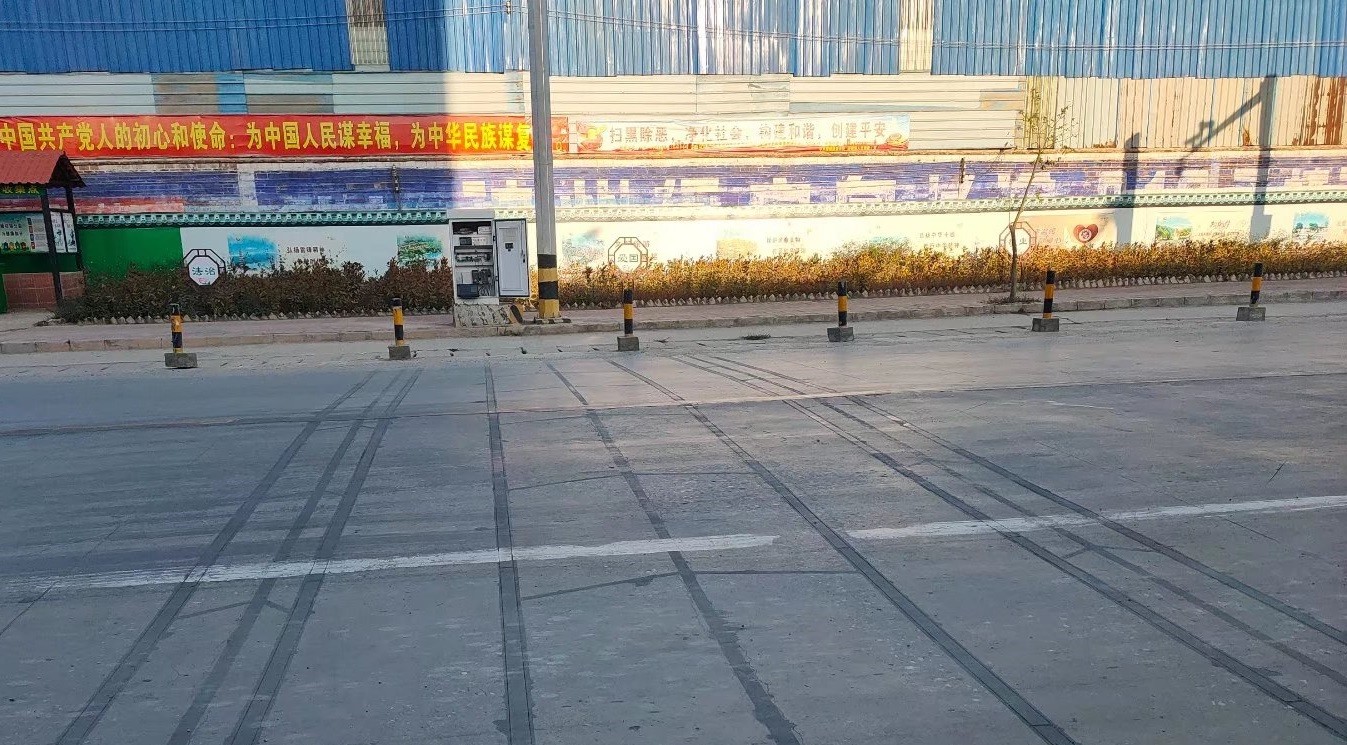

Project Case

Non Stop 0.5-105km/H Weigh In Motion Truck Scales Dynamic Weighing System 0

Tag:

Place of Origin:	Zhenghou`China
Brand Name:	Hengliang
Certification:	ISO
Model Number:	ZQS-40-SY

Minimum Order Quantity:	1 SET
Price:	USD 20000-35000/SET
Packaging Details:	Wooden box
Delivery Time:	5~7days
Payment Terms:	T/T
Supply Ability:	30 SET/Month
