IP68 Quartz WIM System Dynamic Weigh In Motion Truck Scales 60000kg Load

Name: IP68 Quartz WIM System Dynamic Weigh In Motion Truck Scales 60000kg Load
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    IP68 Quartz WIM System, IP68 weigh in motion truck scales, 60000kg Load WIM System


Name:	WIM System	Power:	AC 220V
Weighing Error:	3%~10%	Speed:	0.5~105km/h
Single Axle Load:	40Ton	Max Single Axle Load:	60Ton
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Level:	IP68

Name:	WIM System
Power:	AC 220V
Weighing Error:	3%~10%
Speed:	0.5~105km/h
Single Axle Load:	40Ton
Max Single Axle Load:	60Ton
Division Value:	50kg
MTBF:	≥20000h
Temperature Range:	-45~+80℃
Protection Level:	IP68

Product Description

IP68 Quartz WIM System & Axle Dynamic Weighing System & Truck Scales

Product Function

The weighing sensor of quartz weighing system belongs to digital sensor and is the highest grade weighing sensor at present. The weighing sensor chip adopts the most advanced crystal brick matrix, and the integration of toughness and hardness has reached the high ideal requirements. This hardware advantage effectively ensures the grade of core components. The load cell has dual core design, multiple protection, strong signal and more stable. It has spine type buffer structure, which can avoid the damage of strong impact force to the sensor and greatly improve the service life of the sensor.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

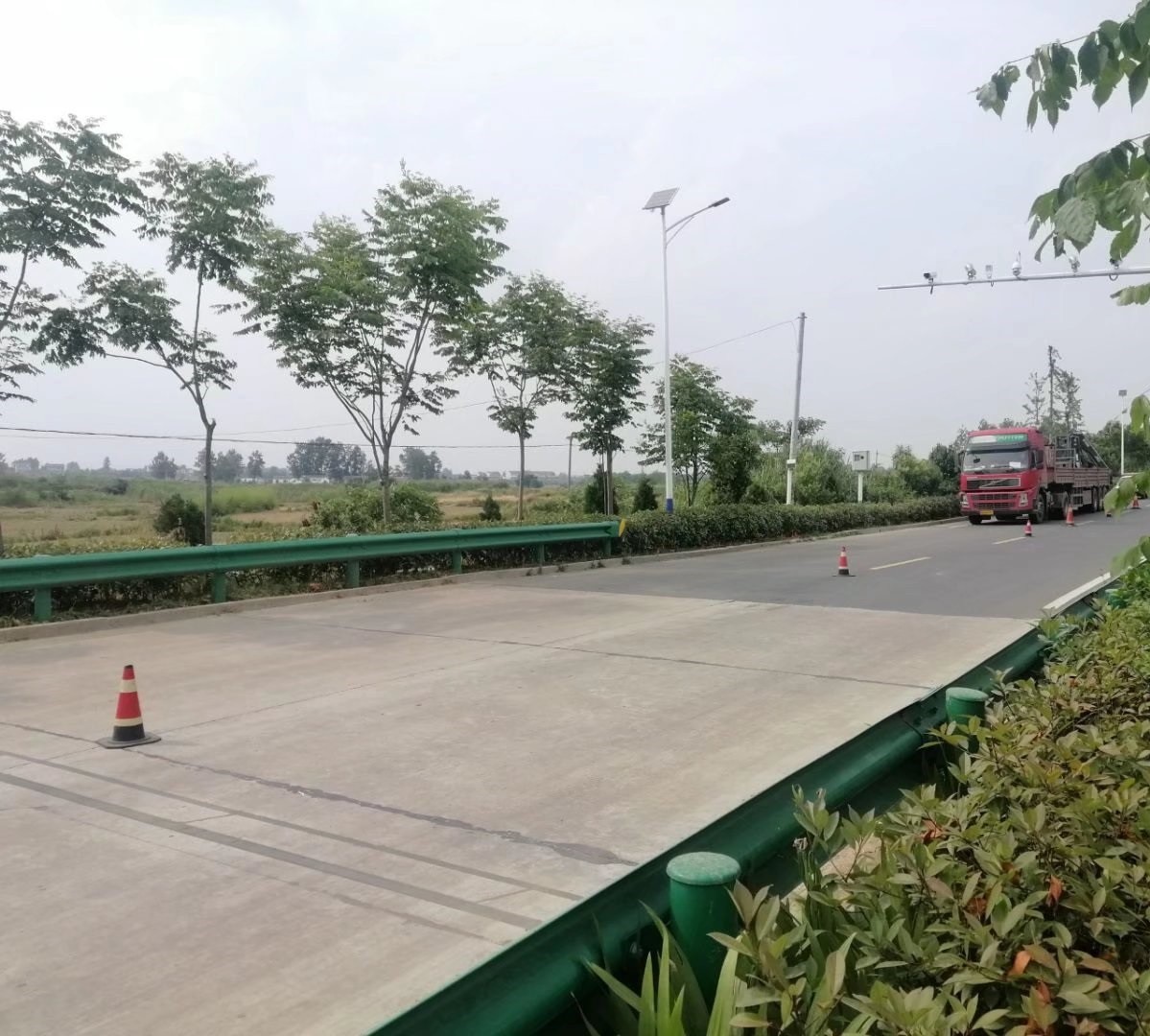

Project Case

IP68 Quartz WIM System Dynamic Weigh In Motion Truck Scales 60000kg Load 0
