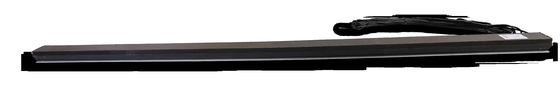

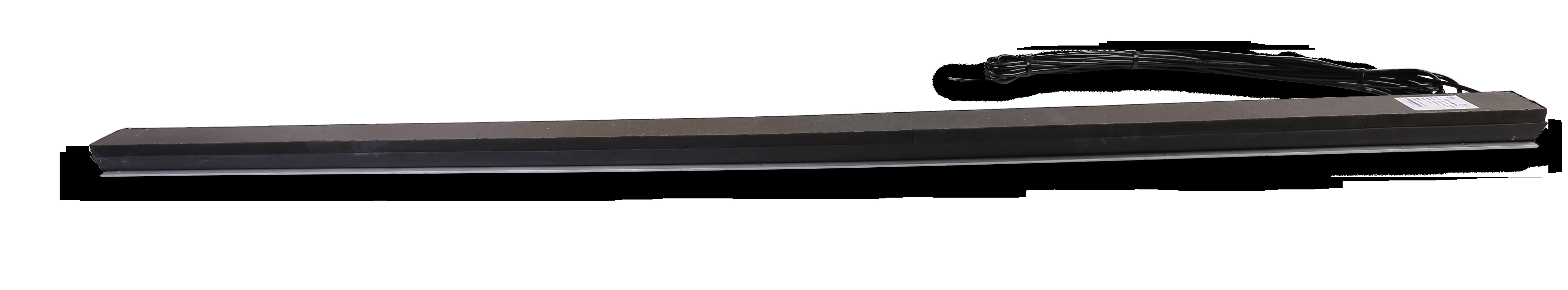

30t Dynamic Weighing Weigh In Motion Sensors IP68 For Toll Station

Name: 30t Dynamic Weighing Weigh In Motion Sensors IP68 For Toll Station
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: HL-S-QZ70
Price: 6,600.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: HL-S-QZ70

Payment & Shipping Terms

Minimum Order Quantity: 6 PCS

Price: USD 1200-12000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 300 PCS/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                    Dynamic Weighing Weigh In Motion Sensors, 30t Dynamic Weighing senor, Toll Station Weigh In Motion Sensors


Name:	Weigh In Motion Sensor	Speed:	0.5 ~ 105km / H
The Error Range Of Total Weight:	≤ ± 5%	Axle Load Error Range:	≤ ± 10%
Speed Error:	≤1km / H	Single Axle Load:	30T
Maximum Overload:	150%	Nominal Sensitivity:	-1.54 ± 7% PC / N
Sensitivity On The Sensor Length Changes:	≤ ± 3%	Linearity:	≤ ± 2 FOS%
Working Temperature:	-45 ℃ ~ 80 ℃	IP Grade:	IP68

Name:	Weigh In Motion Sensor
Speed:	0.5 ~ 105km / H
The Error Range Of Total Weight:	≤ ± 5%
Axle Load Error Range:	≤ ± 10%
Speed Error:	≤1km / H
Single Axle Load:	30T
Maximum Overload:	150%
Nominal Sensitivity:	-1.54 ± 7% PC / N
Sensitivity On The Sensor Length Changes:	≤ ± 3%
Linearity:	≤ ± 2 FOS%
Working Temperature:	-45 ℃ ~ 80 ℃
IP Grade:	IP68

Product Description

High Accuracy Dynamic Weighing Sensor & Weigh In Motion Sensors

Product Description

The long term stability is good.
There is a wide range of measurements, from low speed to high speed.
The short response time and large dynamic range.
Not sensitive to temperature change.
The installation is convenient and fast.
Adapting to different kinds of road.
No bump on the road after installation, safe and durable.
The sensor having 18mm milling layer on surface and kept smooth with pavement.
The output interface: coaxial cable with BNC plugs

Project Parameters

Velocity range	0.5 ~ 105km / h
The error range of total weight	≤ ± 5%
Axle load error	≤ ± 10%
Speed error	≤1km / h
Single axle load	30t
Maximum overload	150%
Nominal sensitivity	-1.54 ± 7% PC / N
Linearity	DC15 ~ 30V
Working temperature	-45 ℃ ~ 80 ℃
Insulation resistance	> 100 GΩ
Life	≥ one hundred million axle
Protection level	IP68
