40T Overload Control Vehicle Load Cell with Quartz Weigh Sensor

Name: 40T Overload Control Vehicle Load Cell with Quartz Weigh Sensor
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: HL-S-QZ70
Price: 6,600.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: HL-S-QZ70

Payment & Shipping Terms

Minimum Order Quantity: 6 PCS

Price: USD 1200-12000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 300 PCS/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                    40T Overload Control Vehicle Load Cel, Overload Control Quartz Weigh Sensor, 40T Vehicle Quartz Weigh Sensor


Name:	Quartz Sensors	Speed Rate:	0.5 ~ 105km / H
Total Weight Error:	≤ ± 5%	Axle Load Accuracy:	≥ ± 90%
Speed Error:	≤1km / H	Single Axle Rated Load:	40T
Maximum Overload:	150%	Nominal Sensitivity:	-1.54 ± 7% PC / N
Sensitivity On The Sensor Length Changes:	≤ ± 3%	Linearity:	≤ ± 2 FOS%
Working Temperature:	-45 ℃ ~ 80 ℃	Certification:	ISO

Name:	Quartz Sensors
Speed Rate:	0.5 ~ 105km / H
Total Weight Error:	≤ ± 5%
Axle Load Accuracy:	≥ ± 90%
Speed Error:	≤1km / H
Single Axle Rated Load:	40T
Maximum Overload:	150%
Nominal Sensitivity:	-1.54 ± 7% PC / N
Sensitivity On The Sensor Length Changes:	≤ ± 3%
Linearity:	≤ ± 2 FOS%
Working Temperature:	-45 ℃ ~ 80 ℃
Certification:	ISO

Product Description

Vehicle Overload Control Load Cell & Quartz Weigh Sensor & Weigh In Motion Sysytem

Product Description

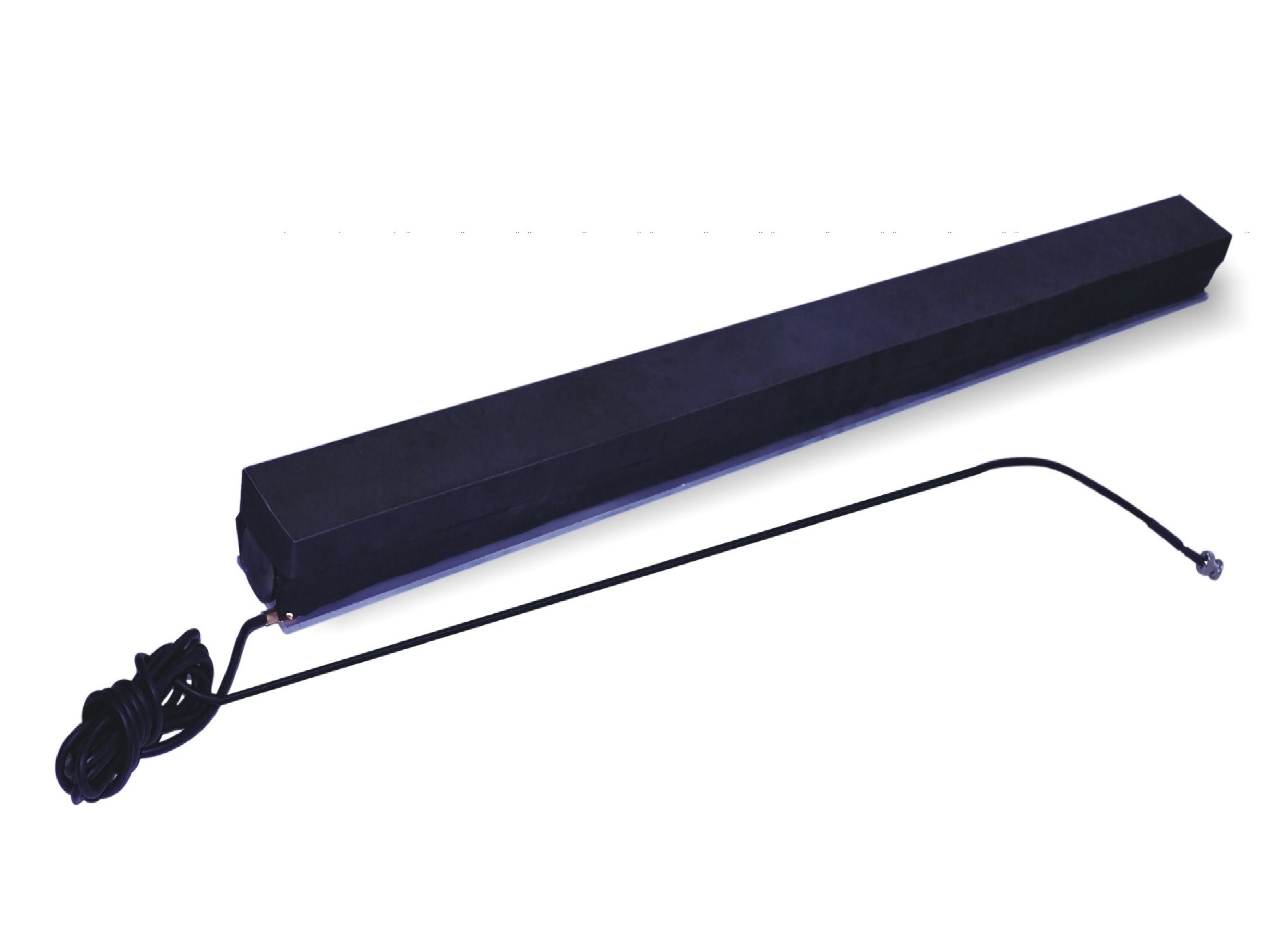

Quartz sensor is formed by processing quartz crystal through special process. It adopts high-precision sensor pressure / charge converter. It has stable working performance, is not affected by temperature change, fully sealed structure, no mechanical movement and wear, waterproof, dustproof, corrosion-resistant, durable and maintenance free.

Product Parameters

Velocity range	0.5 ~ 105km / h
The error range of total weight	≤ ± 5%
Axle load error range	≤ ± 10%
Speed error	≤1km / h
Single axle rated load	30t
Maximum overload	150%
Nominal sensitivity	-1.54 ± 7% PC / N
Linearity	DC15 ~ 30V
Working temperature	-45 ℃ ~ 80 ℃
Insulation resistance	> 100 GΩ
Life	≥ one hundred million axle
Protection level	IP68
