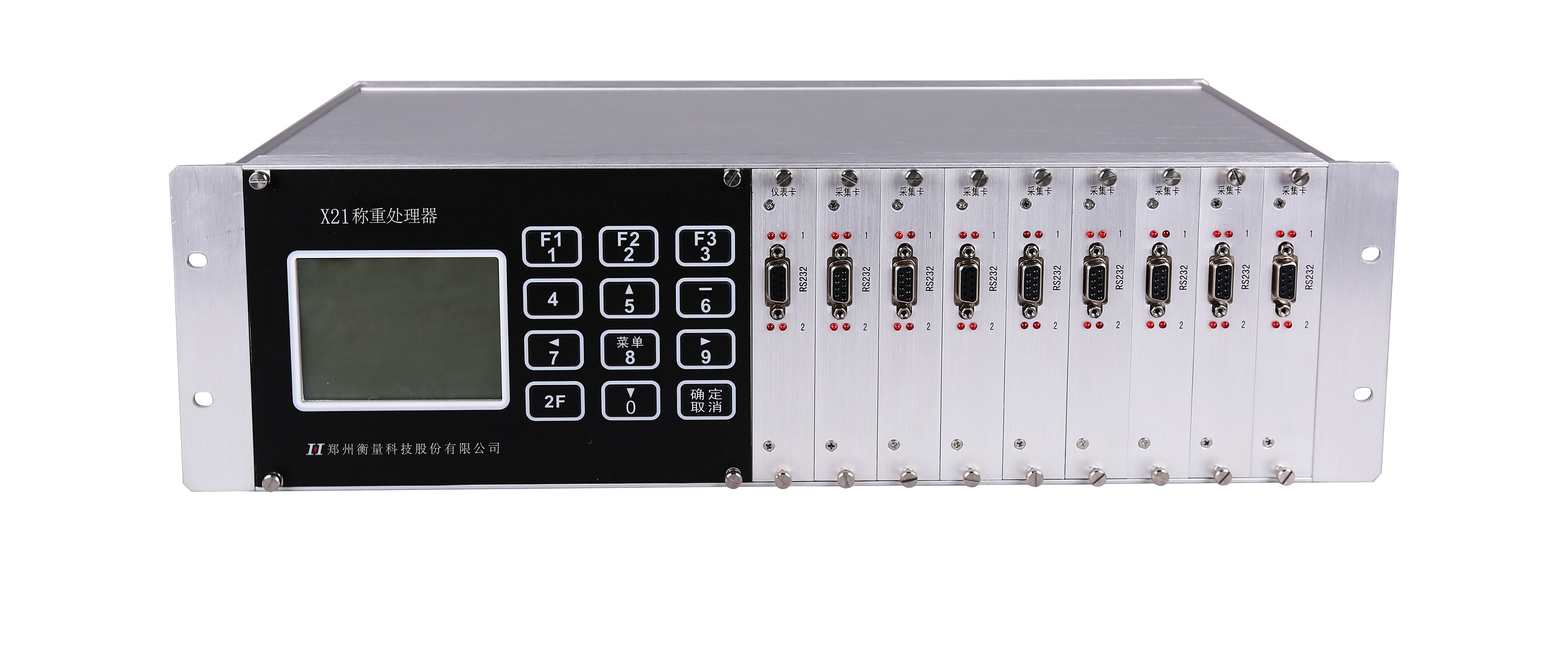

0.5-105km/H High Speed Digital Weight Controller Meter AC220V 50Hz

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: X21

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: USD 6600-13200/PCS

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 50 PCS/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                    105km/H High Speed Digital Weight Controller, 105km/H High Speed Weight Meter, Digital Weight Controller AC220V 50Hz


Name:	Weigh Meter	Power Voltage:	AC220V 50Hz
Speed Range:	0.5~105km/h	Error:	< ± 5% Total Weigh
Speed Error:	≤ ±1km/h	Error Of Axle Base:	≤ ±100mm
Display:	Monochrome,320*240 Lattice	Keyboard:	12 Thin Film Keyboard
Data Store:	10000 Vehicle Data	Number Of Lane:	≤ 8
Data Interface:	RS232	Camera Trigger Mode:	Switch Trigger
Working Temperature:	-30~+70℃	Material:	AL

Name:	Weigh Meter
Power Voltage:	AC220V 50Hz
Speed Range:	0.5~105km/h
Error:	< ± 5% Total Weigh
Speed Error:	≤ ±1km/h
Error Of Axle Base:	≤ ±100mm
Display:	Monochrome,320*240 Lattice
Keyboard:	12 Thin Film Keyboard
Data Store:	10000 Vehicle Data
Number Of Lane:	≤ 8
Data Interface:	RS232
Camera Trigger Mode:	Switch Trigger
Working Temperature:	-30~+70℃
Material:	AL

Product Description

Highway Overload System & Digital Portable High Speed Weight Control Meter

Product Description

The outdoor enclosure installed near the quartz weighing sensor in roadside, configure a station in each direction, process charge amplifier input signal, and form axle load, wheelbase, shaft speed ,models, gross weight and other information, at the same time transmit test data to high-speed preview computer in real-time.

Product Parameters

Voltage	AC 220V 50Hz
Material	AL
Display	Monochrome,320*240lattice
Keyboard	21 thin film keyboard
Data Store	10000 vehicle data
Data Interface	RS232
Number of Lane	≤4(6 rows sensor)
Working Temperature	-40℃～75℃
Camera Trigger Mode	Switch Trigger
LengthWidthHeight	483225133mm
Function	It analyzes charge amplifier input signal, and concludes axle, wheelbase, axle speed, vehicle model, gross weight and other information
