Home /Products/Weigh In Motion Sensors/30000KG Axle High Speed Weigh In Motion Sensors Hengliang

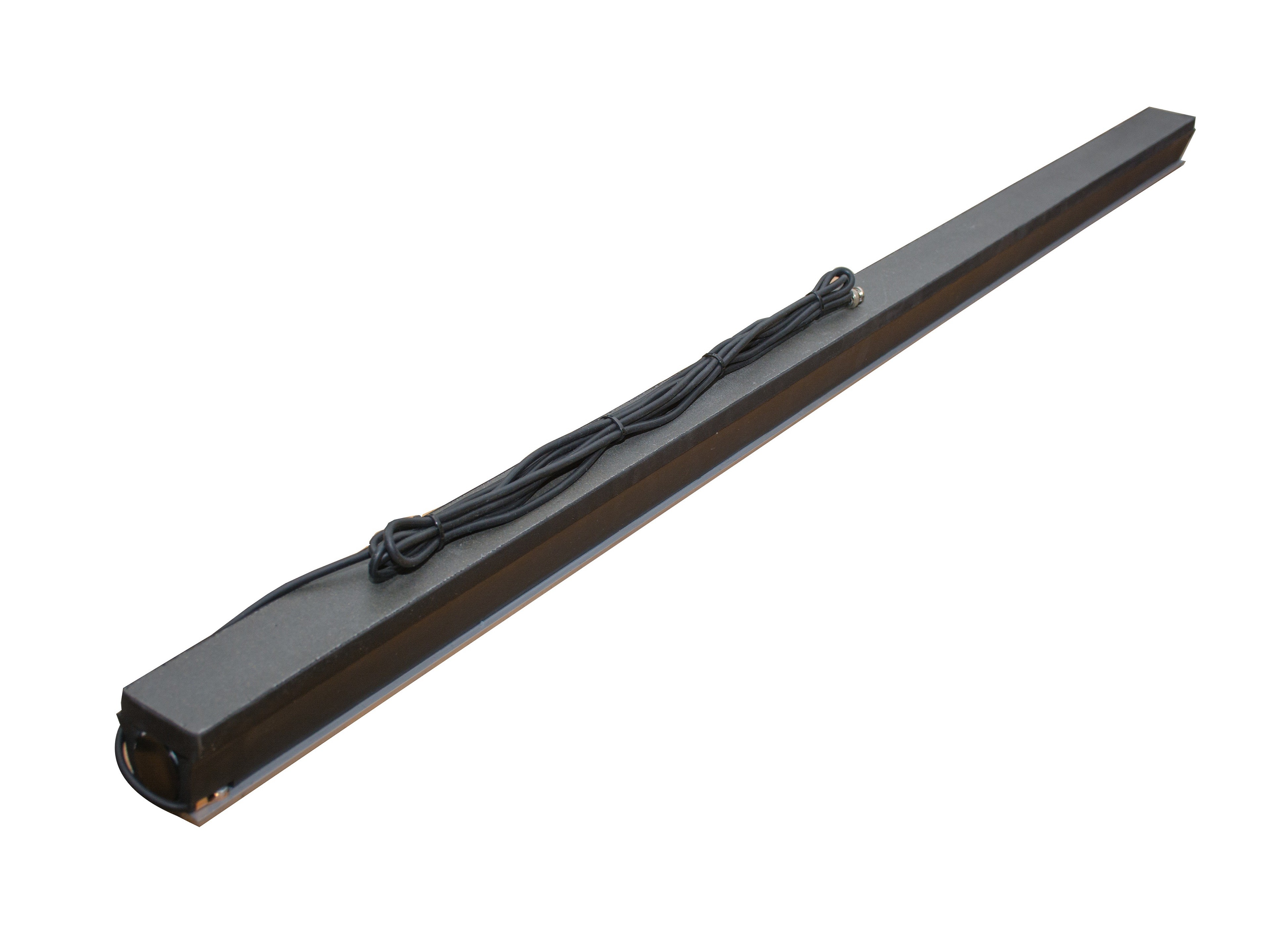

30000KG Axle High Speed Weigh In Motion Sensors Hengliang

6 PCS
MOQ
USD 1200-12000/SET
Price
30000KG Axle High Speed Weigh In Motion Sensors Hengliang
Features Gallery Product Description Chat Now
Features
Specifications
Type: Weigh In Motion Sensors
Speed: 0.5 ~ 105km / H
The Error Range Of Total Weight: ≤ ± 5%
Axle Load Error Range: ≤ ± 10%
Speed Error: ≤1km / H
Single Axle Rated Load: 40T
Maximum Overload: 150%
Nominal Sensitivity: -1.54 ± 7% PC / N
Sensitivity On The Sensor Length Changes: ≤ ± 3%
Linearity: ≤ ± 2 FOS%
Working Temperature: -45 ℃ ~ 80 ℃
Certification: ISO
Highlight:

30000KG Axle Weigh In Motion Sensors

,

30000KG high speed weigh in motion

,

Weigh In Motion Sensors Hengliang
Basic Infomation
Place of Origin: Zhenghou`China
Brand Name: Hengliang
Certification: ISO
Model Number: HL-S-QZ70
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 5~7days
Payment Terms: T/T
Supply Ability: 300 PCS/Month
Product Description

Weighing Sensor & Axle Sensor & Weight-In-Motion System-30000KG

Product Description

  Quartz sensor converting dynamic tire force into electric signals, then the signals converted to analog voltage through the charge amplifier, and then through the A/D converter converting the analog signal to digital signal, finally the weighing result obtained by the embedded computer and its software. The measurement chain signal form and units are:



                     Force(N)→Charge(pC)→Voltage(V)→Sampling and operation→Weight(Kg)





Product Parameters

 Velocity range

0.5 ~ 105km / h

The error range of total weight

≤ ± 5%

Axle load error range

≤ ± 10%

Speed error

≤1km / h

 Single axle rated load

30t

Maximum overload

150%

Nominal sensitivity

 -1.54 ± 7% PC / N

 Linearity

DC15 ~ 30V

Working temperature

 -45 ℃ ~ 80 ℃

Insulation resistance

> 100 GΩ

Life

≥ one hundred million axle

 Protection level

IP68






Tag:

105km/h Weigh In Motion Sensors

Highway 105km/h wim sensor

30000KG Axle Weigh In Motion Sensors
