IP68 Truck Axle Scales Charge Amplifier 0.01-10KHz In Weigh In Motion Systems

Name: IP68 Truck Axle Scales Charge Amplifier 0.01-10KHz In Weigh In Motion Systems
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: HL12-6
Price: 4,840.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: HL12-6

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: USD 880-8800/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 300 PCS/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    truck axle scales charge amplifier, IP68 Truck Scales Charge Amplifier, Charge Amplifier Weigh In Motion Systems


Name:	Charge Amplifier	Output Voltage:	DC-5V~+5V
Channel:	8	Output Impedance:	100Ω
Frequency:	0.01~10KHz	Error:	< 1%
Time Constant:	100s	Power Dissipation:	< 10mA
Protection Class:	IP68	Working Temperature:	-30~+70℃

Name:	Charge Amplifier
Output Voltage:	DC-5V~+5V
Channel:	8
Output Impedance:	100Ω
Frequency:	0.01~10KHz
Error:	< 1%
Time Constant:	100s
Power Dissipation:	< 10mA
Protection Class:	IP68
Working Temperature:	-30~+70℃

Product Description

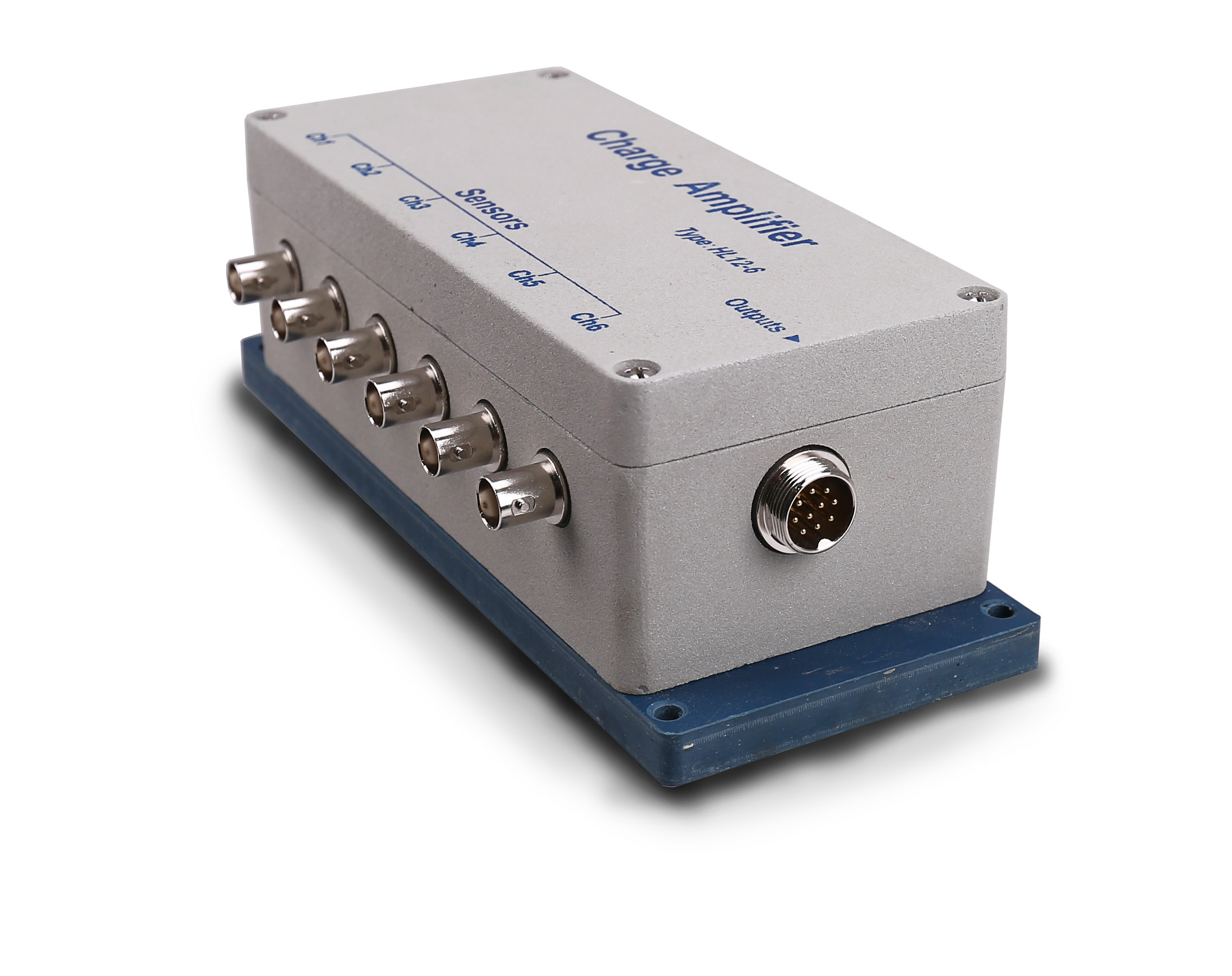

High Precision Charge Amplifier For Truck Scales & Weighing Scales

Product Description

The charge amplifier is designed based on quartz WIM sensor’s signal converter; it can simultaneously proportionally change the charge of eight quartz WIM sensor output into voltage signal for acquisition unit to collect.

Product Parameters

Measuring range	± 60000PC
Error	<1%
Output voltage	0 ~ ± 5V
Output Current	0 ~ ± 2mA
Output Impedance	100Ω
Frequency characteristic (3db)	≈0.0016 ~> 10 kHz
Time constant	≈100s
Supply voltage	DC15 ~ 30V
Supply current	<25mA
Operating temperature range	-45 ~ 80 ℃
Protection level	IP65
Shock resistance	10gp
