Quartz Dynamometry Wim Sensor 5% Error Range weigh in motion scales

Name: Quartz Dynamometry Wim Sensor 5% Error Range weigh in motion scales
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: HL-S-QZ70
Price: 6,600.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: HL-S-QZ70

Payment & Shipping Terms

Minimum Order Quantity: 6 PCS

Price: USD 1200-12000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 300 PCS/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                    Quartz Piezoelectric Wim Sensor, Wim Sensor 5% Error Range, 5% Error Range Weigh In Motion Scales


Name:	Quartz Sensor	Speed Range:	0.5 ~ 105km / H
The Error Range Of Total Weight:	≤ ± 5%	Axle Load Error Range:	≤ ± 10%
Speed Error:	≤1km / H	Single Axle Rated Load:	30T
Maximum Overload:	150%	Nominal Sensitivity:	-1.54 ± 7% PC / N
Sensitivity On The Sensor Length Changes:	≤ ± 3%	Linearity:	≤ ± 2 FOS%
Working Temperature:	-45 ℃ ~ 80 ℃	Certification:	ISO

Name:	Quartz Sensor
Speed Range:	0.5 ~ 105km / H
The Error Range Of Total Weight:	≤ ± 5%
Axle Load Error Range:	≤ ± 10%
Speed Error:	≤1km / H
Single Axle Rated Load:	30T
Maximum Overload:	150%
Nominal Sensitivity:	-1.54 ± 7% PC / N
Sensitivity On The Sensor Length Changes:	≤ ± 3%
Linearity:	≤ ± 2 FOS%
Working Temperature:	-45 ℃ ~ 80 ℃
Certification:	ISO

Product Description

Truck Electronic Quartz Weighing Sensor Transducers

Product Description

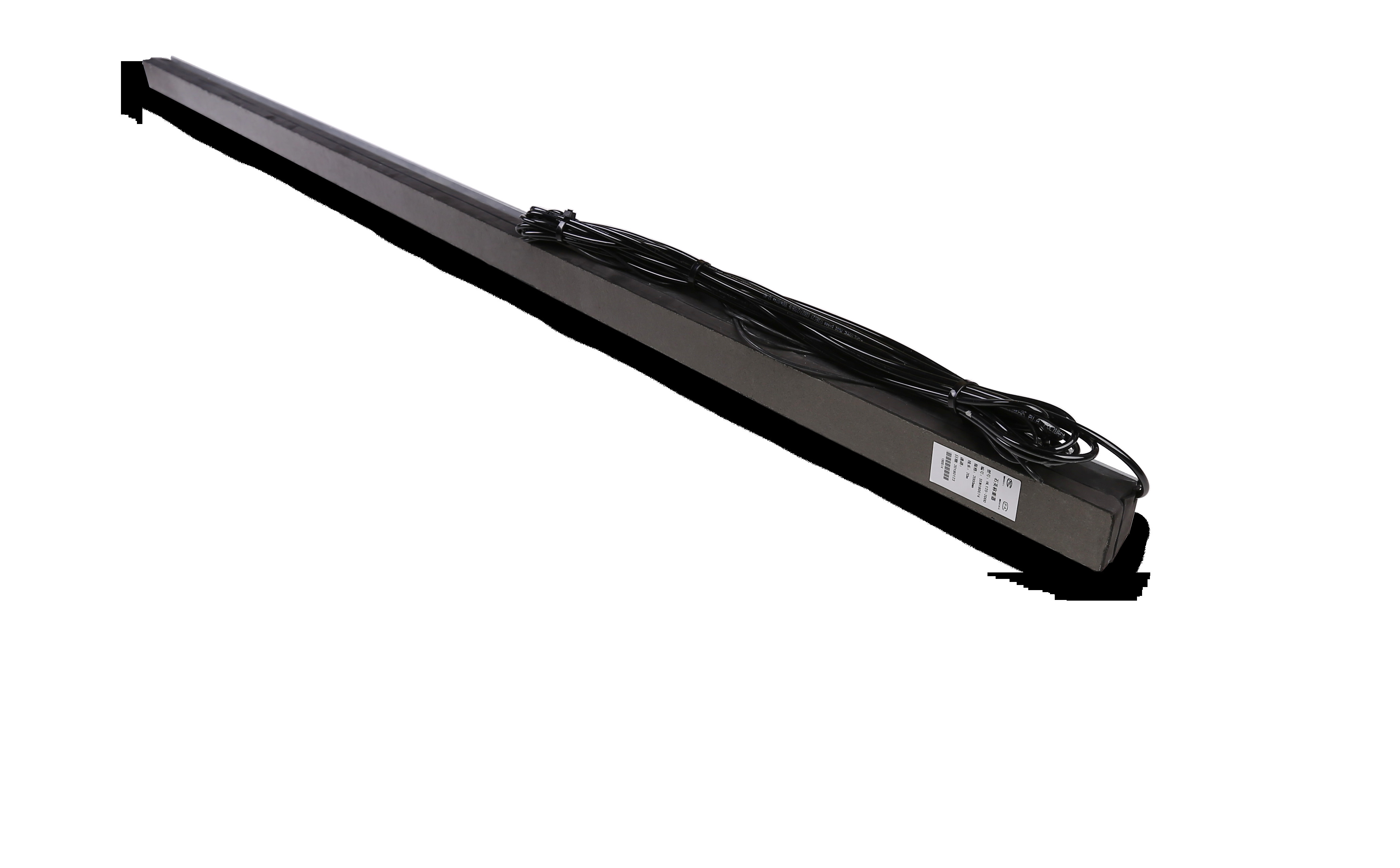

Quartz sensor is a kind of sensor using quartz piezoelectric effect to measure weight .Quartz sensor is consists of a number of quartz ranged closely and assemble in aluminum alloy cabinet in accordance with certain layout.

Product Parameters

Velocity range	0.5 ~ 105km / h
The error range of total weight	≤ ± 5%
Axle load error range	≤ ± 10%
Speed error	≤1km / h
Single axle rated load	30t
Maximum overload	150%
Nominal sensitivity	-1.54 ± 7% PC / N
Linearity	DC15 ~ 30V
Working temperature	-45 ℃ ~ 80 ℃
Insulation resistance	> 100 GΩ
Life	≥ one hundred million axle
Protection level	IP68
