Unattended 20000h MTBF Weight In Motion System IP68 Wim Sensor
| Place of Origin | Zhenghou`China |
|---|---|
| Brand Name | Hengliang |
| Certification | ISO |
| Model Number | ZQS-40-SY |
| Minimum Order Quantity | 1 SET |
| Price | USD 20000-35000/SET |
| Packaging Details | Wooden box |
| Delivery Time | 5~7days |
| Payment Terms | T/T |
| Supply Ability | 30 SET/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | WIM Scales | Voltage | AC 110V~220V |
|---|---|---|---|
| Weighing Error | 3%~10% | Speed | 0.5~105km/h |
| Axle Load | 40T (single Axle) | Single Axle Overload | 150% |
| Division Value | 50kg | MTBF | ≥20000h |
| Temperature Range | -45~+80℃ | Protection Level | IP68 |
| Highlight | Unattended Weight In Motion System IP68,20000h MTBF Weight In Motion System,IP68 Wim Sensor |
||
Product Description
IP68 High Precision Dynamic Vehicle Overload Management System
Product Function
- Automatic identifying vehicle’s driving direction and meanwhile detecting forward and reverse vehicles.
- According to the standard that the user set, automatically judge whether vehicles speeding, overweight, and starts the alarm device.
- Test high speed (speed: 0.5 ~ 105 km/h) vehicle’s axle load, speed, wheelbase, total weight and can separate automatically.
- Has data fault-tolerant function, correct matching weight and license plate number, form a complete vehicle information, including the vehicle's license plate, the speed and axle load, the number of shaft, wheelbase, vehicle weight, pass time, whether overweight or speeding, etc.
Realize intelligent analysis, according the condition of time period, where the car passed to analyzed, and display in the form of a chart.
Provide function of system network connection test, can dynamic rendering system topology structure, real-time test connection status of each node in the network.
Provide user management, data backup and restore data, and other functions for advanced permissions users.
High-speed preview information management software provides management functions for multiple remote testing site, for testing station peripherals with state detection function.
Product Parameters
| Weighing accuracy | 90%~97% |
| Single axle load | 40Ton |
| Max Load | 60Ton |
| Speed | 0.5~105km/h； |
| Speed error | ≤±1km/h |
| Wheelbase error | ≤±100mm |
| Working voltage | AC 220V 50Hz |
| Output information | Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time |
| Maximum number of lanes | 8 lanes |
| Data storage | It can store up to 10000 pieces of vehicle information data |
| data interface | RJ485 |
| work environment | -45℃～80℃,0～95% |
| Confidence | ≥95% |

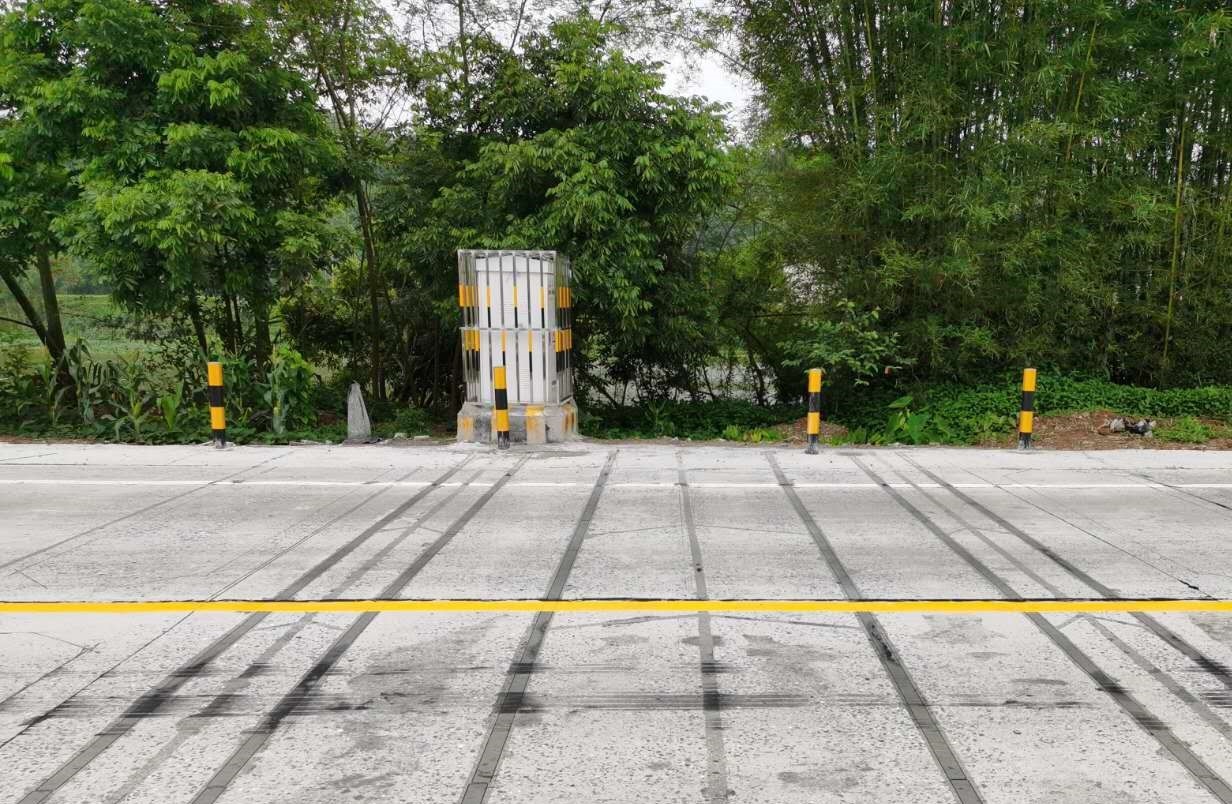

Project Case
