Group Axle Weighing Scale For Highway Management System & Truck Scales

Basic Information

Place of Origin:	Zhenghou`China
Brand Name:	Hengliang
Certification:	ISO
Model Number:	ZQS-40-SY

Minimum Order Quantity:	1 SET
Price:	USD 20000-35000/SET
Packaging Details:	Wooden box
Delivery Time:	5~7days
Payment Terms:	T/T
Supply Ability:	30 SET/Month

Get Best Price Contact Now

Detail Information

Type:	WIM System	Voltage:	AC 220V 50Hz
Error:	3%~10%	Speed Range:	0.5~105km/h
Axle Load:	40Ton (single Axle)	Axle Max Overload:	60Ton (single Axle)
MTBF:	≥20000h	Temperature:	-45~+80℃
Highlight:	Group Axle Weighing Scale , Highway Axle Weighing Scale , Highway Management Truck Scales

Product Description

Axle And Axle Group Weighing Scale For Highway Management System & Truck Scales

Product Description

Comprehensively considering the technical development trend of the non-stop overrun and overload detection system in the next 5-10 years, the system applies the internationally leading quartz dynamic weighing technology to the high-speed weighing of vehicles, and synchronously matches the leading front and rear license plate recognition technology with the quartz dynamic weighing technology to ensure the technical leadership of the overall performance of the system.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

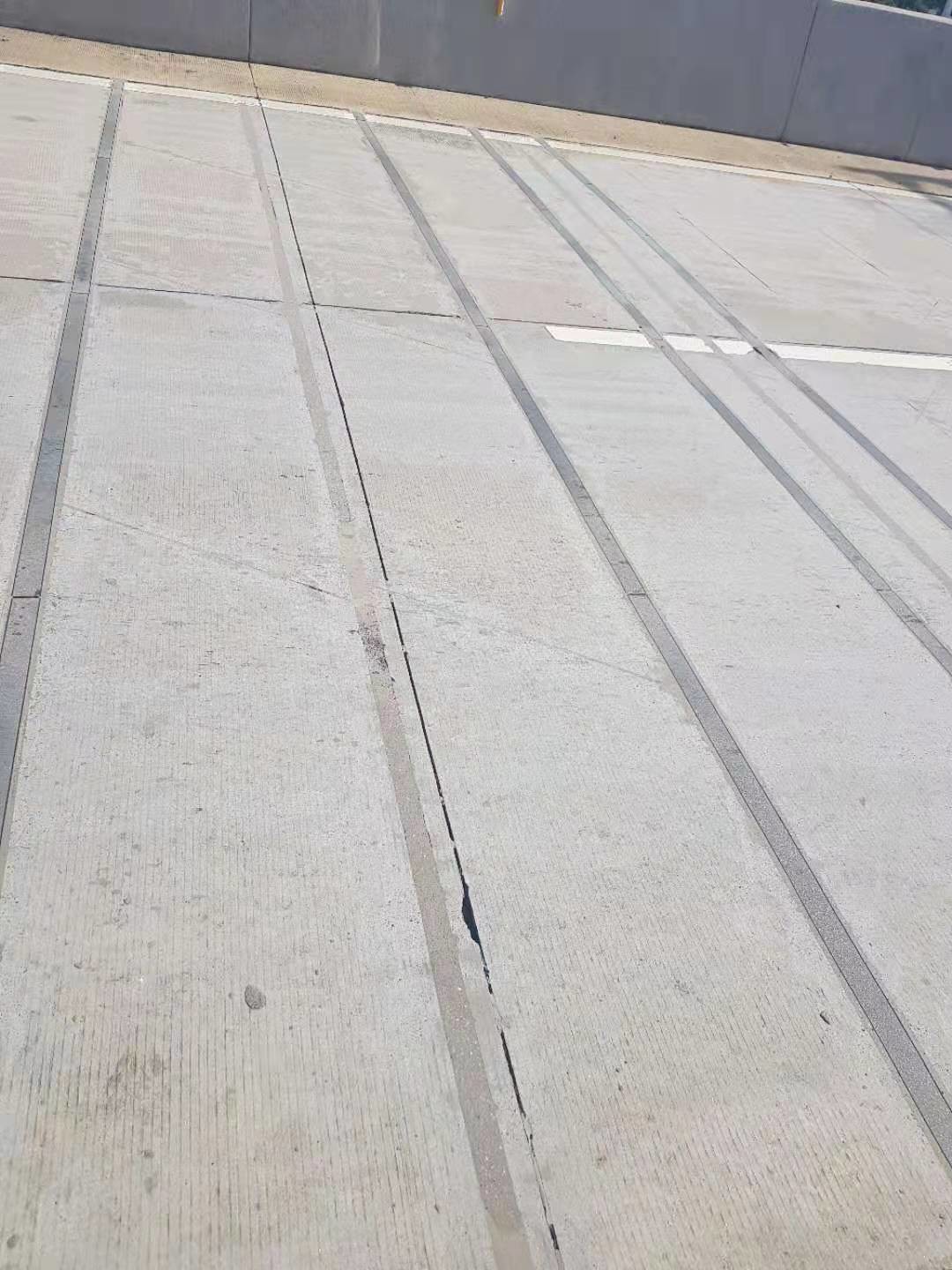

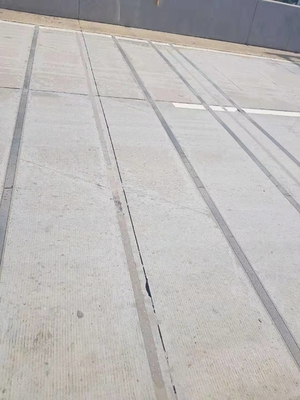

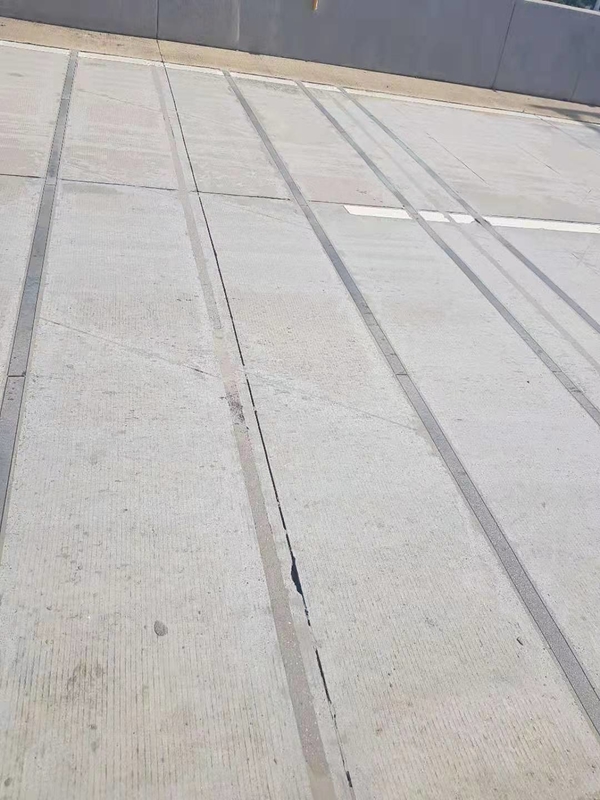

Project Case
