ISO Weigh In Motion Station 40km/H Slow Speed Highway Management

1 SET
MOQ
USD 20000-35000/SET
Price
ISO Weigh In Motion Station 40km/H Slow Speed Highway Management
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Weight In Motion Station
Single Axle: 30T
Maximum Overload: 45T (single Axle)
Speed: 0.5~40km/h
MTBF: ≥20000h
Weighing Accuracy: 90%~97%
Temperature Range: -45~+80℃
Protection Level: IP68
Highlight:

Weigh In Motion Station 40km/H

,

40km/H Slow Speed Weigh In Motion

,

Highway ISO Weigh In Motion Station
Basic Infomation
Place of Origin: Zhenghou`China
Brand Name: Hengliang
Certification: ISO
Model Number: ZQS-40-SY
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 5~7days
Payment Terms: T/T
Supply Ability: 30 SET/Month
Product Description

Axle Load 30T High Stability Low Speed Weight In Motion Station

Product Description

vehicle passing the weighing area, the axle running on the quartz sensor and track detecting sensor paved in the lane, the signal generated by the quartz sensor collected, analyzed and processed by data collector, and sent to the weighing meter; the signal from the track detecting sensor , collected, processed and analyzed by the weighing meter, to acquire the driving track of vehicle.



Product Parameters



Weighing error 5%~10%
Single axle load 40Ton
Max Single Load 60Ton
Speed rate 0.5~40km/h；
Speed error ≤±1km/h
Wheelbase error ≤±100mm
Power AC 220V 50Hz
Output information Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
data interface RJ485
work environment -45℃～80℃,0～95%
Confidence ≥95%

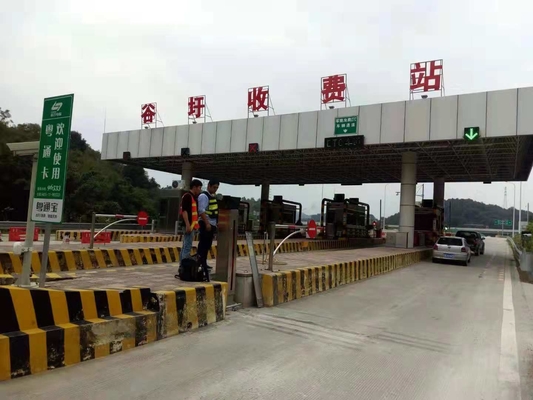

Project Cases

ISO Weigh In Motion Station 40km/H Slow Speed Highway Management 0
