95% Accuracy Weigh In Motion Station Truck Scales 40T Single Axle

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price
Product Details
Highlight:

95% Accuracy Weigh In Motion Station

,

95% Accuracy in motion truck scales

,

40T Single Axle in motion truck scales

Type:
Weigh In Motion Station
Voltage:
AC 220V
Weighing Accuracy:
90%~95%
Speed Rate:
0.5~40km/h
Single Axle Load:
40Ton
Max Single Axle Load:
60Ton
Division Value:
50kg
MTBF:
≥20000h
Temperature Range:
-45~+80℃
Protection Level:
IP68
Type:
Weigh In Motion Station
Voltage:
AC 220V
Weighing Accuracy:
90%~95%
Speed Rate:
0.5~40km/h
Single Axle Load:
40Ton
Max Single Axle Load:
60Ton
Division Value:
50kg
MTBF:
≥20000h
Temperature Range:
-45~+80℃
Protection Level:
IP68
Product Description

Source Overload Control System & Weigh In Motion Station Truck Scales

Product Function



It can automatically judge whether the vehicle exceeds the limit.

Be able to handle the weighing process by itself.

It can form complete vehicle weighing information, including vehicle weighing, axle group weight, vehicle weight, axle type, vehicle model, vehicle speed, vehicle overrun sign, time, etc.

Product Parameters



Weighing error 5%~10%
Single axle load 40Ton
Max Single Load 60Ton
Speed rate 0.5~40km/h;
Speed error ≤±1km/h
Wheelbase error ≤±100mm
Power AC 220V 50Hz
Output information Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
data interface RJ485
work environment -45℃~80℃,0~95%
Confidence ≥95%

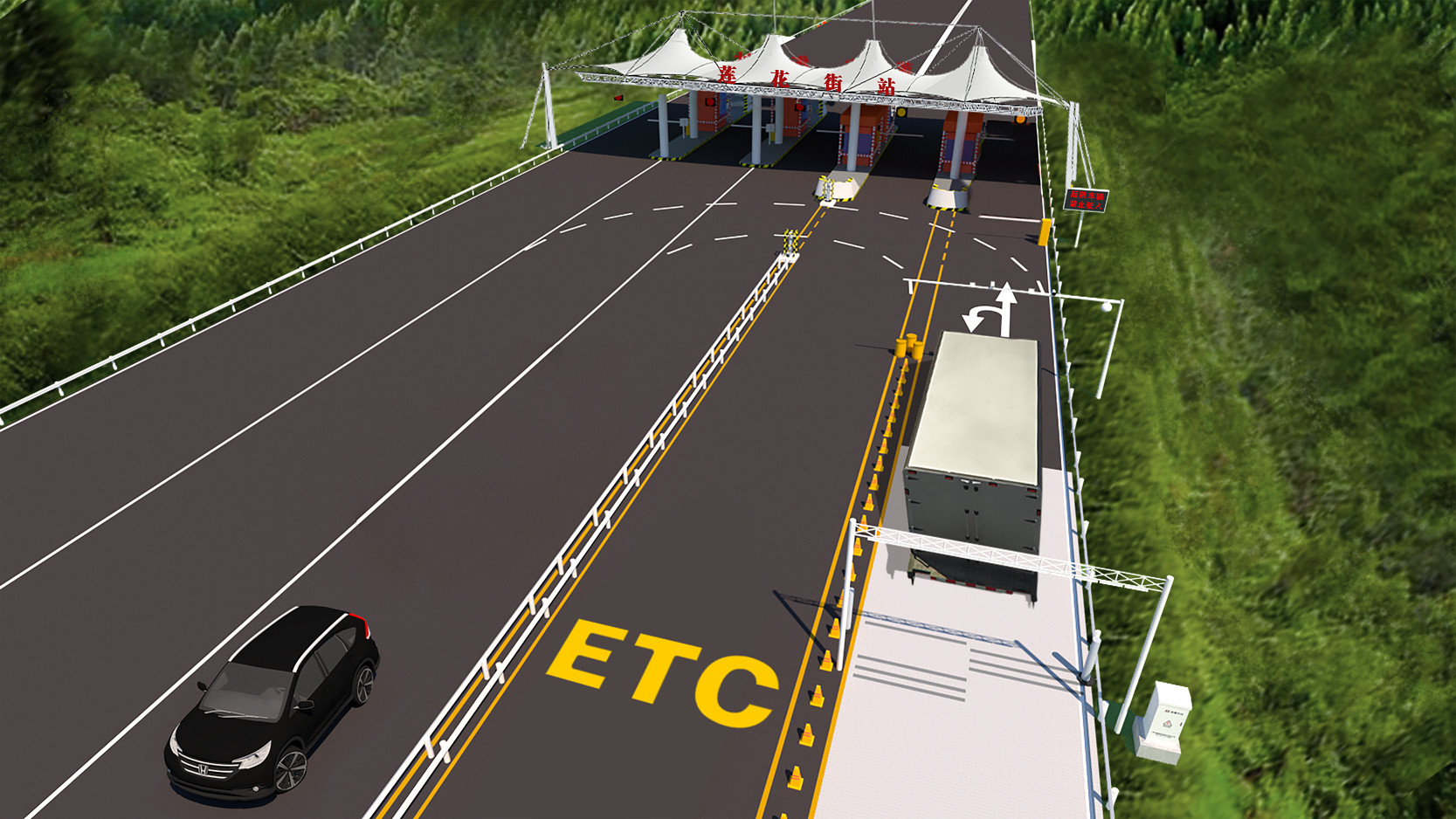

Project Cases

95% Accuracy Weigh In Motion Station Truck Scales 40T Single Axle 0
