0.5-40km/H Low Speed Weigh In Motion Station Overload Inspection

Basic Information

Place of Origin:	Zhenghou`China
Brand Name:	Hengliang
Certification:	ISO
Model Number:	ZQS-40-SY

Minimum Order Quantity:	1 SET
Price:	USD 20000-35000/SET
Packaging Details:	Wooden box
Delivery Time:	5~7days
Payment Terms:	T/T
Supply Ability:	30 SET/Month

Get Best Price Contact Now

Detail Information

Name:	Weigh In Motion Station	Voltage:	AC 220V
Weighing Error:	5%~10%	Speed Rate:	0.5~40km/h
Single Axle Load:	40Ton	Max Single Axle Load:	60Ton
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Level:	IP68
Highlight:	40km/H Weigh In Motion Station , Weigh In Motion Station Overload Inspection , Low Speed Weigh In Motion 40km/H

Product Description

Low Speed Dynamic Weighing System For Overload Inspection Station

Product Function

The system is composed of low-speed dynamic weighing equipment as the main body, supplemented by a series of peripheral equipment.

Weighing equipment includes dynamic vehicle weighing platform, axle identifier, infrared vehicle separator, axle identifier and weighing control cabinet.

Peripheral equipment includes lane controller, guidance screen, voice reminder, special keyboard, license plate recognition, etc.

Additional signs, ground markings and other auxiliary guidance facilities.

Product Parameters

Weighing error	5%~10%
Single axle load	40Ton
Max Single Load	60Ton
Speed rate	0.5~40km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Power	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

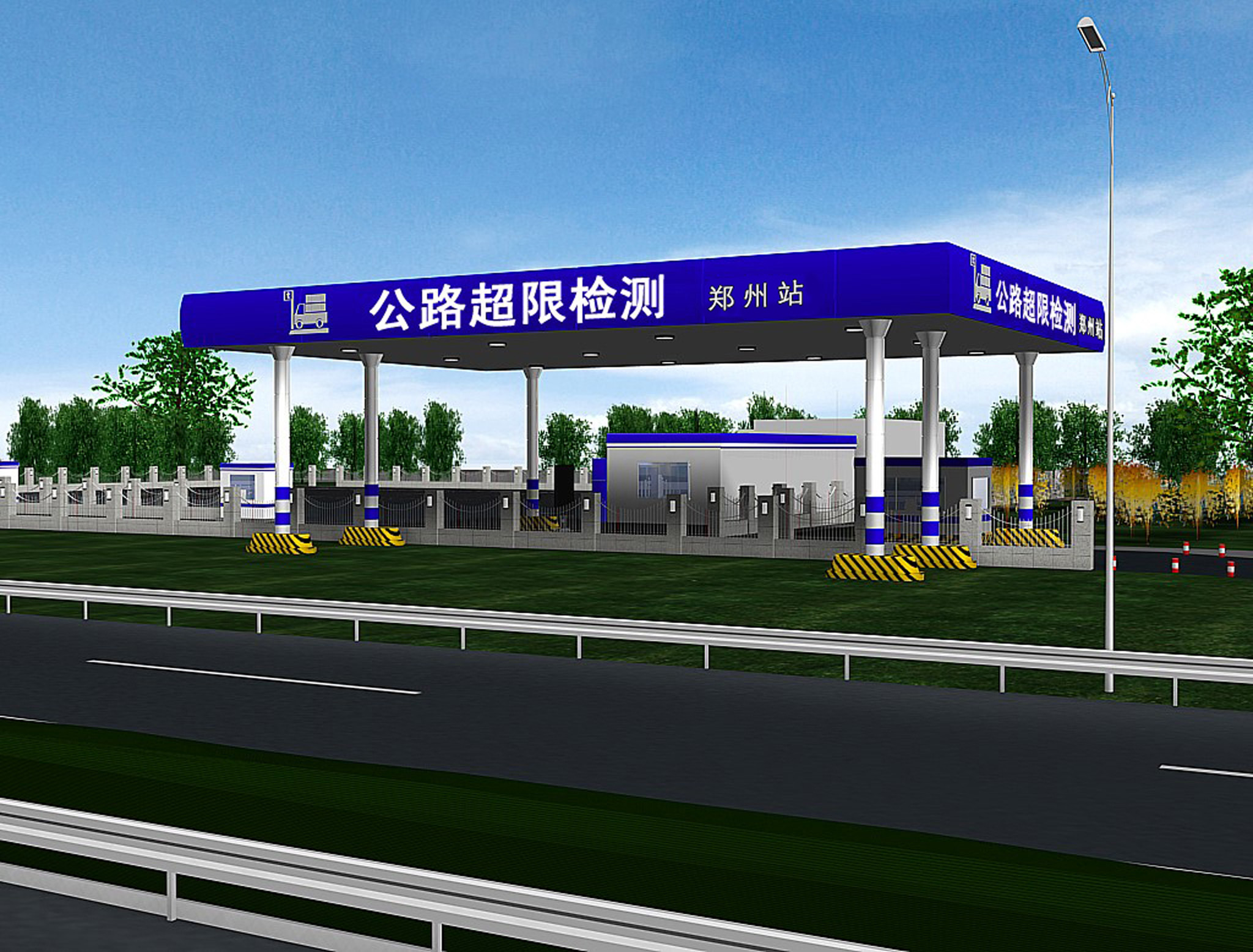

Project Cases

0.5-40km/H Low Speed Weigh In Motion Station Overload Inspection 0
