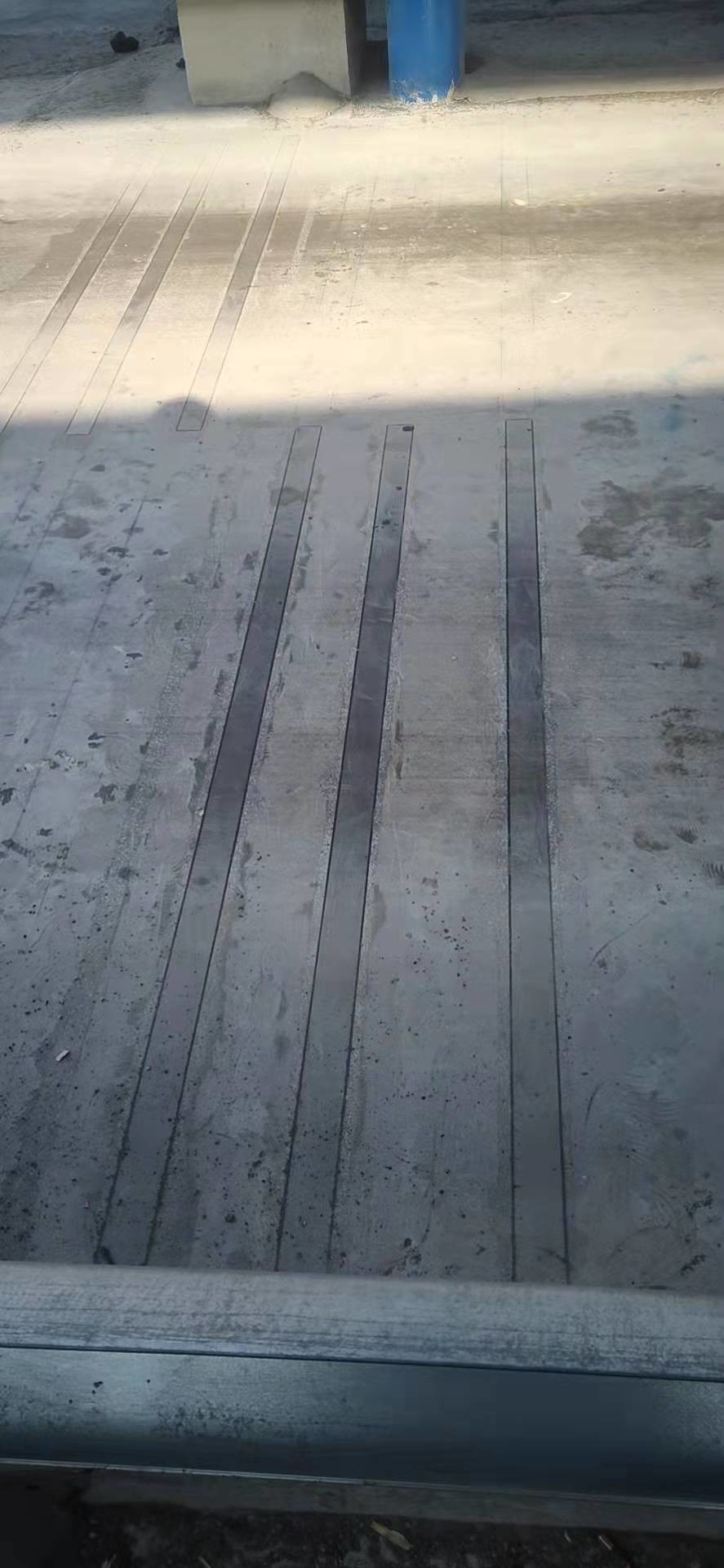

Hengliang Weigh In Motion Station IP68 Quartz Dynamic Weighing System
| Place of Origin | Zhenghou`China |
|---|---|
| Brand Name | Hengliang |
| Certification | ISO |
| Model Number | ZQS-40-SY |
| Minimum Order Quantity | 1 SET |
| Price | USD 20000-35000/SET |
| Packaging Details | Wooden box |
| Delivery Time | 5~7days |
| Payment Terms | T/T |
| Supply Ability | 30 SET/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Weigh In Motion Station | Voltage | AC 220V 50Hz |
|---|---|---|---|
| Weighing Accuracy | 90%~95% | Speed Rate | 0.5~40km/h |
| Single Axle Load | 40Ton | Max Single Axle Load | 60Ton |
| Division Value | 50kg | MTBF | ≥20000h |
| Temperature Range | -45~+80℃ | Protection Level | IP68 |
| Highlight | Hengliang Weigh In Motion Station,IP68 Quartz Dynamic Weighing System,Weigh In Motion Station IP68 |
||
Product Description
0.5~40km/H Low Speed Quartz Dynamic Weighing System For WIM Station
Product Function
-
It can detect the axle weight, total weight, vehicle type, tire type, axle number, wheelbase, vehicle speed, acceleration and other information of vehicles passing the overrun detection lane.
-
Automatically identify out of gauge vehicles and give alarm indication.
-
The dynamic weighing function can accurately weigh and identify the vehicle type when the vehicle axle stops on the scale platform.
-
The standard RS232 data interface can automatically upload the total vehicle weight, axle weight, axle shape, wheelbase, vehicle speed, overrun information, detection time and other detection information to the computer according to the specified format requirements.
Product Parameters
| Weighing error | 5%~10% |
| Single axle load | 40Ton |
| Max Single Load | 60Ton |
| Speed rate | 0.5~40km/h； |
| Speed error | ≤±1km/h |
| Wheelbase error | ≤±100mm |
| Power | AC 220V 50Hz |
| Output information | Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time |
| data interface | RJ485 |
| work environment | -45℃～80℃,0～95% |
| Confidence | ≥95% |
