Single Axle 40T Weigh In Motion Station Truck Scales IP68 Protection

Name: Single Axle 40T Weigh In Motion Station Truck Scales IP68 Protection
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                    40T Weigh In Motion Station, IP68 Weigh In Motion Station, IP68 Weigh In Motion Truck Scales


Type:	Weigh In Motion Station	Voltage:	AC 220V
Weighing Accuracy:	90%~95%	Speed Rate:	0.5~40km/h
Max Single Axle Load:	60Ton	Division Value:	50kg
MTBF:	≥20000h	Protection Level:	IP68 Protection

Type:	Weigh In Motion Station
Voltage:	AC 220V
Weighing Accuracy:	90%~95%
Speed Rate:	0.5~40km/h
Max Single Axle Load:	60Ton
Division Value:	50kg
MTBF:	≥20000h
Protection Level:	IP68 Protection

Product Description

Single Axle 40T Weigh In Motion Station Truck Scales IP68 Protection

Product Function

It can automatically judge whether the vehicle exceeds the limit.

Be able to handle the weighing process by itself.

high strength

even by force
strong lateral resistance

Product Parameters

Weighing error	5%~10%
Single axle load	40Ton
Max Single Load	60Ton
Speed rate	0.5~40km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Power	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

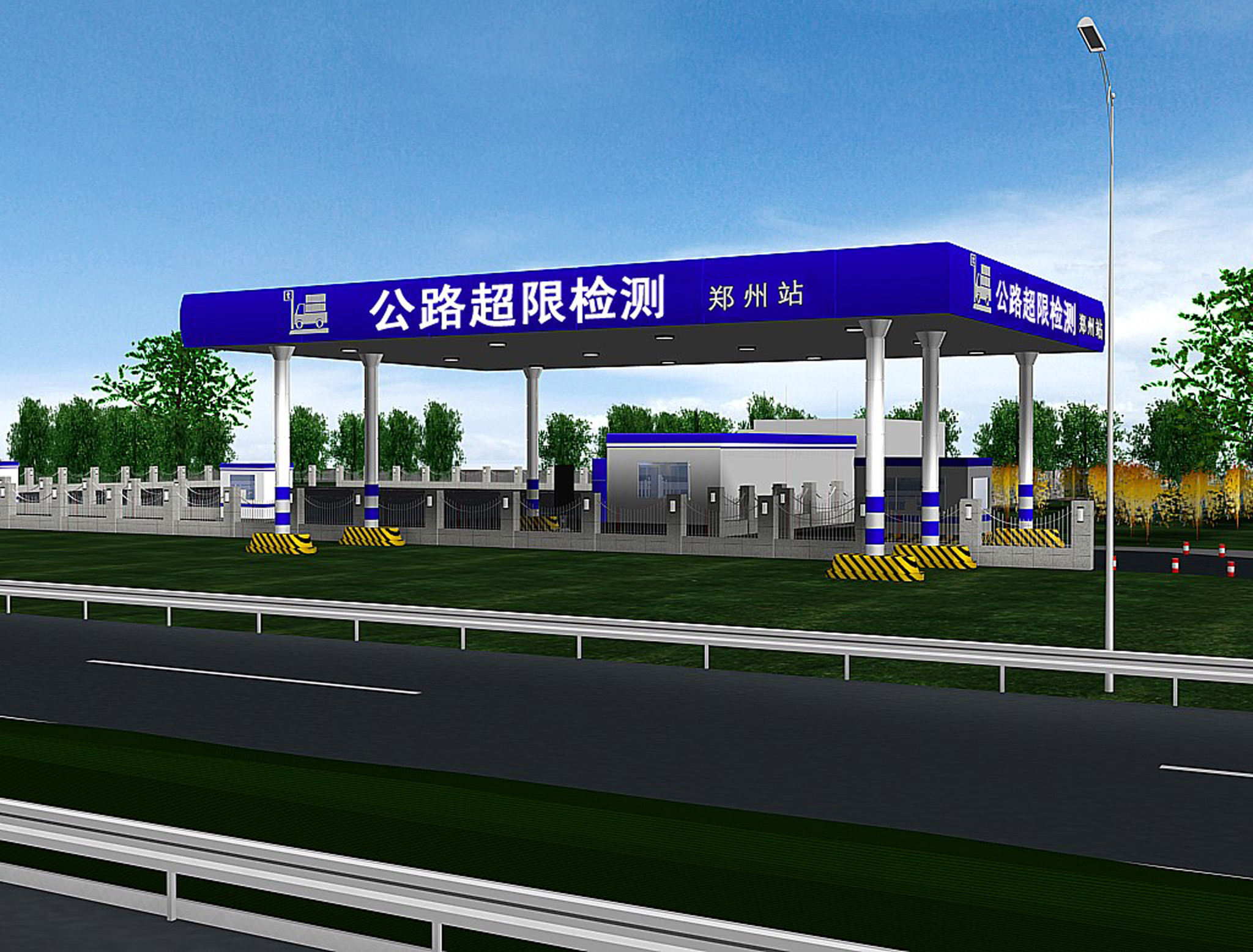

Project Cases

Single Axle 40T Weigh In Motion Station Truck Scales IP68 Protection 0
