Truck Recognition Program With IP68 Protection Level Working Humidity Range Of 0-95% Ensuring Reliable Identification Of Axle Type
| Place of Origin | China |
|---|---|
| Brand Name | HengLiang |
| Model Number | HLLP12 |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Protection Grade | IP68 | Working Voltage | DC 5V |
|---|---|---|---|
| Discrimination Accuracy | ≥99% | Sensor Width | 60mm |
| Working Current | < 0.1A | IO Output Format | Active Output |
| Function | Identification And Tracking Of Vehicles | Sensor Height | 35mm |
| Highlight | 60mm Sensor Width Truck recognition program,IP68 Truck recognition program,Reliable Truck recognition program |
||
Product Description
Product Description:

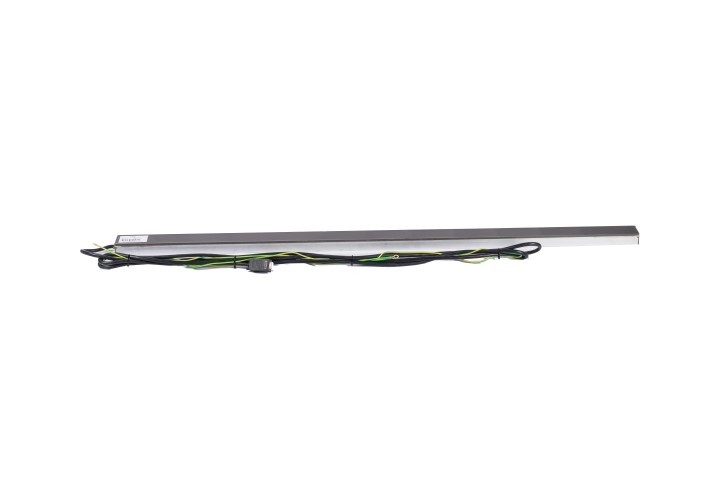

The freight vehicle identification system is a cutting-edge solution aimed at providing accurate and reliable identification of vehicle axle types. Whether you want to implement a truck axle recognition program or enhance truck axle recognition technology, this system can provide advanced functionality and performance to meet your needs.
A key feature of this system is its ability to detect axle loads with a minimum threshold of 100KG. This ensures that even vehicles of different weights can be accurately identified and verified. The sensor positions range from 12 to 14, and the system provides comprehensive coverage to capture data from multiple points on the vehicle.
Running under extreme conditions is not a problem for the system as it can withstand temperatures as low as -40 ℃ and as high as+85 ℃. This makes it suitable for various environments, ensuring reliable performance regardless of weather conditions.
In terms of connectivity, the system provides flexibility.
Features:
- Product Name: Vehicle Identification System
- Sensor width: 60mm
- Sensor height: 35mm
- IO output format: Active Output
- Output baud rate: 9600bps
- Sensor location: 12~14pieces
Technical Parameters:
| Technical Parameter | Value |
|---|---|
| Output Interface | RS232 Or RS485 |
| Working Voltage | DC 5V |
| Sensor Location | 12~14 pieces |
| IO Output Format | Active Output |
| Sensor Width | 60mm |
| Function | Identification And Tracking Of Vehicles |
| Working Humidity | Relative Humidity Range 0--95% |
| Operation Temperature | -40℃--+85℃ |
| Discrimination Accuracy | ≥99% |
| Sensor Length | 1.5m, 2m |
Applications:
The HengLiang HLLP12 vehicle axle type recognition system is a cutting-edge solution that utilizes advanced truck axle type recognition technology to provide accurate and efficient vehicle axle type recognition and tracking. The sensor positions of the system range from 12 to 14, providing comprehensive coverage for the determination of truck axle types in various scenarios.
The HLLP12 system is manufactured in China and equipped with sensors measuring 1.5 meters and 2 meters in length, ensuring flexibility in installation and use for different vehicle models. The output baud rate of the system is 9600 bps, which enables fast and reliable data transmission.
The HengLiang HLLP12 vehicle recognition system is designed for a wide range of applications and is highly suitable for use in truck axle recognition platforms, where accurate truck axle recognition is crucial.
