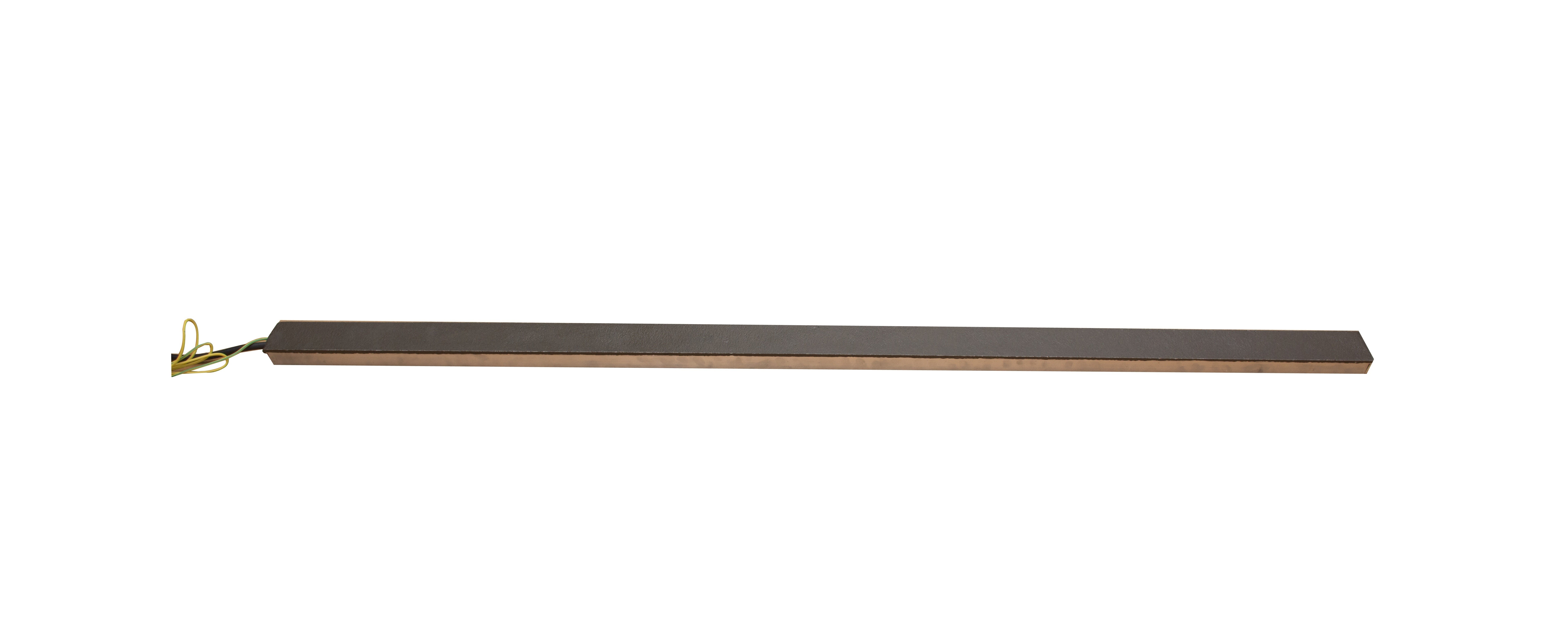

45T Load Axle Sensor In Vehicle Identification System 0.5-105km/H

Basic Information

Place of Origin:	Zhenghou`China
Brand Name:	Hengliang
Certification:	ISO
Model Number:	HLDLP18

Minimum Order Quantity:	1 PCS
Price:	USD 1200-12000/SET
Packaging Details:	Wooden box
Delivery Time:	5~7days
Payment Terms:	T/T
Supply Ability:	300 PCS/Month

Get Best Price Contact Now

Detail Information

Type:	Vehicle Identification System	Working Voltage:	DC4V~6V
Power:	< 1W	Working Electricity:	< 10mA
Identifier Rate Of Tire Type:	≥ 99%	Communication Baud Rate:	9600
On-Off Output:	Passive	Data Interface:	1RS485 Or 1RS232
Temperature:	-45~+80℃	Protection Class:	IP68
Highlight:	45T Load Axle Sensor , Vehicle Identification System Axle Sensor , 105km/H Vehicle Identification System

Product Description

45T Axle Type Sensor Of Vehicle Type Identification System

Product Description

Using advanced digital signal processing technology, the probability of misjudgment is small.
With multiple anti-interference measures, the system has good stability.
Axle number identification: it can identify the number of axles and automatically end and separate the vehicle in 10s.
Tire type identification: it can identify single and double tires and output vehicle signal (open drain output).

Product Parameters

Single axle maximum load allowed	45T
Allow passing speed	0.5~105km/h
Minimum detection width	150 mm
Insulation resistance	500 G Ω
Service life	≥ 100 million axle
Working environment temperature	-40 ~ 80℃
The protection grade	IP68
