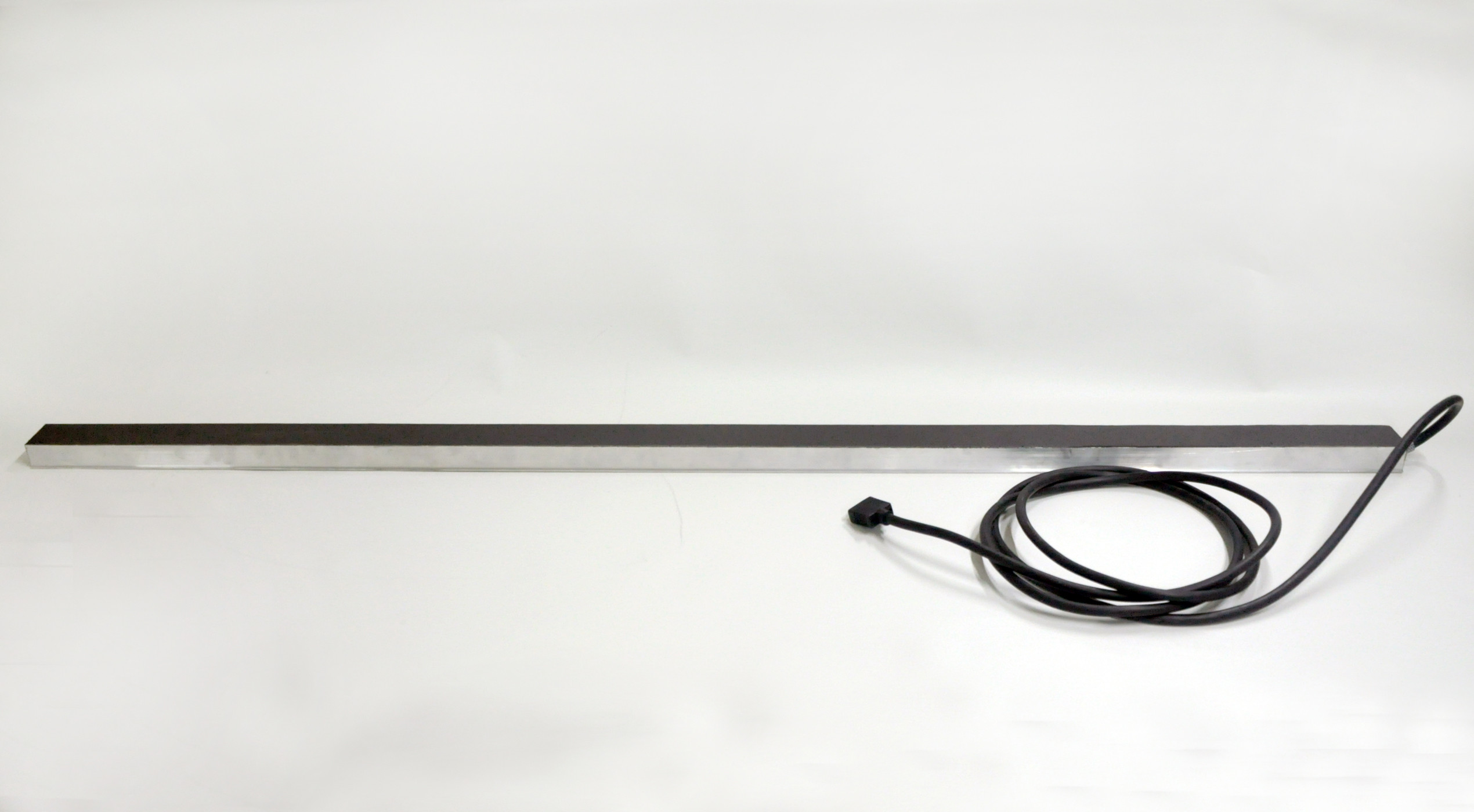

60T Tire Type Wheel Identifier Sensor Vehicle Identification System

Name: 60T Tire Type Wheel Identifier Sensor Vehicle Identification System
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: HLDLP18
Price: 6,600.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: HLDLP18

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: USD 1200-12000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 300 PCS/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    Wheel Identifier Sensor Vehicle Identification System, Tire Type Wheel Identifier Sensor, 60T Wheel Identifier Sensor


Type:	Vehicle Identification System	Voltage:	DC4V~6V
Power:	< 1W	Working Electricity:	< 10mA
Identifier Rate Of Tire Type:	≥ 99%	Communication Baud Rate:	9600
On-Off Output:	Passive	Data Interface:	1RS485 Or 1RS232
Working Temperature:	-45~+80℃	Protection Class:	IP68

Type:	Vehicle Identification System
Voltage:	DC4V~6V
Power:	< 1W
Working Electricity:	< 10mA
Identifier Rate Of Tire Type:	≥ 99%
Communication Baud Rate:	9600
On-Off Output:	Passive
Data Interface:	1RS485 Or 1RS232
Working Temperature:	-45~+80℃
Protection Class:	IP68

Product Description

Tire Type Wheel Identifier Sensor & Vehicle Identification System

Product Description

The axle identification system automatically identifies the number of axles and tires of the passing vehicle through the installed vehicle axle detection sensor under the road. The equipment is designed to cooperate with the implementation scheme of the scientific and technological overload control and supervision system at the source of freight loading. This system can accurately detect the number of axles, wheels and axle type of the passing vehicle, so as to accurately identify the vehicle type; It can be used alone or integrated with other systems such as weighing system and automatic license plate recognition system to form a complete automatic vehicle detection system.

Product Parameters

Single axle maximum load allowed	60T
Allow passing speed rate	0.5~105km/h
Minimum detection width	150 mm
Insulation resistance	500 G Ω
Service life	≥ 100 million axle
Working environment temperature	-40 ~ 80℃
The protection grade	IP68
