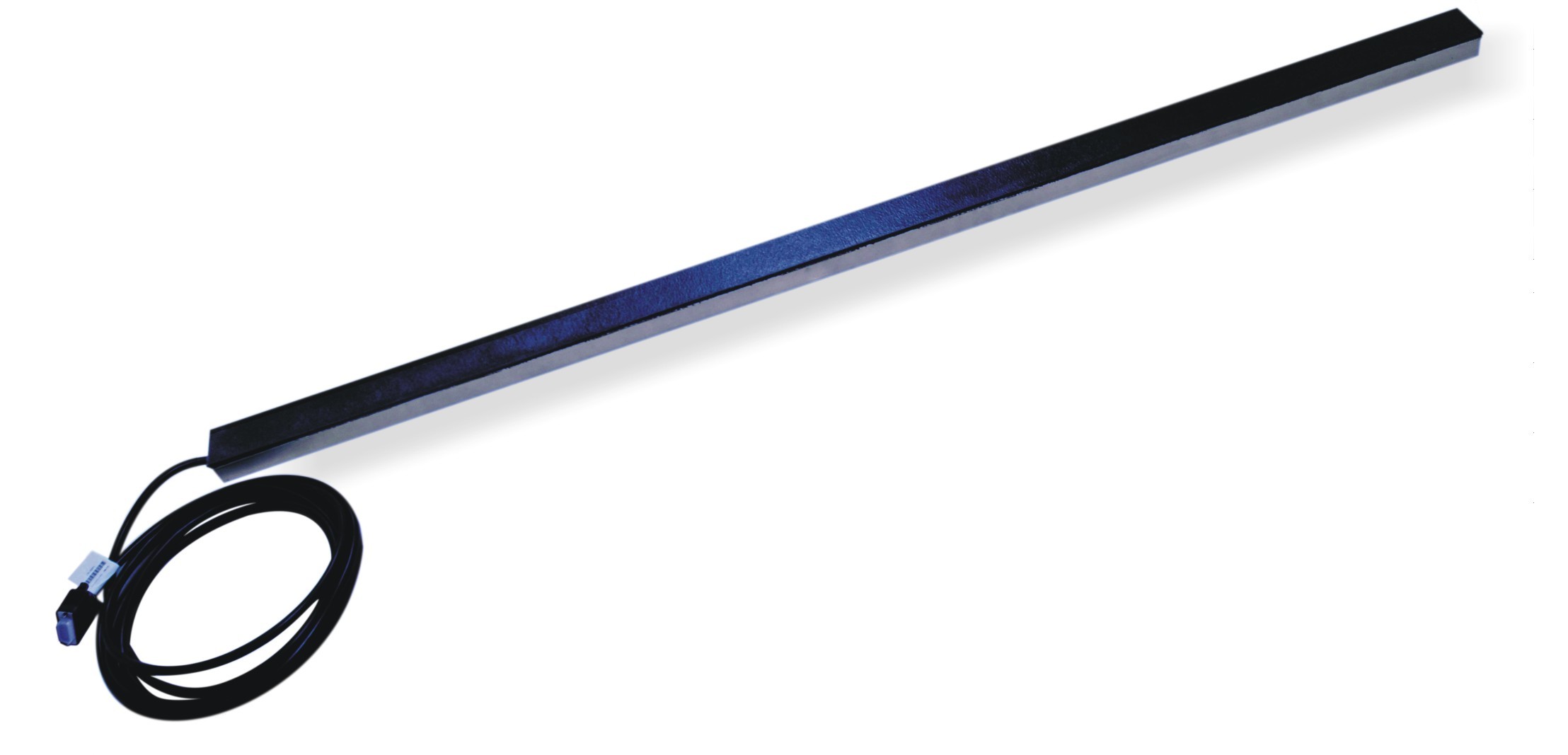

Hengliang Vehicle Identification System Axle Type Wheel Identifier Sensor

Name: Hengliang Vehicle Identification System Axle Type Wheel Identifier Sensor
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: HLDLP18
Price: 6,600.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: HLDLP18

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: USD 1200-12000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 300 PCS/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    Hengliang Vehicle Identification System, Axle Type Wheel Identifier Sensor, Hengliang Wheel Identifier Sensor


Name:	Vehicle Identification System	Power Voltage:	DC4V~6V
Power:	< 1W	Working Electricity:	< 10mA
Identifier Rate Of Tire Type:	≥ 99%	Communication Baud Rate:	9600
On-Off Output:	Passive	Data Interface:	1RS485 Or 1RS232
Working Temperature:	-45~+80℃	Protection Class:	IP68

Name:	Vehicle Identification System
Power Voltage:	DC4V~6V
Power:	< 1W
Working Electricity:	< 10mA
Identifier Rate Of Tire Type:	≥ 99%
Communication Baud Rate:	9600
On-Off Output:	Passive
Data Interface:	1RS485 Or 1RS232
Working Temperature:	-45~+80℃
Protection Class:	IP68

Product Description

Axle Type Wheel Identifier Sensor For Truck Scales Weighing Scales

Product Description

The axle identification sensor consists of several sub-sensors. When force loaded to a certain sub-sensor, this sensor outputting specific signal which accurately collected by the wheel shaft identification controller, after special treatment, outputting tire type information (single / double tire).

Product Parameters

Single axle maximum load allowed	45T
Allow passing speed	0.5~105km/h
Minimum detection width	150 mm
Insulation resistance	500 G Ω
Service life	≥ 100 million axle
Working environment temperature	-40 ~ 80℃
The protection grade	IP68
