Products

Home > Products > Weigh In Motion Sensors > Quartz Dynamometry Weigh In Motion Sensors 0.5 ~ 105km/H

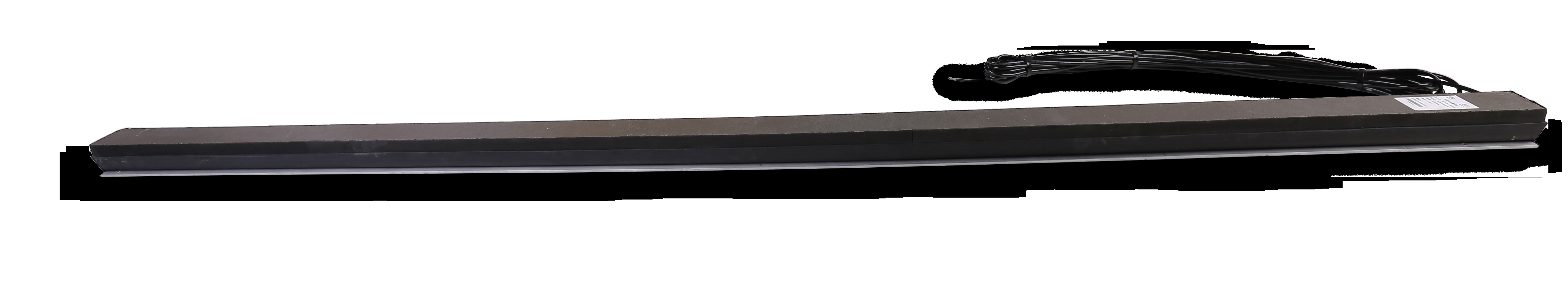

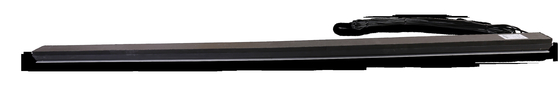

Quartz Dynamometry Weigh In Motion Sensors 0.5 ~ 105km/H

Name: Quartz Dynamometry Weigh In Motion Sensors 0.5 ~ 105km/H
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: HL-S-QZ70
Price: 6,600.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: HL-S-QZ70

Payment & Shipping Terms

Minimum Order Quantity: 6 PCS

Price: USD 1200-12000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 300 PCS/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    Quartz Weigh In Motion Sensors, Piezoelectric Weigh In Motion Sensors, 105km/H Weigh In Motion Sensors


Name:	Weigh In Motion Sensors	Speed Range:	0.5 ~ 105km / H
The Error Range Of Total Weight:	≤ ± 5%	Axle Load Error Range:	≤ ± 10%
Speed Error:	≤1km / H	Maximum Overload:	150%
Sensitivity On The Sensor Length Changes:	≤ ± 3%	Linearity:	≤ ± 2 FOS%
Working Temperature:	-45 ℃ ~ 80 ℃	Certification:	ISO

Name:	Weigh In Motion Sensors
Speed Range:	0.5 ~ 105km / H
The Error Range Of Total Weight:	≤ ± 5%
Axle Load Error Range:	≤ ± 10%
Speed Error:	≤1km / H
Maximum Overload:	150%
Sensitivity On The Sensor Length Changes:	≤ ± 3%
Linearity:	≤ ± 2 FOS%
Working Temperature:	-45 ℃ ~ 80 ℃
Certification:	ISO

Product Description

Quartz Dynamometry Weigh In Motion Sensors 0.5 ~ 105km/H

Product Application

1, Free way, high way speeding monitoring governance

2, Highway weight charges

3, Road traffic statistic, vehicle classification

4, Road carrying capacity scientific research

Product Parameters

Velocity range	0.5 ~ 105km / h
The error range of total weight	≤ ± 5%
Axle load error range	≤ ± 10%
Speed error	≤1km / h
Single axle rated load	30t
Maximum overload	150%
Nominal sensitivity	-1.54 ± 7% PC / N
Linearity	DC15 ~ 30V
Working temperature	-45 ℃ ~ 80 ℃
Insulation resistance	> 100 GΩ
Life	≥ one hundred million axle
Protection level	IP68
