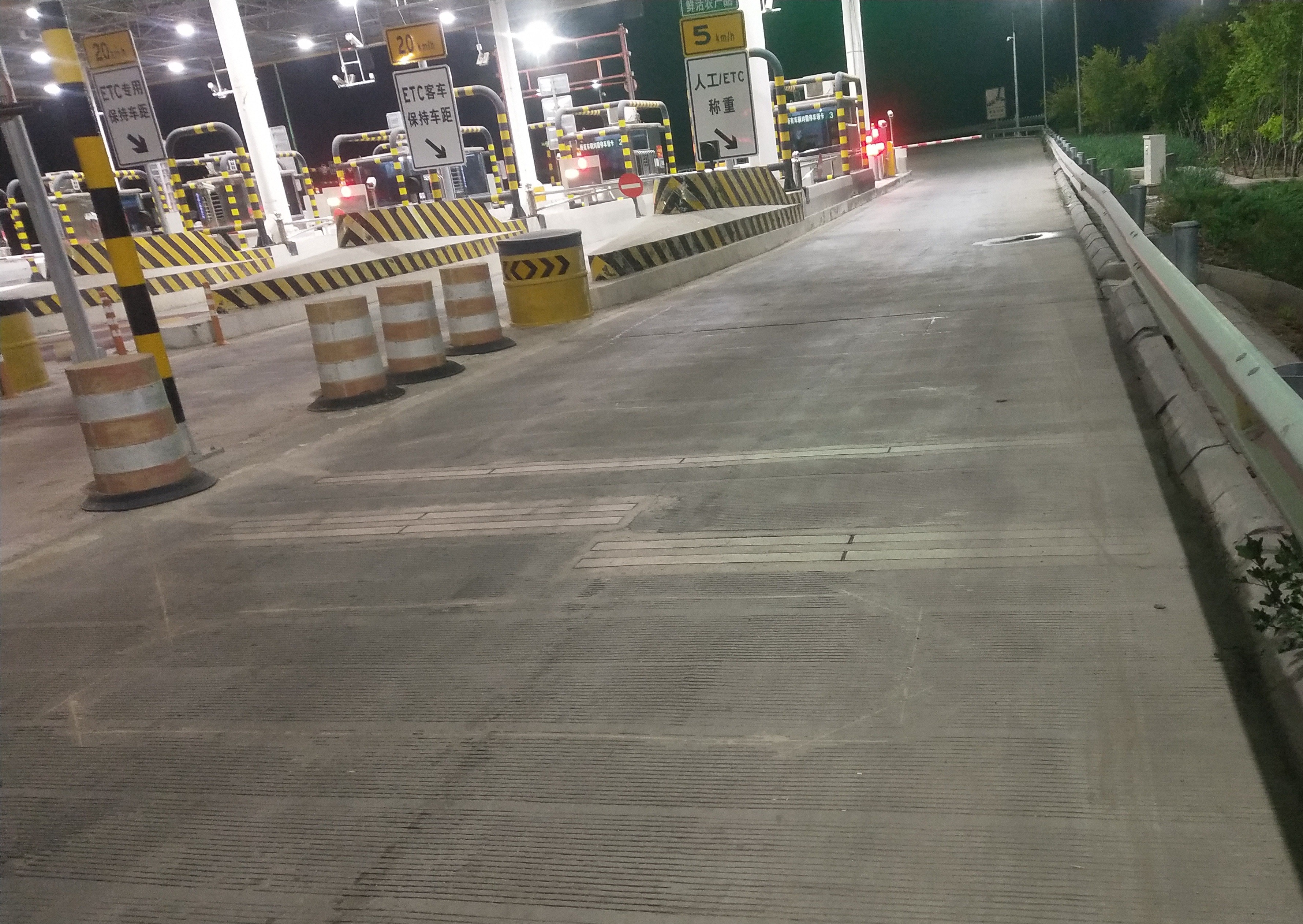

0.5-40km/H Low Speed Weigh In Motion Tollstation Overload Management
| Place of Origin | Zhenghou`China |
|---|---|
| Brand Name | Hengliang |
| Certification | ISO |
| Model Number | ZQS-40-SY |
| Minimum Order Quantity | 1 SET |
| Price | USD 20000-35000/SET |
| Packaging Details | Wooden box |
| Delivery Time | 5~7days |
| Payment Terms | T/T |
| Supply Ability | 30 SET/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Low Speed Weigh In Motion | Power | AC 110V~220V |
|---|---|---|---|
| Weighing Accuracy | 90%~95% | Speed Rate | 0.5~40km/h |
| Axle Load | 40T (single Axle) | Max Single Axle Load | 60T |
| Division Value | 50kg | MTBF | ≥20000h |
| Temperature Range | -45~+80℃ | Protection Level | IP68 |
| Highlight | 40km/H Low Speed Weigh In Motion,Tollstation Low Speed Weigh In Motion,slow speed weigh in motion 40km/H |
||
Product Description
0.5~40km/H Toll Station Overload Management System & Single Axle 40T
Product Function
To improve the reliability, stability and measurement accuracy of data collector through multiple weighing operations, weighted average method, filtering of abnormal signals
By using track detection technique and intelligent algorithm, the consistency error of quartz sensor is reduced to the minimum of the measurement error of Low Speed WIM System.
Product Parameters
| Weighing error | 5%~10% |
| Single axle load | 40Ton |
| Max Single Load | 60Ton |
| Speed rate | 0.5~40km/h； |
| Speed error | ≤±1km/h |
| Wheelbase error | ≤±100mm |
| Power | AC 220V 50Hz |
| Output information | Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time |
| data interface | RJ485 |
| work environment | -45℃～80℃,0～95% |
| Confidence | ≥95% |
