40T Dynamic Weighing Low Speed Weigh In Motion Wim Hengliang

Basic Information

Place of Origin:	Zhenghou`China
Brand Name:	Hengliang
Certification:	ISO
Model Number:	ZQS-40-SY

Minimum Order Quantity:	1 SET
Price:	USD 20000-35000/SET
Packaging Details:	Wooden box
Delivery Time:	5~7days
Payment Terms:	T/T
Supply Ability:	30 SET/Month

Get Best Price Contact Now

Detail Information

Type:	Low Speed Weigh In Motion	Voltage:	AC 110V~220V
Weighing Error:	5%~10%	Speed Rate:	0.5~40km/h
Axle Load:	40T (single Axle)	Max Single Axle Load:	60T
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Level:	IP68
Highlight:	Hengliang Low Speed Weigh In Motion , 40T Dynamic Low Speed Weigh In Motion , Weigh In Motion Wim Hengliang

Product Description

Low Speed Dynamic Weighing System Of Toll Station & Truck Scales

Product Function

vehicle passing the weighing area, the axle running on the quartz sensor and track detecting sensor paved in the lane, the signal generated by the quartz sensor collected, analyzed and processed by data collector, and sent to the weighing meter; the signal from the track detecting sensor , collected, processed and analyzed by the weighing meter, to acquire the driving track of vehicle.

Product Parameters

Weighing error	5%~10%
Single axle load	40Ton
Max Single Load	60Ton
Speed rate	0.5~40km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Power	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

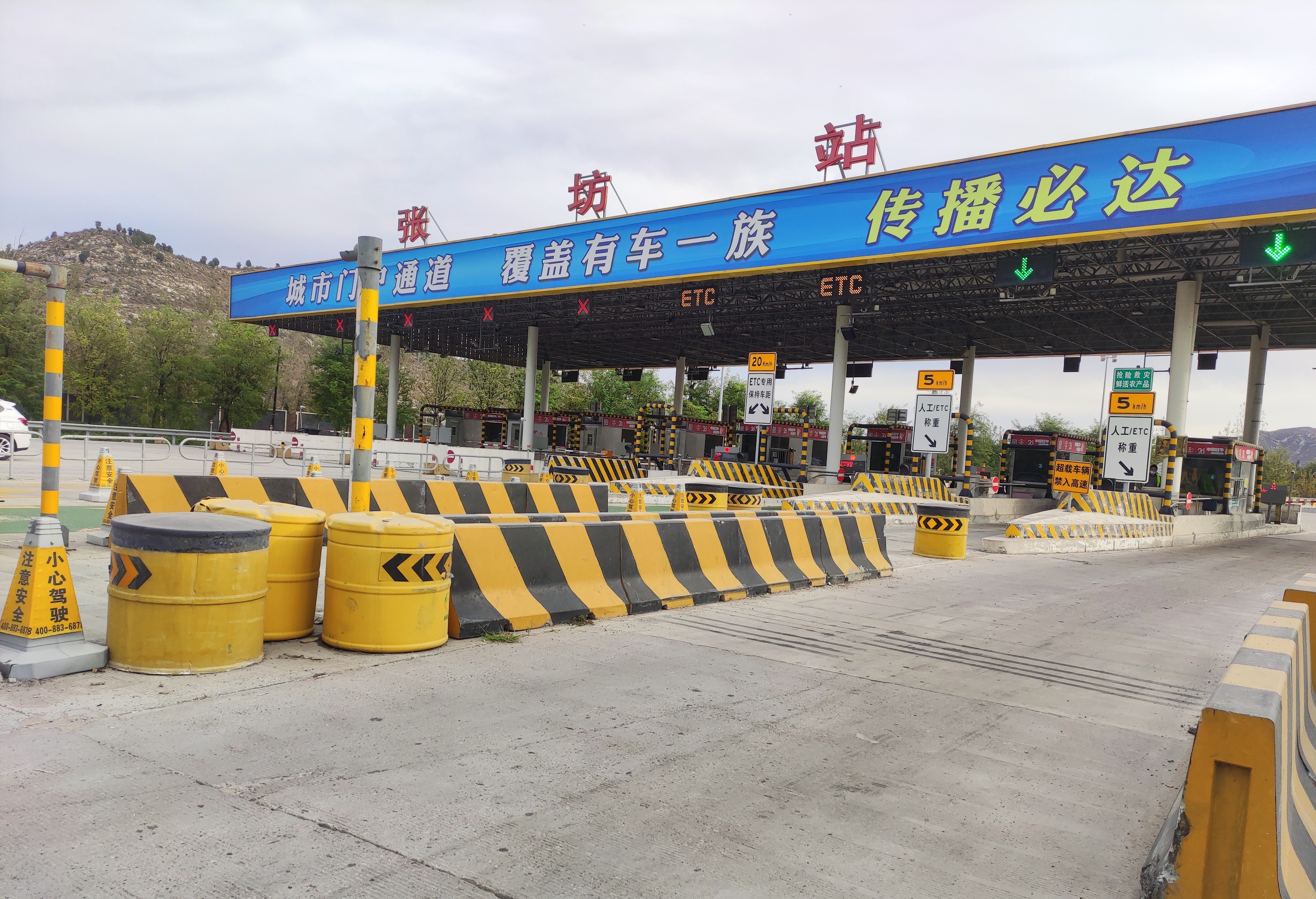

Project Cases

40T Dynamic Weighing Low Speed Weigh In Motion Wim Hengliang 0
