95% Precision Low Speed Weigh In Motion Single Axle Load 60T

Basic Information

Place of Origin:	Zhenghou`China
Brand Name:	Hengliang
Certification:	ISO
Model Number:	ZQS-40-SY

Minimum Order Quantity:	1 SET
Price:	USD 20000-35000/SET
Packaging Details:	Wooden box
Delivery Time:	5~7days
Payment Terms:	T/T
Supply Ability:	30 SET/Month

Get Best Price Contact Now

Detail Information

Name:	Low Speed Weigh In Motion	Working Voltage:	AC 110V~220V
Weighing Error:	5%~10%	Speed Rate:	0.5~40km/h
Axle Load:	40T (single Axle)	Single Axle Overload:	150%
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Level:	IP68
Highlight:	95% precision Low Speed Weigh In Motion , In Motion Axle Scale Load 60T , 60T Load Low Speed Weigh In Motion

Product Description

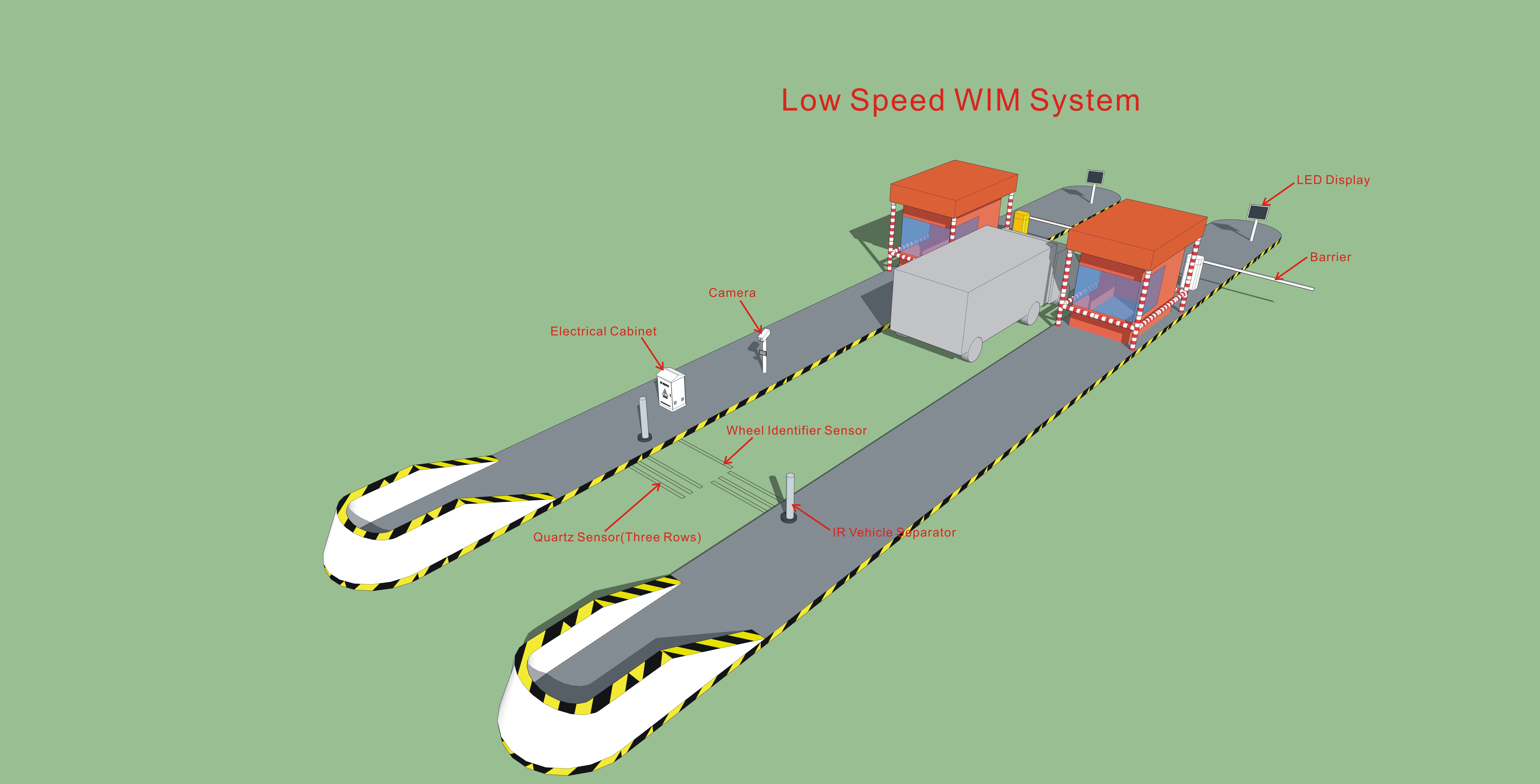

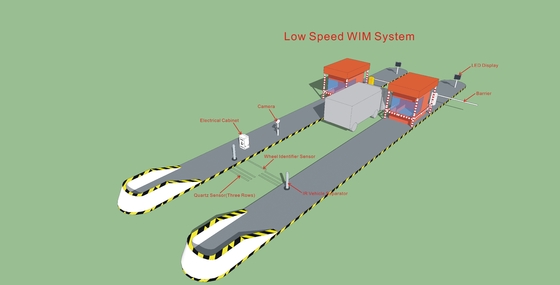

Max Single Axle Load 60T Low Speed Weigh In Motion System

Product Function

Low Speed WIM System refers to a group of installed sensors and electronic instruments containing software, used for measuring dynamic tire force and the vehicle through time and provide the calculation of wheel weight, axle load, total weight (such as speed, wheelbase), by measuring and analyzing the dynamic tire force calculating the total and partial weight of a moving vehicle; mainly applied in the expressway and other highways, ports and logistics distribution center.

Product Parameters

Weighing error	5%~10%
Single axle load	40Ton
Max Single Load	60Ton
Speed rate	0.5~40km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Power	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

Project Cases

95% Precision Low Speed Weigh In Motion Single Axle Load 60T 0
