IP68 Low Speed Weigh In Motion System AC220V 50Hz 40T Single Axle

Basic Information

Get Best Price Contact Now

Detail Information

Type:	Low Speed Weigh In Motion	Power:	AC 220V
Weighing Accuracy:	90%~95%	Speed Rate:	0.5~40km/h
Single Axle Load:	40T	Max Single Axle Load:	60T
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Level:	IP68
Highlight:	IP68 Low Speed Weigh In Motion , Weigh In Motion System AC220V 50Hz , 40T Single Axle Weigh In Motion System

Product Description

Low Speed Weigh In Motion System At Entrance And Exit & 40T Single Axle

Product Function

It can detect the axle, axle group and vehicle weight of the vehicle;

It Can detect the vehicle speed;

It can basically distinguish vehicle types (by axle number and axle type);

Be able to record the passing time of vehicles.

Product Parameters

Weighing error	5%~10%
Single axle load	40Ton
Max Single Load	60Ton
Speed rate	0.5~40km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Power	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

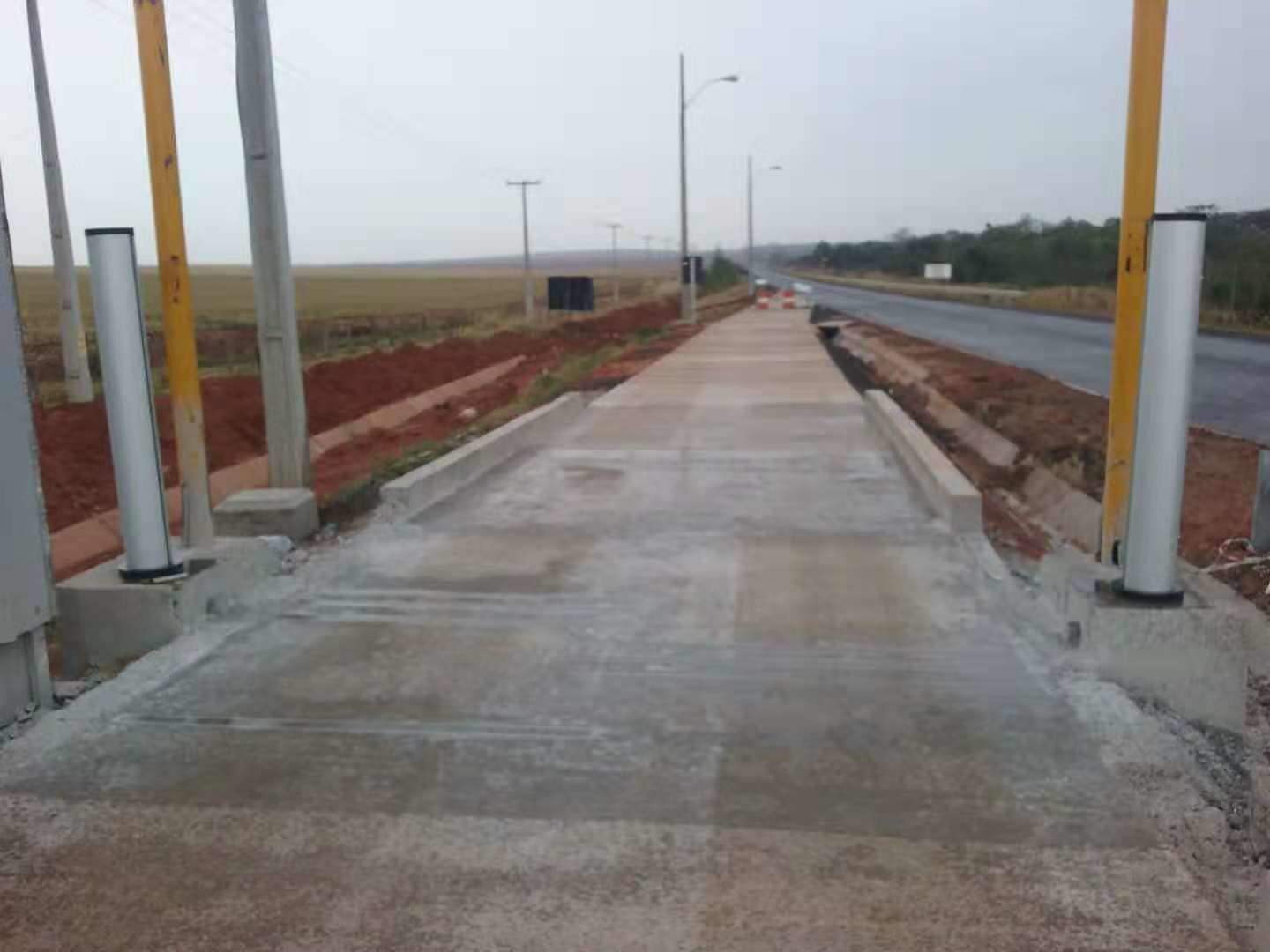

Project Cases

IP68 Low Speed Weigh In Motion System AC220V 50Hz 40T Single Axle 0
