Intelligent Traffic System ITS Equipment Vehicle Measurement Sensor With Infrared Laser Source And Eye-Safe Laser Class

Name: Intelligent Traffic System ITS Equipment Vehicle Measurement Sensor With Infrared Laser Source And Eye-Safe Laser Class
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: VMS26
Price: 25,400.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Hengliang

Model Number: VMS26

Payment & Shipping Terms

Minimum Order Quantity: 1 UNIT

Packaging Details: Cartons

Delivery Time: 7-10 working days

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                            Eye-Safe Laser Measurement Sensor, Infrared Laser Measurement Sensor, Vehicle Measurement Sensor ITS


Storage Temperature:	-40°C To 70°C	Function:	Real-time Traffic Monitoring And Control
Power Supply:	Electricity	Application:	Transportation Management
Additional Features:	Intelligent Algorithms, Remote Control Capabilities	Product Type:	Traffic Control Equipment
Dimensions:	Varies Depending On Specific Product

Storage Temperature:	-40°C To 70°C
Function:	Real-time Traffic Monitoring And Control
Power Supply:	Electricity
Application:	Transportation Management
Additional Features:	Intelligent Algorithms, Remote Control Capabilities
Product Type:	Traffic Control Equipment
Dimensions:	Varies Depending On Specific Product

Product Description

The vehicle measurement Sensor is based on high-frequency laser scanning technology, which obtains real-time raw scanning data through the vehicle contour through non-contact means. The radar data processing unit processes the scanning data through algorithms to obtain the length, width, and height data of the vehicle contour.

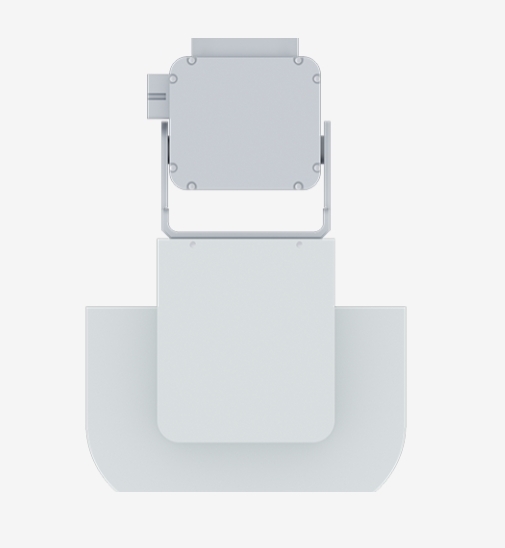

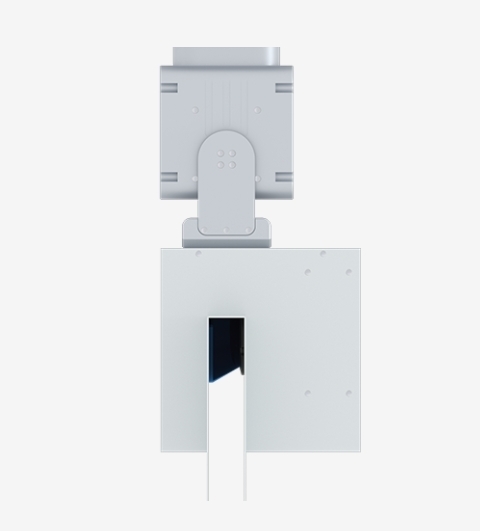

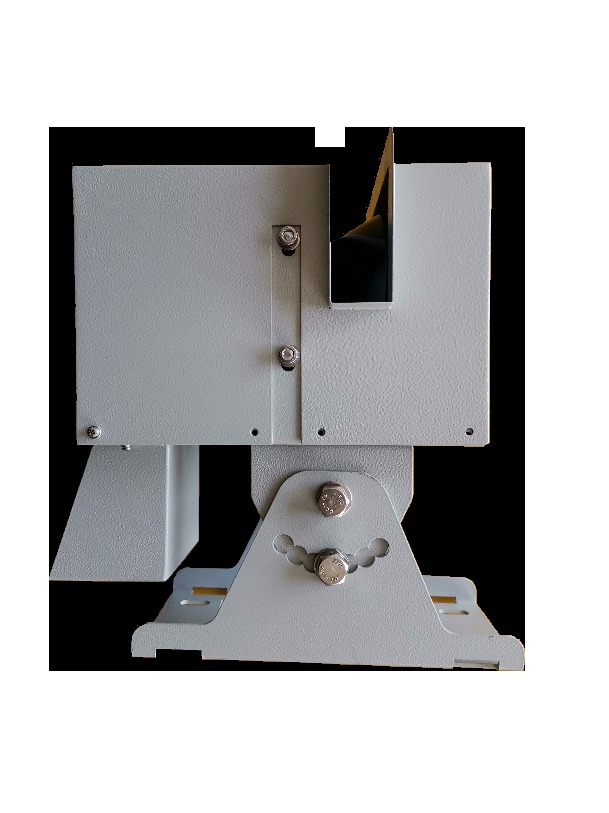

Intelligent Traffic System ITS Equipment Vehicle Measurement Sensor With Infrared Laser Source And Eye-Safe Laser Class 0

Features

Scanning frequency	50HZ
Angular resolution	0.5°/0.25°
Operating range	0.5m…60m @10%
Aperture angle	270°
Field of application	Indoor/Outdoor
Laser source	Infrared(905nm)
Laser class	1, eye-safe (IEC 60825-1:2014)
Divergence angle of light spot	6±1mrad

Performance

Response time	90±20ms
System error	5%~10%
Number of field set	64

Interfaces

Ethernet TCP/IP	100Base-TX
RS485	1
Switching inputs	2
Switching outputs	2, MaxDC24V0.5A
Synchronization input	1
Synchronization output	1

Mechanics/Electronic

Operating voltage	DC9～36V, Recommended voltage: DC24 V / DC12 V
Electrical connection	connection“Power” ,”Ethernet “connection, RS485, IO-link
Power consumption	Typical ≤ 15W, Heating ≤ 55W(-W)
Enclosure rating	IP66
Weight	1.9kg
Dimensions	Rear outlet: 136mm × 129mm × 205.5mm

Ambient Data

Target reflectivity	2%～200%
Electrostatic discharge immunity	Contact level 2 4KV air level 3 8Kv
Electrical fast transient burst immunity	Level 3: 2KV power supply and 1kV signal
Surge impact immunity	Level 3: line to line 1kV line to ground 2KV
Ambient operating temperature	–55 °C ... +80 °C
Ambient operating humidity	0%~95%
Ambient light immunity	80000lux
