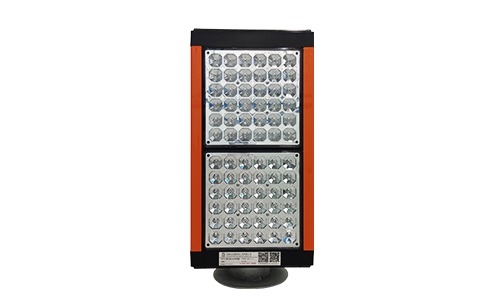

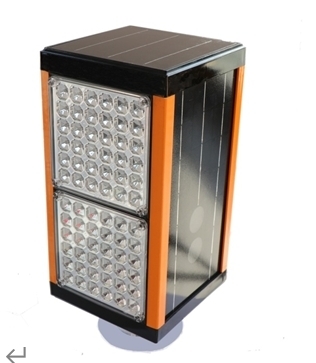

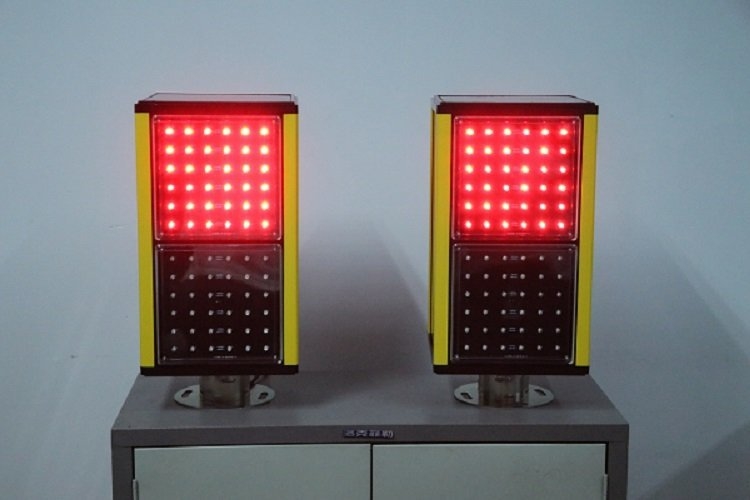

Intelligent Traffic System ITS Equipment Smart Fog Indicative Light For Safe Driving In Low Visibility Conditions

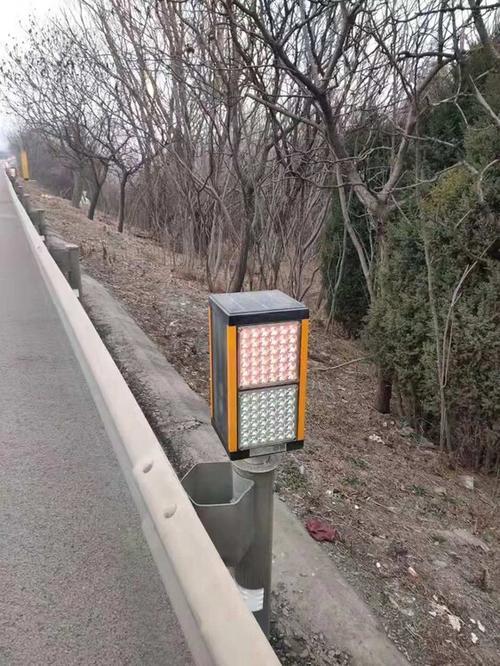

Smart Fog Indicative Light is used in foggy, misty, cloudy, mountainous roads with low visibility, construction roads, bridges, ramps, intersections, curves, and dangerous roads with potential safety hazards. It can remind drivers to drive safely and warn them, and visually enhance the road contour.

Technical specification:

1. Housing Material: plastic steel sections and ABS engineering plastic with anti-aging treatment, galvanized or painted steel base, reflector cup on the back of the lamp bead (diffuse reflection or reflector cup optional)

2. Brightness: Eight levels of brightness control; Min: 500d/m2, Max:7000cd/m2.

3. Light emitting surface size: 156mm*156mm*4 sides

Product appearance dimensions: 201*205*390mm

Lamp structure: Back-to-back (double-side lamp panel)

4. LED Quantity: yellow 36*2 sides, red 36 *2 sides;

LED wavelength: yellow 590 ~ 595 nm, red 620~-630nm,

Single LED brightness: 4500 ~ 6000 mcd

5. Normal service life of LED: ≥ 110000

Power: ≤ 1W

6. Working mode: 24-hour continuous standby and operation, automatic power on and off at a scheduled time, remote control by the host, and can be linked with the visibility detector.

7. Flashing mode: supports road contour enhancement mode, active driving guidance mode, rear end collision prevention warning mode, accident or construction warning mode, etc.

8. Flashing frequency: Constant on, 15 times/minute, 30 times/minute, 60 times/minute, 120 times/minute, can be set.

9. Visual range: ≥1000m

10. Vehicle distance guidance detector: radar detection.

      Vehicle detection distance: > 20m

      Driving active guidance system distance: 100m

11. Wireless frequency: 433 MHz, capable of connected with the IoT.

12. Working temperature: -35°C ~ 75°C Working humidity: ≤95%

13. Wind pressure resistance: ≥1.5KN/m2

14. IP Class: IP65

15. Control software: supports GIS online management (geographic information system positioning management, system map page displays real-time positioning), supports cloud remote control (mobile phone, computer and handheld device remote control).
