Quartz Dynamometry Bridge Weigh In Motion System Overrun Control IP68
| Place of Origin | Zhenghou`China |
|---|---|
| Brand Name | Hengliang |
| Certification | ISO |
| Model Number | ZQS-40-SY |
| Minimum Order Quantity | 1 SET |
| Price | USD 20000-35000/SET |
| Packaging Details | Wooden box |
| Delivery Time | 5~7days |
| Payment Terms | T/T |
| Supply Ability | 30 SET/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Bridge Weigh In Motion | Working Power | AC 220V |
|---|---|---|---|
| Weighing Accuracy | 90%~97% | Speed Rate | 0.5~105km/h |
| Single Axle Load | 40T | Single Axle Overload | 150% |
| Division Value | 50kg | MTBF | ≥20000h |
| Temperature Range | -45~+80℃ | Protection Level | IP68 |
| Highlight | Bridge Weigh In Motion Overrun Control,Quartz Piezoelectric Weigh In Motion System,IP68 Bridge Weigh In Motion |
||
Product Description
Quartz Bridge Overrun Control Weighing System & Axle Scales
Product Function
- Monitor and count the traffic flow through the bridge.
- It can detect and analyze the axle load and vehicle weight of vehicles passing through the bridge, automatically identify overweight vehicles, capture the body of overweight vehicles and recognize the license plate; Issue a prompt for illegal vehicles and prohibit them from entering the bridge.
- Capture, record and collect evidence of vehicles on the bridge in violation of regulations, so as to provide data for future processing.
- Realize 24-hour uninterrupted video monitoring of vehicles passing through the sensor area, and the video picture is transmitted to the monitoring screen in real time through the network. The management personnel call the video surveillance video within 1 month.
- Realize the functions of classified storage, query and printing of traffic flow monitoring, statistical data, overload data of overloaded vehicles and photos.
Product Parameters
| Weighing accuracy | 90%~97% |
| Single axle load | 40Ton |
| Max Load | 60Ton |
| Speed | 0.5~105km/h； |
| Speed error | ≤±1km/h |
| Wheelbase error | ≤±100mm |
| Working voltage | AC 220V 50Hz |
| Output information | Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time |
| Maximum number of lanes | 8 lanes |
| Data storage | It can store up to 10000 pieces of vehicle information data |
| data interface | RJ485 |
| work environment | -45℃～80℃,0～95% |
| Confidence | ≥95% |

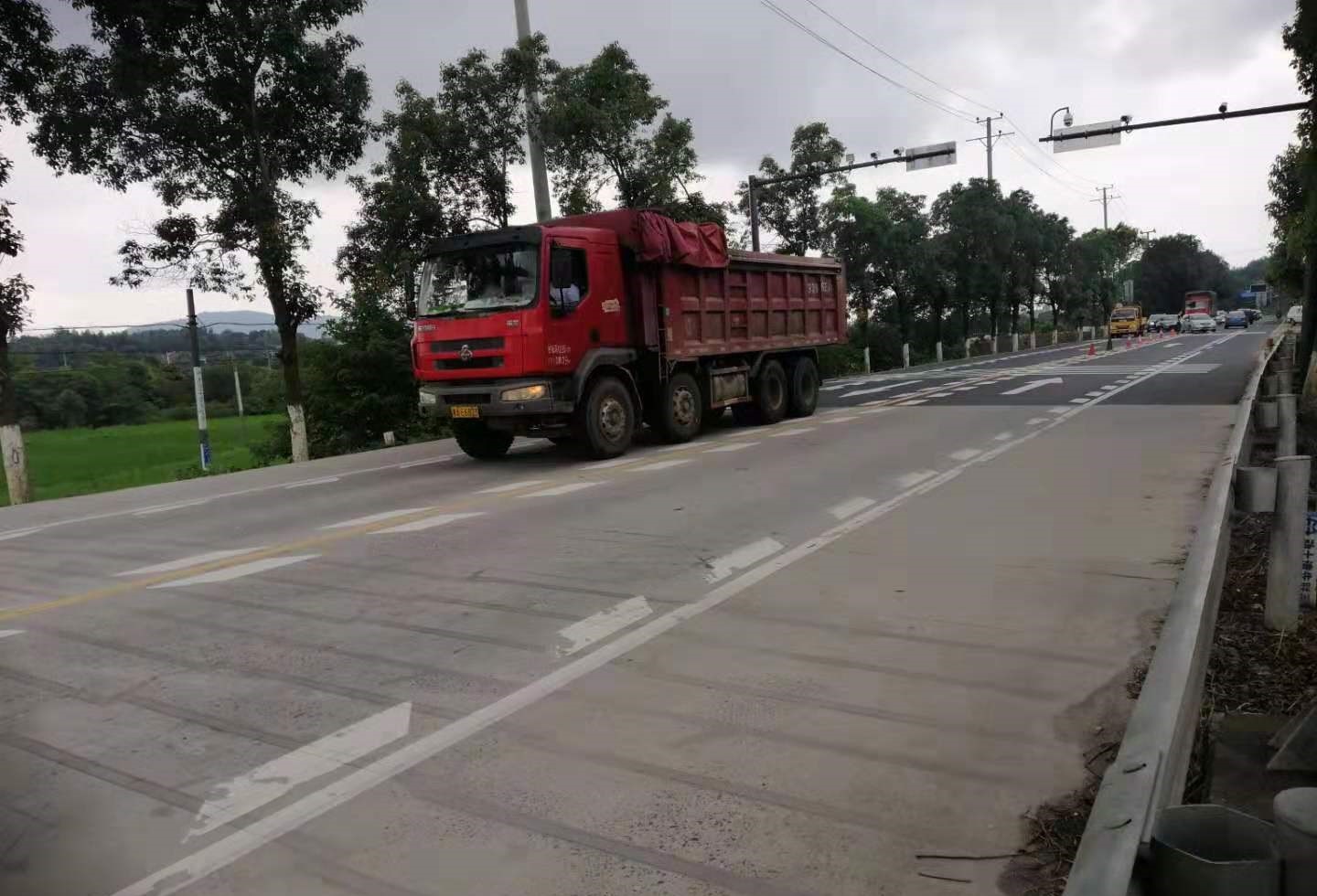

Project Case
