Hengliang Bridge Weigh In Motion Scales 8 lanes Truck Axle Scales

Name: Hengliang Bridge Weigh In Motion Scales 8 lanes Truck Axle Scales
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    Hengliang Weigh In Motion Scales, 8 Lanes Truck Axle Scales, Hengliang Bridge Weigh In Motion


Name:	Bridge Weigh In Motion	Voltage:	AC 110V~220V
Weighing Error:	3%~10%	Speed Rate:	0.5~105km/h
Axle Load:	40T (single Axle)	Single Axle Overload:	150%
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Level:	IP68

Name:	Bridge Weigh In Motion
Voltage:	AC 110V~220V
Weighing Error:	3%~10%
Speed Rate:	0.5~105km/h
Axle Load:	40T (single Axle)
Single Axle Overload:	150%
Division Value:	50kg
MTBF:	≥20000h
Temperature Range:	-45~+80℃
Protection Level:	IP68

Product Description

0.5~105km/H High Speed Dynamic Bridge Protection System & WIM Scales

Product Function

The traffic load of highway and bridge is one of the key variables in the design and Performance Research of highway and bridge. The traffic load distribution of pavement and bridge is the key to understand the degradation of pavement and bridge and evaluate the design. Effectively obtaining traffic data including road and bridge loads is an important task of highway traffic investigation. The high-speed dynamic vehicle weighing system can detect the weight, speed, flow, spacing and vehicle type of running vehicles without affecting the normal traffic of roads and bridges.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

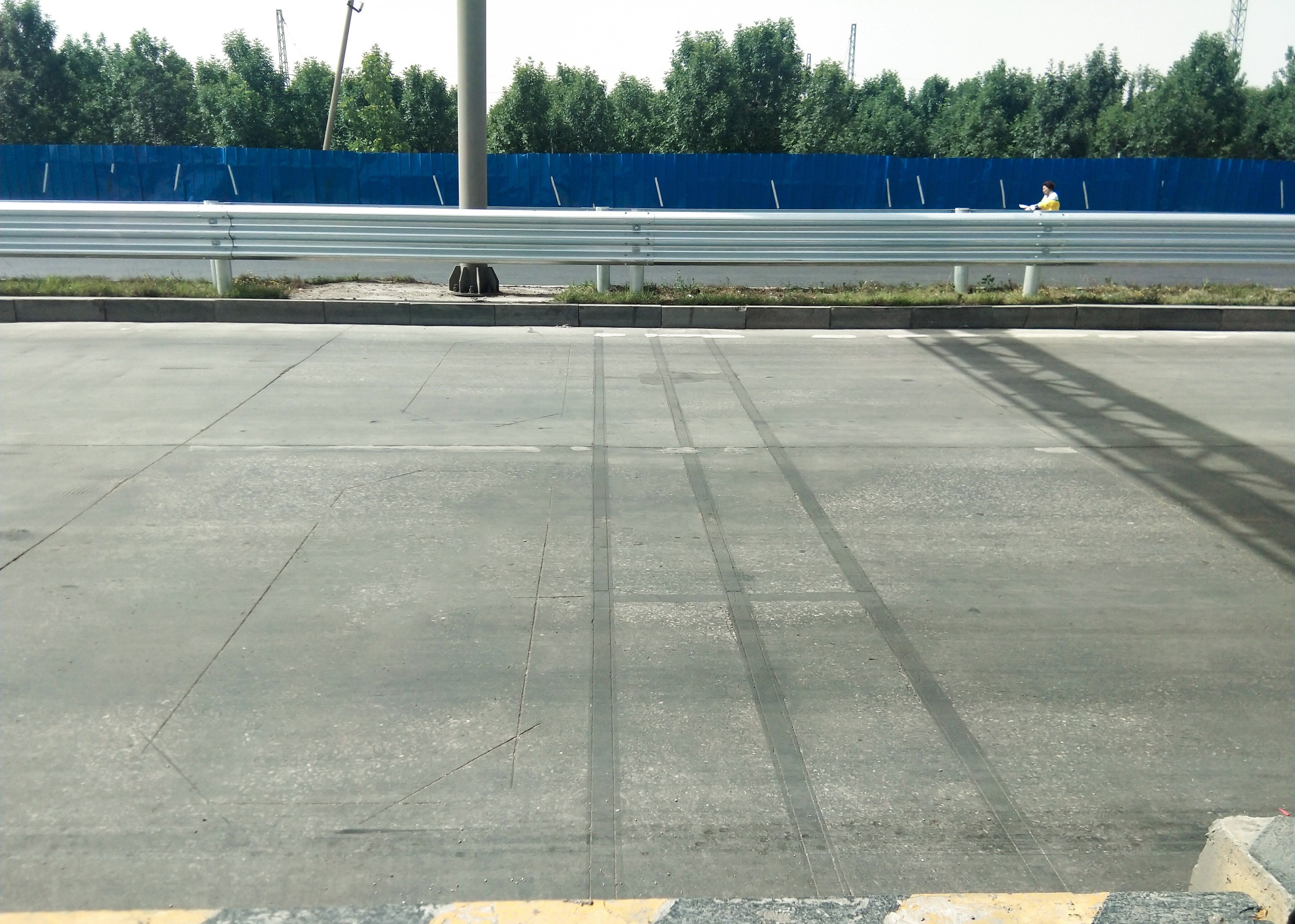

Project Case

Hengliang Bridge Weigh In Motion Scales 8 lanes Truck Axle Scales 0
