Name: High Speed 0.5-105km/H Bridge Weigh In Motion Single Axle 40T Bridge Protection
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Detail Information

Type:	Bridge Weigh In Motion	Power:	AC 110V~220V
Weighing Error:	3%~10%	Speed Rate:	0.5~105km/h
Single Axle Load:	40T	Single Axle Overload:	150%
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Level:	IP68
Highlight:	Bridge Weigh In Motion Single Axle 40T , 105km/H Bridge Weigh In Motion , Bridge High Speed Weigh In Motion

Product Description

Single Axle 40T High Speed Dynamic Bridge Protection Weigh In Motion System

Product Function

Install an automatic non-stop detection system for overloaded vehicles in front of the bridge. When the vehicle passes through the detection point, the detection system will detect the vehicle model, speed, number of axles, axle load, total weight, license plate number, vehicle picture, driving direction, lane number and monitoring process of the vehicle, which have no impact on normal traffic.
If the vehicle exceeds the standard, the ministry can issue the information of the number of illegal vehicles on the bridge. If the vehicle exceeds the standard, the ministry can set the information of the number of illegal vehicles on the bridge. If the vehicle exceeds the standard, the ministry can set the information of the number of illegal vehicles on the bridge. If the vehicle exceeds the standard, the ministry can also set the information of the number of illegal vehicles on the bridge. If the vehicle exceeds the standard, the ministry can set the information of the number of illegal vehicles on the bridge.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

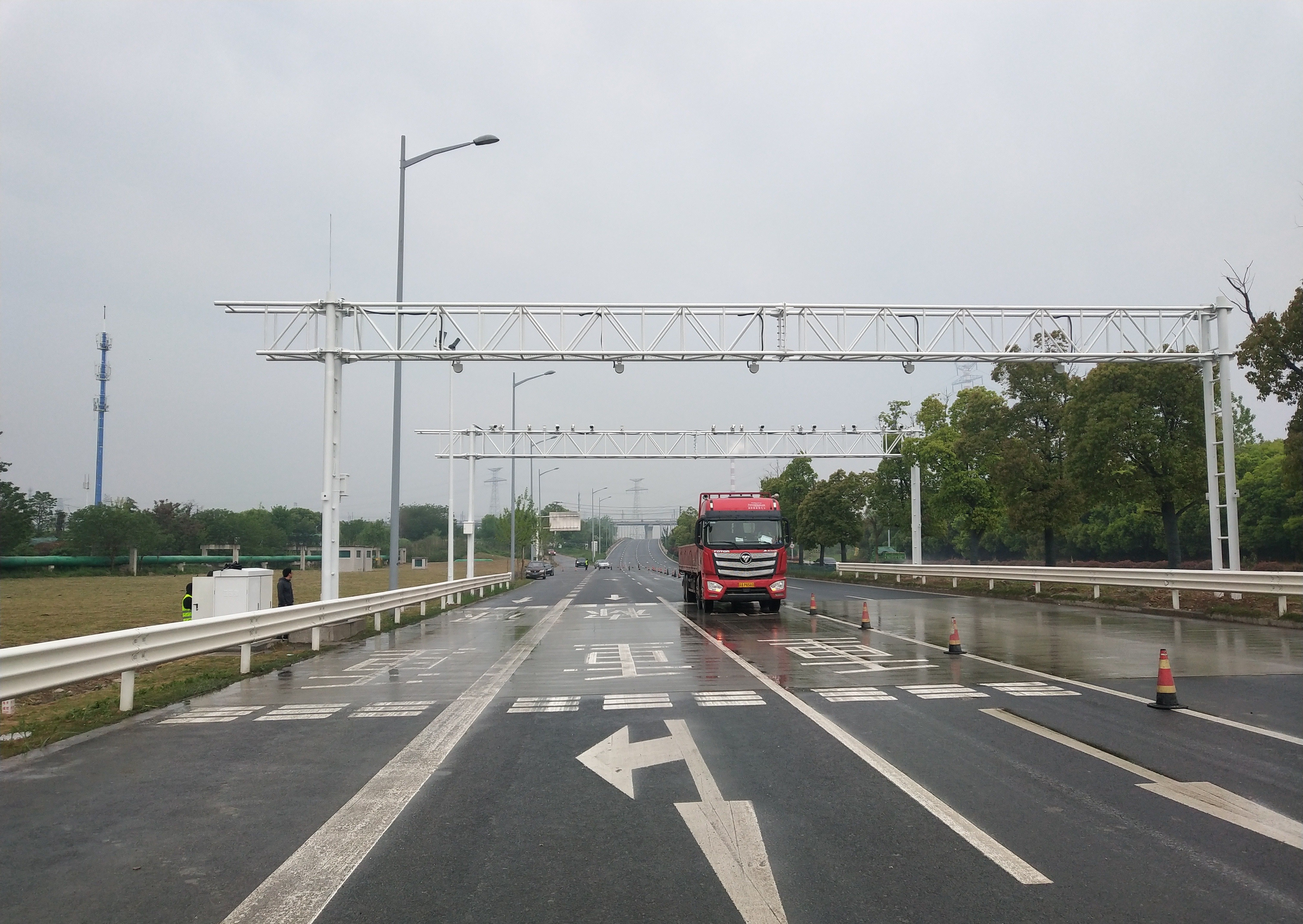

Project Case

High Speed 0.5-105km/H Bridge Weigh In Motion Single Axle 40T Bridge Protection 0

Tag:

Place of Origin:	Zhenghou`China
Brand Name:	Hengliang
Certification:	ISO
Model Number:	ZQS-40-SY

Minimum Order Quantity:	1 SET
Price:	USD 20000-35000/SET
Packaging Details:	Wooden box
Delivery Time:	5~7days
Payment Terms:	T/T
Supply Ability:	30 SET/Month
