Aluminum Axle Load 30t Data Controller Weight Module Vehicle Overload Detection

Basic Information

Place of Origin:	Zhenghou`China
Brand Name:	Hengliang
Certification:	ISO
Model Number:	HL1206

Get Best Price Contact Now

Detail Information

Name:	Weight Module	Material:	Aluminum
Power Voltage:	AC220V 50Hz	Dynamic Accuracy:	95%
Speed Range:	0.5~40km/h	Error Of Axle Base:	≤ ±100mm
Data Interface:	1RS232, 1RS485	Working Temperature:	-30~+70℃
Highlight:	Aluminum Data Controller Weight Module , load 30t Data Controller Weight Module , Data Controller Vehicle Overload Detection

Product Description

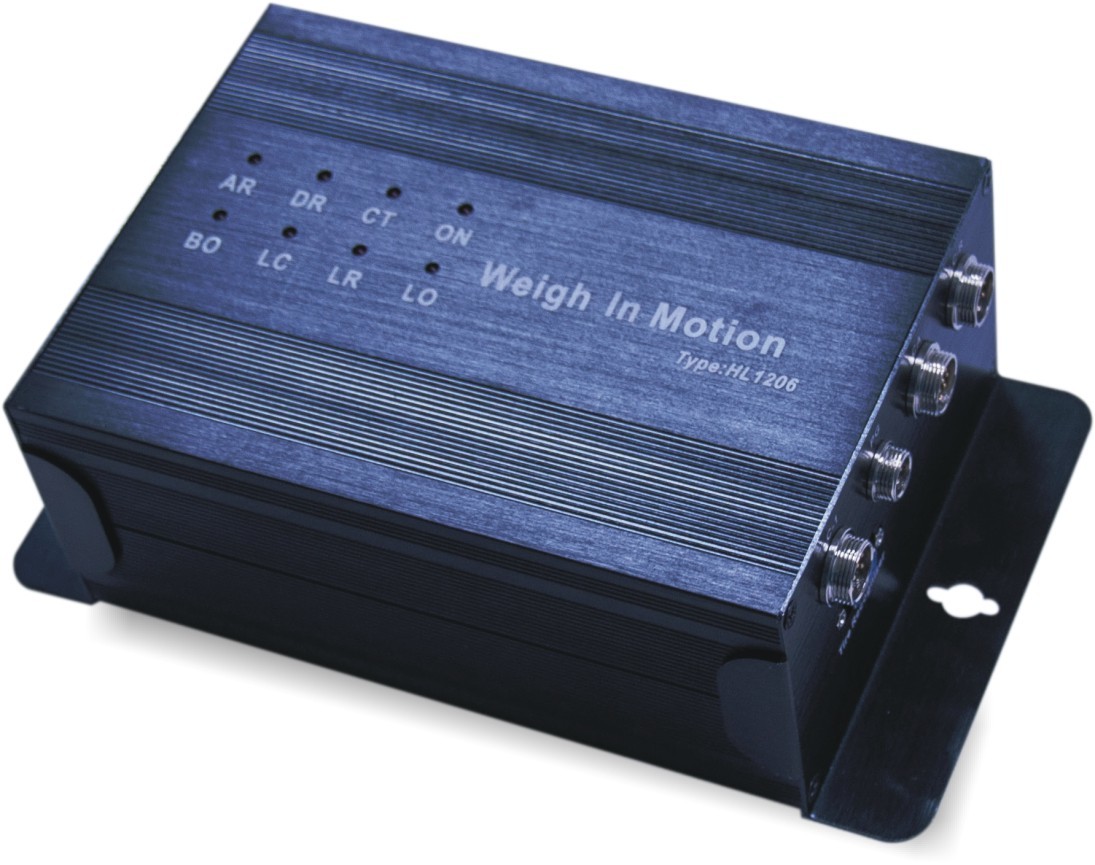

Data Controller Weight Module For Vehicle Overload Detection & Truck Scales

Product Description

Processing the input signal of charge amplifier, and forming the information of axle load, wheelbase, axle speed, and vehicle type, gross weight and so on.

Product Parameters

Working voltage	AC 220V 50Hz
The total weight of the degree of accuracy	Class 5
The load capacity	Axle load 30t, overload capacity 150%
The speed range	0.5~40km/h
The speed error	≤±1km/h
The wheelbase error	≤±100mm
The output of the vehicle information	speed, vehicle weight, axle load, axle number, wheelbase, vehicle and tire type, passing time
The shell	Aluminum Alloy shell
The data interface	1 path RS232, 1 path RS485
The working environment	the temperature range of -40 to 80℃, relative humidity range from 0 to 95%
Size	1205635mm (length * width * height)
