Single Lane 40T Vehicle Overload Detection 97% Accuracy Wim Weight In Motion

Name: Single Lane 40T Vehicle Overload Detection 97% Accuracy Wim Weight In Motion
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                    Single Lane 40T Vehicle Overload Detection, Vehicle Overload Detection 97% Accuracy, 97% Accuracy Wim Weight In Motion


Type:	Vehicle Overload Detection	Single Axle Load:	30T
Maximum Load Capacity:	45T (single Axle)	Speed Rate:	0.5~40km/h
MTBF:	≥20000h	Weighing Accuracy:	90%~97%
Temperature Range:	-45~+80℃	Protection Level:	IP68

Type:	Vehicle Overload Detection
Single Axle Load:	30T
Maximum Load Capacity:	45T (single Axle)
Speed Rate:	0.5~40km/h
MTBF:	≥20000h
Weighing Accuracy:	90%~97%
Temperature Range:	-45~+80℃
Protection Level:	IP68

Product Description

Single Lane 40T Highway Vehicle Overload Detection Management System

Product Description

Weigh the vehicles passing at low speed;
Detect the speed when the vehicle passes through the lane and the forward / backward state of the vehicle;
Carry out automatic separation of vehicles, accurately realize the separation of special vehicles such as trailers, and ensure the one-to-one correspondence between weighing and testing data and vehicles;
Form complete vehicle weighing information, including axle type, axle weight, number of tires per axle, wheelbase, total vehicle weight and other information;
Record the vehicle passing time;
Accurately and completely transmit the weighing information to the lane computer (upper computer) through the data interface;
The weighing equipment shall be capable of power on self-test, regular self-test when idle, zero correction and automatic temperature compensation;
The digital instrument display panel for detection can display the axle type, axle load and vehicle speed of each axle on the panel.

Device Configuration (Low Speed WIM System)	Quartz Sensor
	Weight Meter(Low Speed)
	Weight Module(Low Speed)
	Charge Amplifier
	Wheel Identifier Sensor
	IR Vehicle Separator
	Electrical Cabinet(Optional)

Product Parameters

Weighing error	5%~10%
Single axle load	40Ton
Max Single Load	60Ton
Speed rate	0.5~40km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Power	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

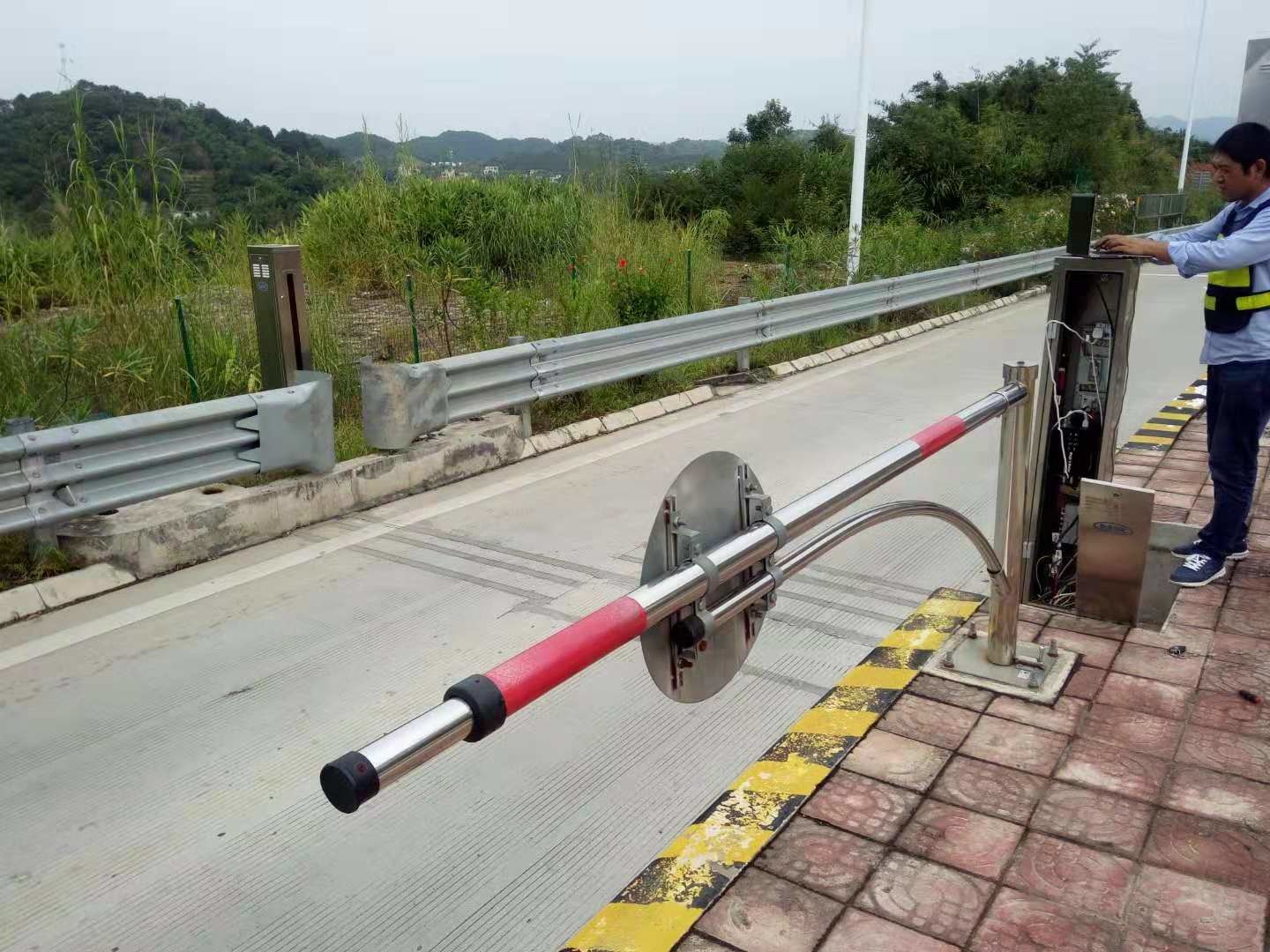

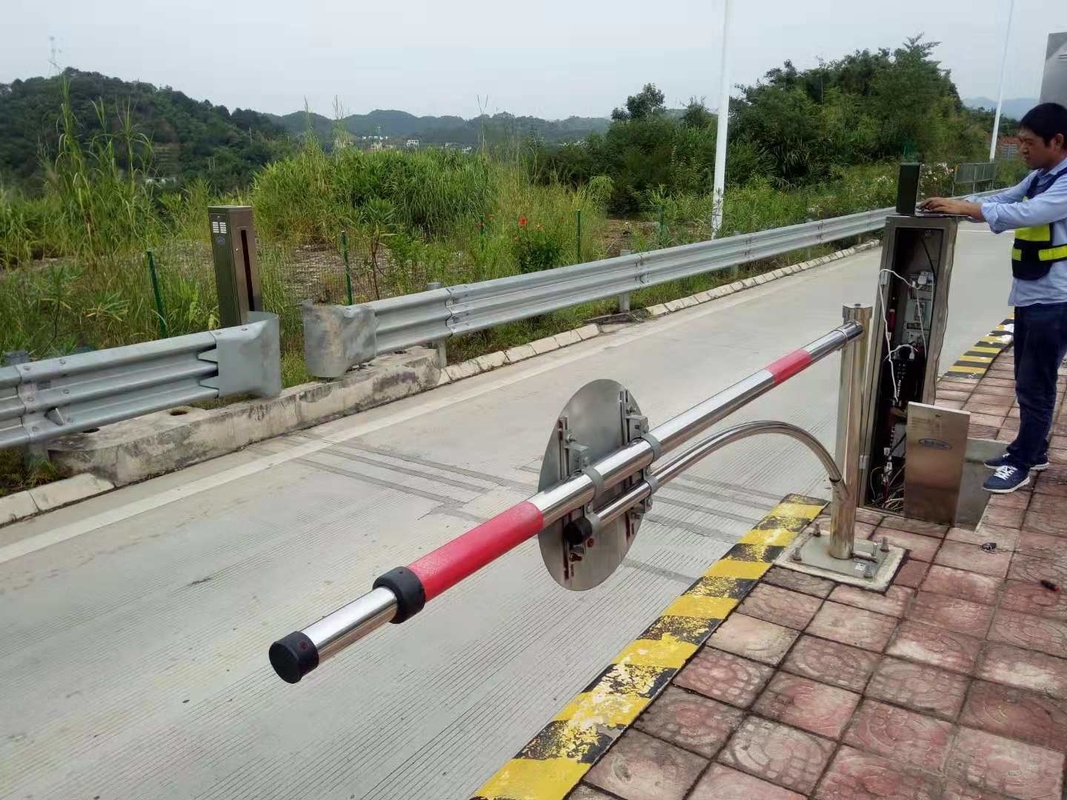

Project Cases

Single Lane 40T Vehicle Overload Detection 97% Accuracy Wim Weight In Motion 0
