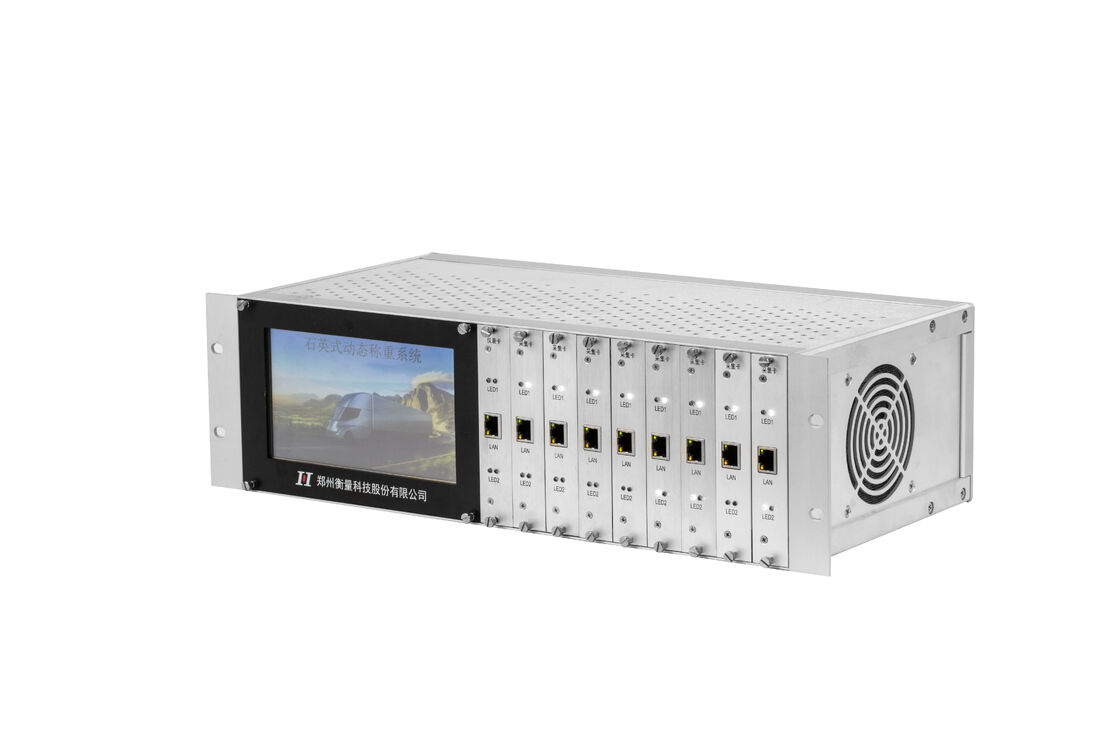

Intelligent Weighing Controller for High Speed WIM System

Product Details

Place of Origin: China

Brand Name: Hengliang

Certification: ISO

Model Number: X21

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: USD 6600-13200/PCS

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 50 PCS/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                    Intelligent Weighing digital truck scale, RS232 Digital Truck Scale, Axle Weighter Weigh In Motion Sensors


Type:	Weigh Instrument	Power Voltage:	AC220V 50Hz
Speed Rate:	0.5~105km/h	Total Weigh Error:	< ± 5%
Speed Error:	≤ ±1km/h	Error Of Axle Base:	≤ ±100mm
Display:	Monochrome,320*240 Lattice	Keyboard:	12 Thin Film Keyboard
Data Store:	10000 Vehicle Data	Number Of Lane:	≤ 8
Data Interface:	RJ45	Camera Trigger Mode:	Switch Trigger
Temperature:	-30~+70℃	Material:	AL

Type:	Weigh Instrument
Power Voltage:	AC220V 50Hz
Speed Rate:	0.5~105km/h
Total Weigh Error:	< ± 5%
Speed Error:	≤ ±1km/h
Error Of Axle Base:	≤ ±100mm
Display:	Monochrome,320*240 Lattice
Keyboard:	12 Thin Film Keyboard
Data Store:	10000 Vehicle Data
Number Of Lane:	≤ 8
Data Interface:	RJ45
Camera Trigger Mode:	Switch Trigger
Temperature:	-30~+70℃
Material:	AL

Product Description

Intelligent Weighing Instrument & Truck Scales & Axle Weighter

Product Description

After the vehicle passes through the quartz crystal sensor, the charge amplifier converts the charge signal detected by the sensor into voltage signal (0 ~ 10V), and processes the signal after conversion. When the vehicle completely passes through the sensor, the data processing controller displays the detected vehicle axle weight, axle group weight and vehicle weight on its own LED display screen. At the same time, process the vehicle type information data, such as detecting the axle type (single axle / coupling), wheel type (single wheel / double wheel on one side), vehicle driving speed / acceleration, and constantly detect and process the system working state and fault information data. After receiving the vehicle detection end signal sent by the ground induction coil, the data processing controller packs and automatically stores all the detection data of the vehicle in the database, and sends the detection data to the upper computer at the same time.

Product Parameters

Voltage	AC 220V 50Hz
Material	AL
Display	Monochrome,320*240lattice
Data Store	10000 vehicle data
Data Interface	RJ45
Number of Lane	≤8
Working Temperature	-40℃～75℃
Camera Trigger Mode	Switch Trigger
LengthWidthHeight	483225133mm
Function	It analyzes charge amplifier input signal, and concludes axle, wheelbase, axle speed, vehicle model, gross weight and other information
